Page 56

background image

56

746-257-B2-001, Rev. B (01/2014)

7.3

IDH4L Installation Procedure in XM2-300HP Power Supplies

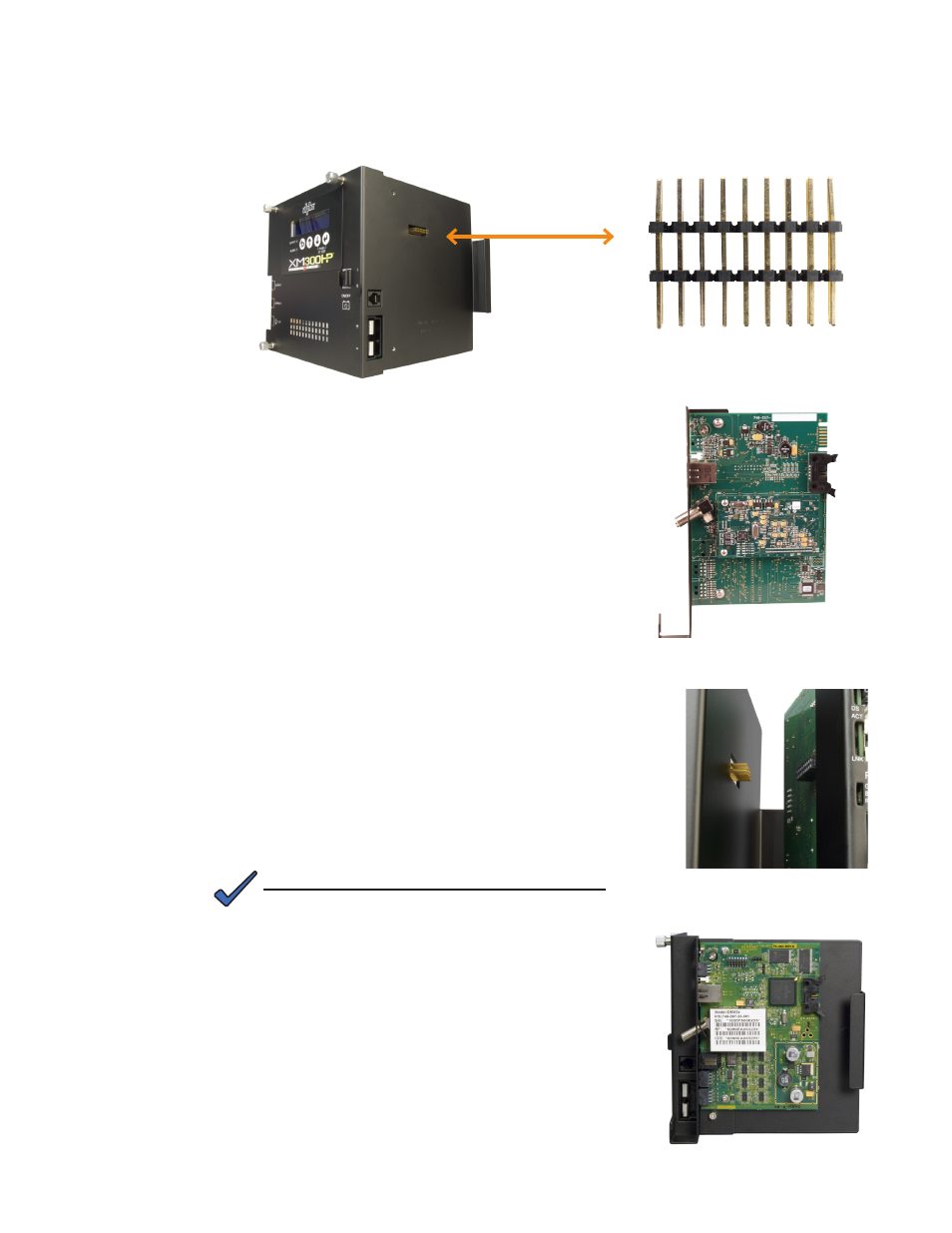

6. Plug the supplied 18-pin jumper into the header on the Inverter Module.

Fig. 7-8, IDH4L 18-pin header

(Alpha p/n 540-581-19)

Fig. 7-7, The 18-pin jumper installed

When replacing an existing IDH4L do not reuse

the existing 18-pin connector. Use the 18-pin

connector supplied with the IDH4L.

NOTE:

6

7. Attach the IDH4L to the sheet metal with the supplied

6-32 screws.

8. Line up the 18-pin jumper with the header on the

Inverter Module and connect the unit to the inverter

module.

9. Fasten the IDH4L to the Inverter Module by

tightening the two captive screws. It is recommended

that the screws be tightened alternately, a few turns

at a time so the transponder aligns in parallel to the

Inverter Module.

10. Reinstall the Inverter Module and make front panel

connections (tamper, temperature sensor, battery,

RF, etc.).

11. If not yet done, record the cable modem MAC

address from the front of the unit and report it to the

network manager for network provisioning.

Fig. 7-11, Completed assembly

Fig. 7-10, IDH4L / IM connection

Fig. 7-9, IDH4L attached to sheet metal

7.0 Installation
