Page 39
39
746-257-B2-001, Rev. B (01/2014)
4.0 Web Interface

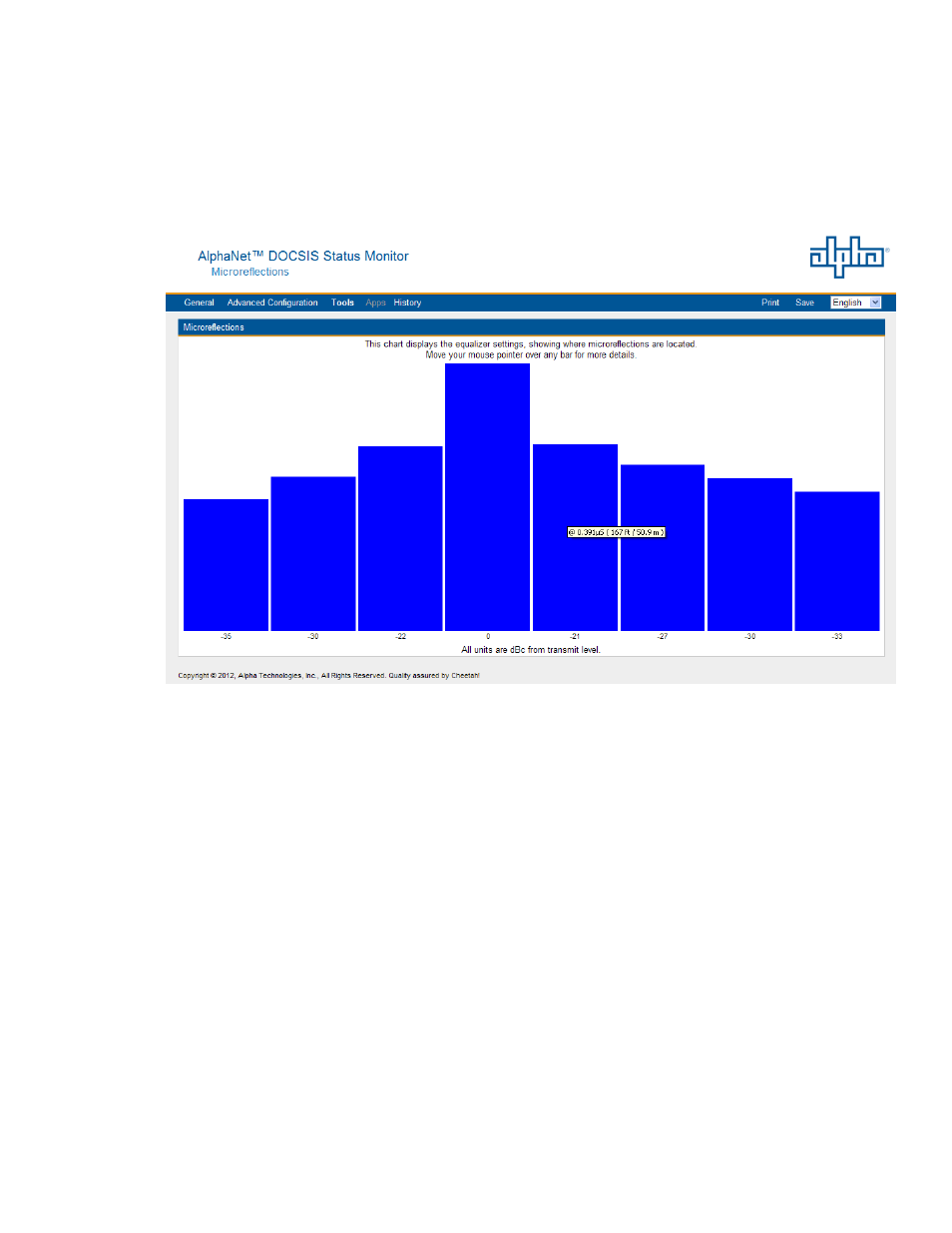

4.17 Microreflections
Select the
Tools menu to access the Microreflections page. The CMTS Adaptive equalization must
be enabled for the active upstream channel for this page to display valid data. The Microreflections
page provides information about impairments on the line and the approximate distance(s) of those
impairment(s). Placing the mouse pointer over each bar provides details about that particular reading.
Fig. 4-30, IDH4 Constellation Page
(data values shown for illustration purposes only)
