4.3

Navigating the Web Page

Once the Web page has been successfully accessed, the operator is able to select a link on the header

bar and the page specific to the topic will open enabling real-time data to be observed.
See Fig. 4-7 for IDH4 Series navigation bar items.

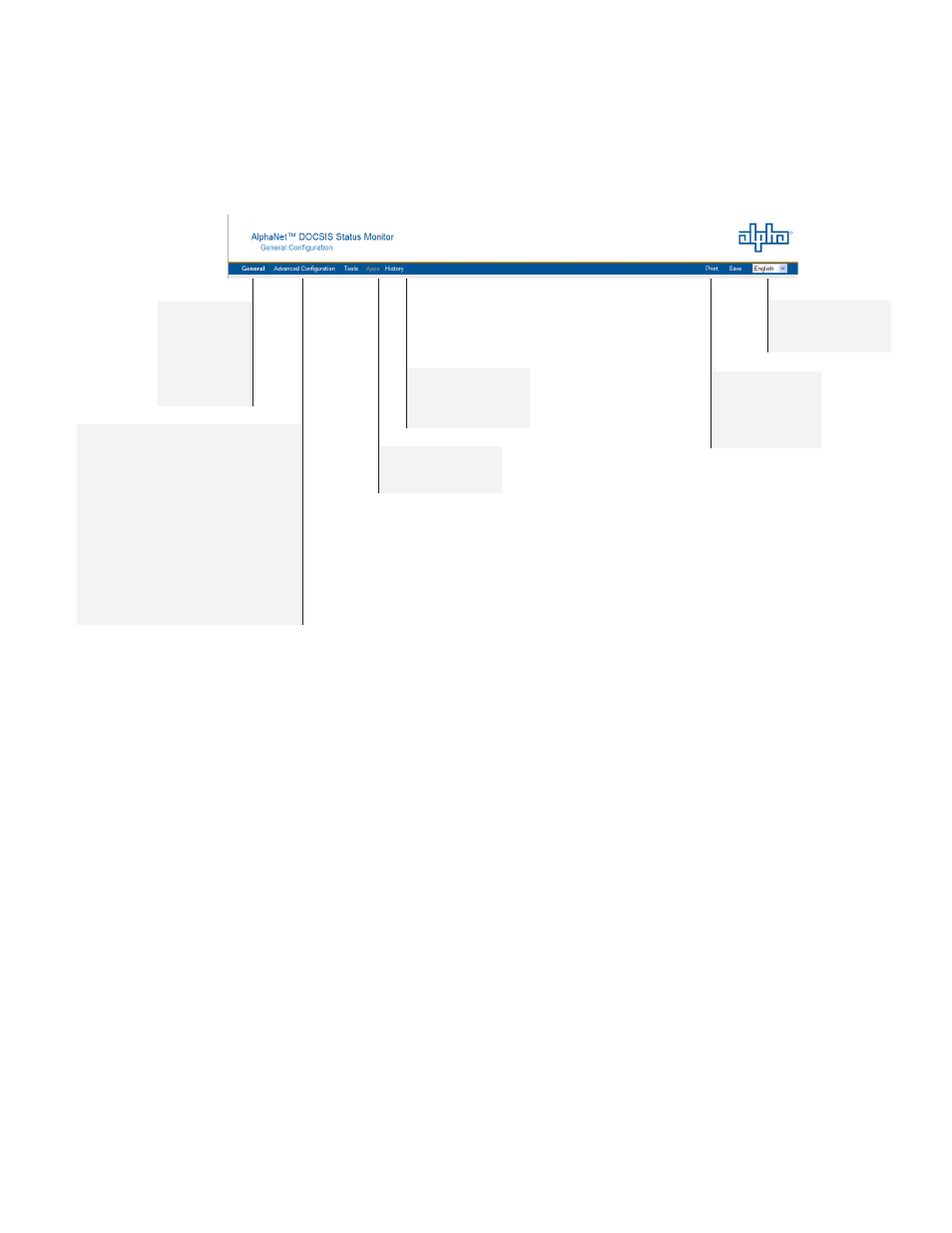

Fig. 4-7, IDH4 Series Navigation Bar Items

4.0 Web Interface

Commonly used

parameters for

quick diagnostics

of Power Supply,

Communications,

Batteries and

Generator.

Communications: Comprehensive

communications diagnostic parameters
Power Supply: Comprehensive Power

Supply configuration and configurable

parameters
Generator: Comprehensive Generator

configuration and diagnostic parameters
IO - Environment: Status and configuration

of Tamper polarity and external I/O devices
HMS Alarms: Status of SCTE-HMS active

alarms, alarm history and alarm threshold

settings.

Sends the contents

of the selected

Web page to the

computer’s default

printer.

The Web page content

will be displayed in the

selected language

Modem Log: Web page

representation of the

DOCSIS modem event

log.

Apps menu is not

accessible for the XM2

CableUPS.
