0 battery sense wire kits, 1 36v single and dual strings, Fig. 8-1, 36v system, single string – Alpha Technologies AlphaNet IDH4 for XM2 and XM2-300HP Series - Technical Manual User Manual

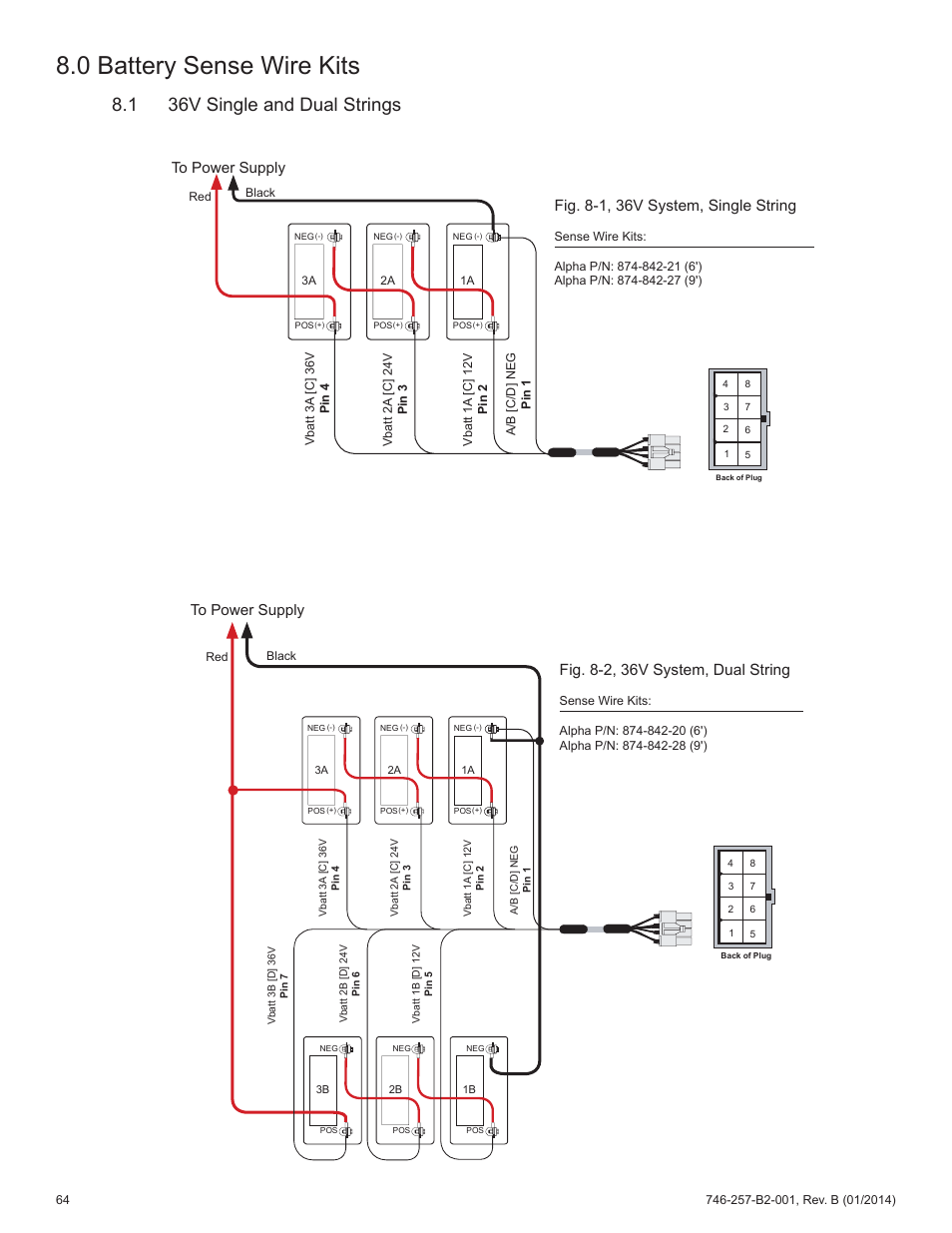

Page 64: Fig. 8-2, 36v system, dual string
