0 installation, 7 front panel connections, 6 connecting the rf drop – Alpha Technologies AlphaNet IDH4 for XM2 and XM2-300HP Series - Technical Manual User Manual

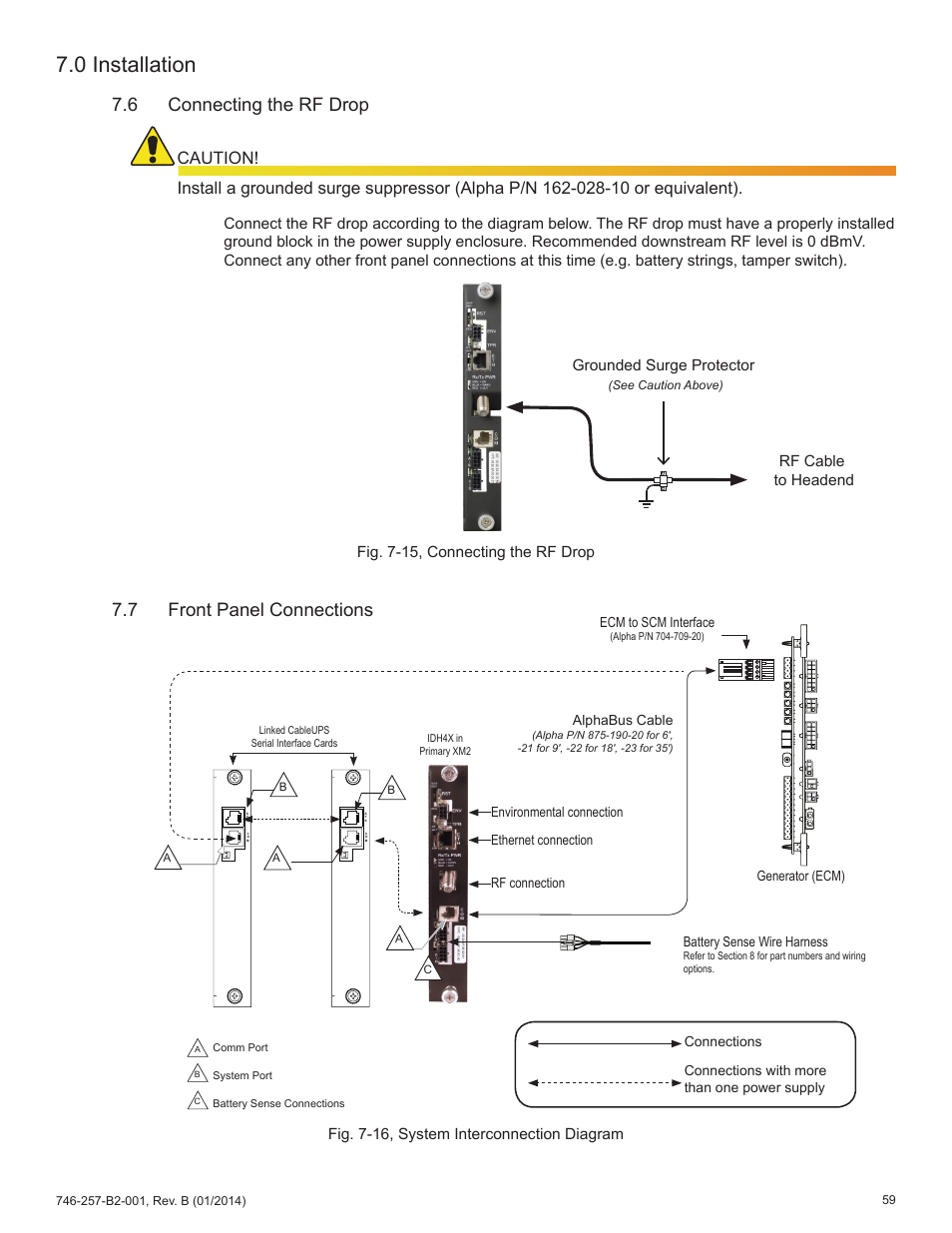

Page 59: Fig. 7-16, system interconnection diagram, Rf cable to headend grounded surge protector, Fig. 7-15, connecting the rf drop
0 installation, 7 front panel connections, 6 connecting the rf drop | Fig. 7-16, system interconnection diagram, Rf cable to headend grounded surge protector, Fig. 7-15, connecting the rf drop | Alpha Technologies AlphaNet IDH4 for XM2 and XM2-300HP Series - Technical Manual User Manual | Page 59 / 87 See also other documents in the category Alpha Technologies Equipment:
