TP-6482 8/06 66 Section 7 Disassembly/Reassembly
5. Follow the instructions in Section 3.3 to install the
generator set in the cabinet.
6. Reconnect the generator set components.
a. Reconnect the exhaust pipes at the lower left
side of the generator set.
b. Reconnect the fuel line.
c. Reconnect the wiring harnesses.
d. Reconnect the engine starting battery, negative
(--) lead last.
TP--6092
1
1. Stator
2. Rotor
3. Spacer
4. Flywheel taper
5. Engine adapter
2 3
5
4

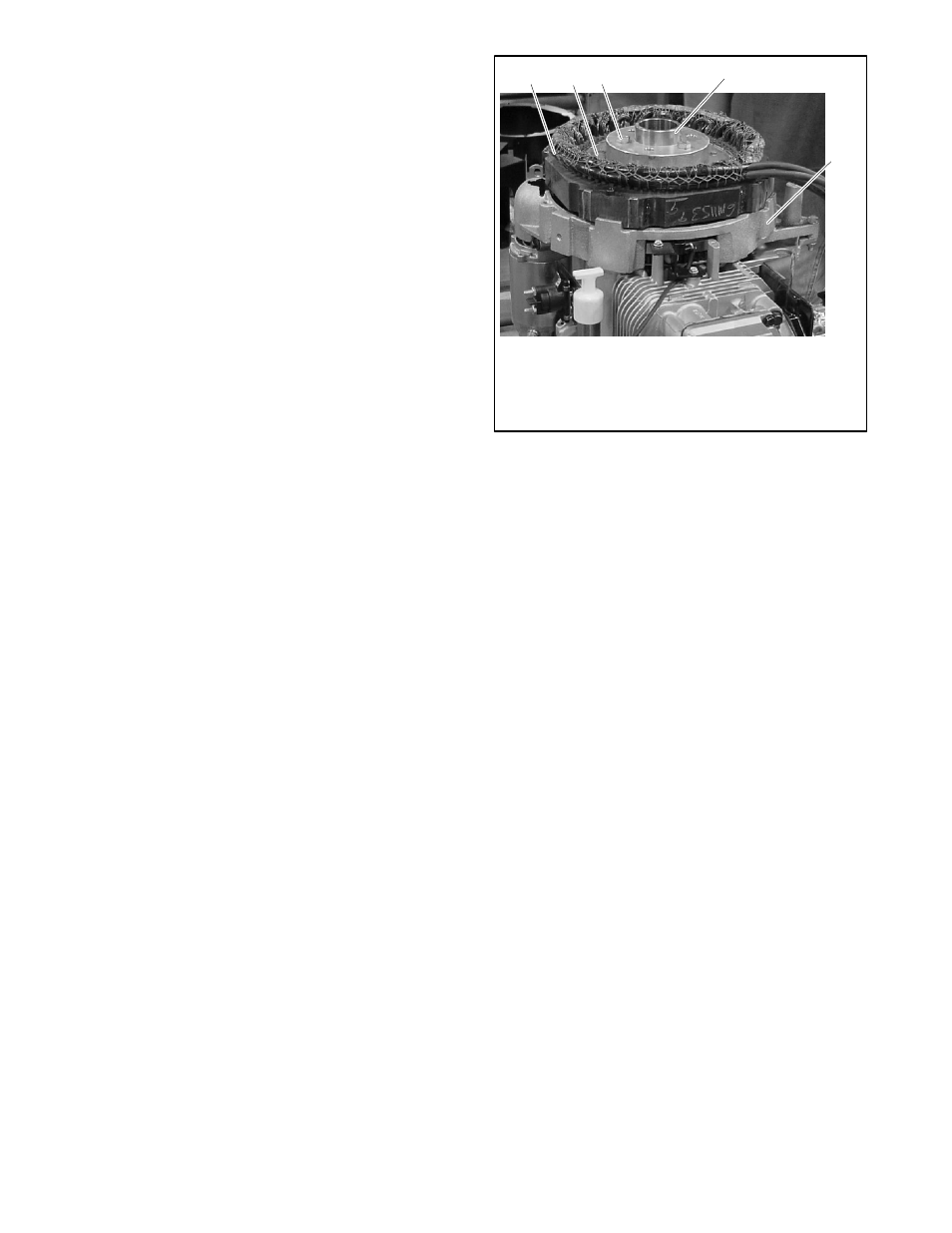

Figure 7-7 Alternator (shroud removed to show
components)
