TP-6482 8/06 19 Section 2 Operation
2.3.4 Stopping Generator Set
The following procedures describe the actions required
to stop the generator set.
Local Stopping. Move the generator set master switch
to the STOP position.
The generator set stops
immediately.
Remote Stopping. Close a remote contact between
pins 6 and 7 of connector P6 of the cabinet interface
harness. The generator set shuts down regardless of
the generator set master switch position.
2.3.5 Status Indicators
Eight LEDs on the generator set control board provide
system status and fault annunciation. LEDs indicate the
status or fault shutdowns listed in Figure 2-7.
LED Indicates
Remote
Annunciation
1 Overspeed shutdown Yes
2 Overtemperature shutdown Yes
3 Engine running status indicator Yes
4 Low oil pressure fault shutdown Yes
5 Overcrank shutdown Yes
6 Ignition energized No
7 Cranking energized No
8 Common fault indicator No

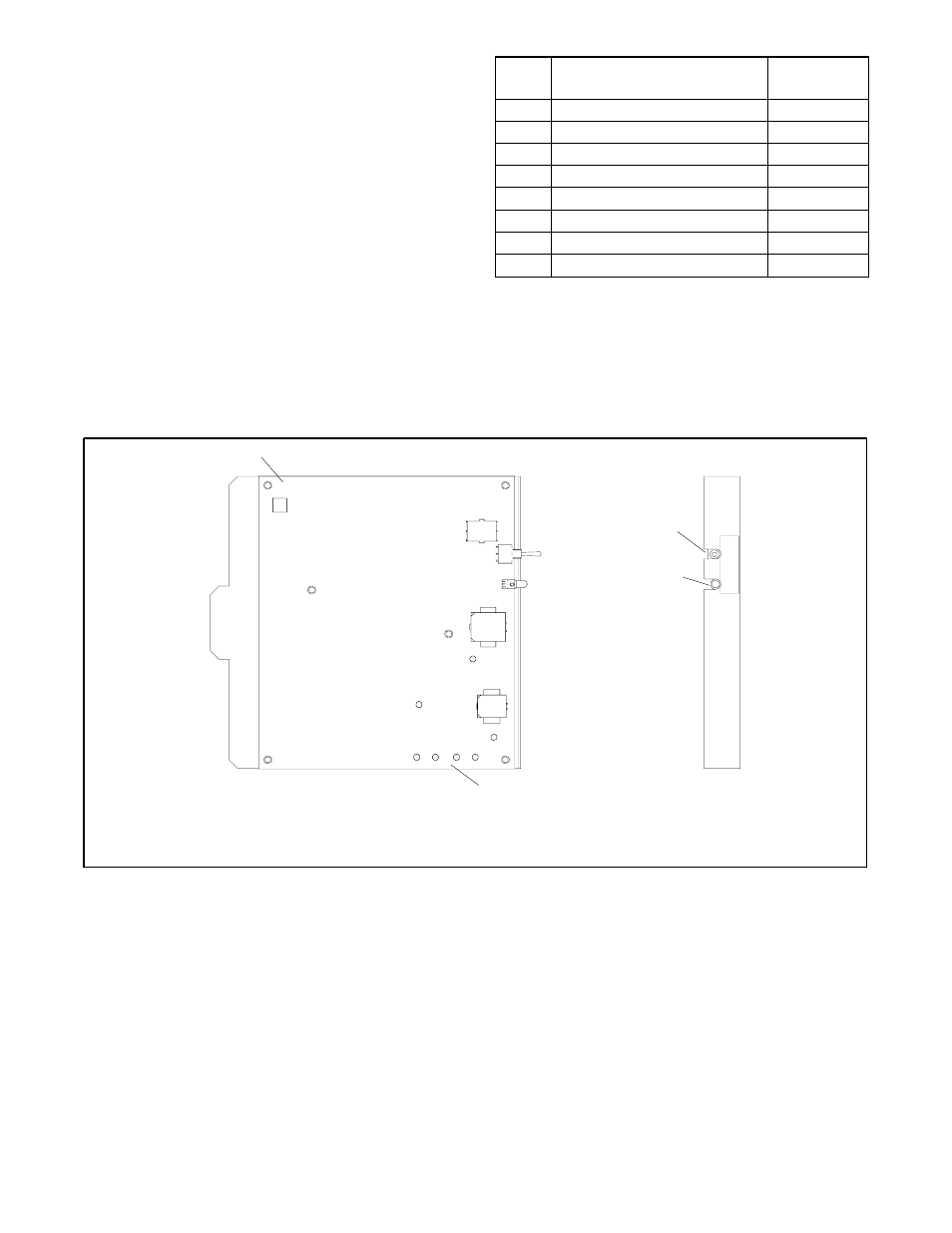

Figure 2-7 Control Board LEDs
Common fault LED8 is located on the edge of the control
board. Figure 2-8 shows the LED locations.
M-337000C-B
1
2
3
1. Control circuit board
2. Generator set master switch 3. Common fault annunciation LED
4. LEDs 1--7
P1
P2
P3
R37
FAULT
RUN
AUTO
STOP
LED1 LED3
LED6
LED7
LED5
LED4 LED2
LED8
4
Figure 2-8 Control Board LEDs
