TP-6482 8/06 13 Section 1 Specifications

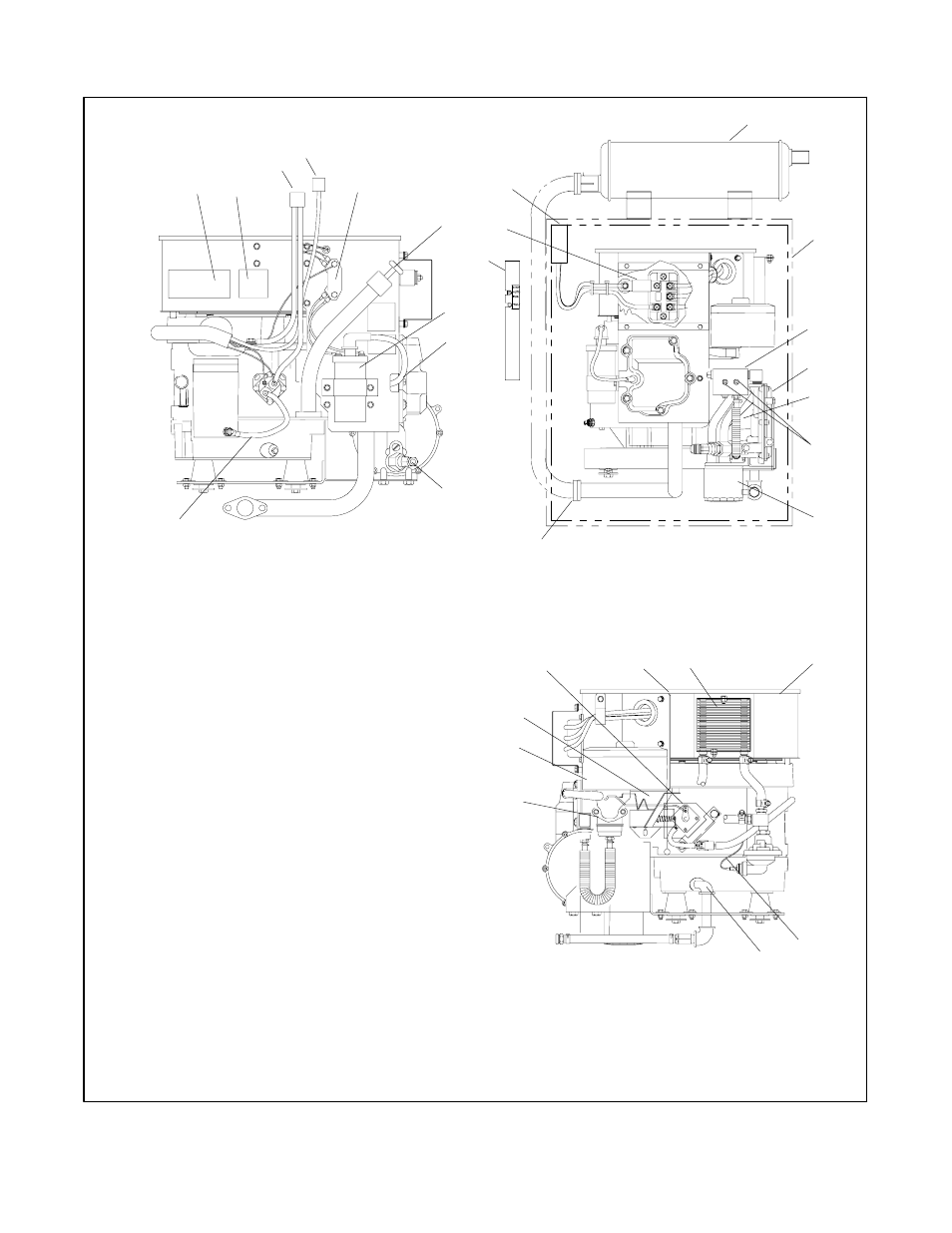

1.4 Service Views
+
--
G
NG LP
Front View
Right Side View
12
19
29
18
30
7
23
17
9
24
3
16
27
15
25
10
8
26
20
4
6
2
21
11
28
Left Side View
1. Decal, engine serial number
2. Decal, emission
3. Engine interface connector
4. Engine starting battery connector
5. Ignition module
6. Engine oil fill and dipstick
7. Ignition coil
8. Spark plug (not visible)
9. Fuel supply connection (3/4 in. NPT)
10. High engine temperature (HET) sensor
11. DC output connector
12. Muffler
13. Generator set compartment outline
14. Fuel block
15. Secondary fuel pressure regulator
16. Hourmeter location
17. Fuel metering valves (sealed)
18. Oil filter
19. Exhaust pipe connection
20. Generator set control circuit board (location may vary)
21. Fuse
22. Cooling fan (inside)
23. Engine oil cooler
24. Alternator (inside)
25. Low oil pressure (LOP) switch
26. Oil drain (3/8 in. NPT)
27. Carburetor
28. Air cleaner
29. Throttle linkage
30. Governor
14
22
GM14140B-AL
5 1
13
Figure 1-4 COM5 Service Views
