14 Configuration of the web server
19
14.2
Overview

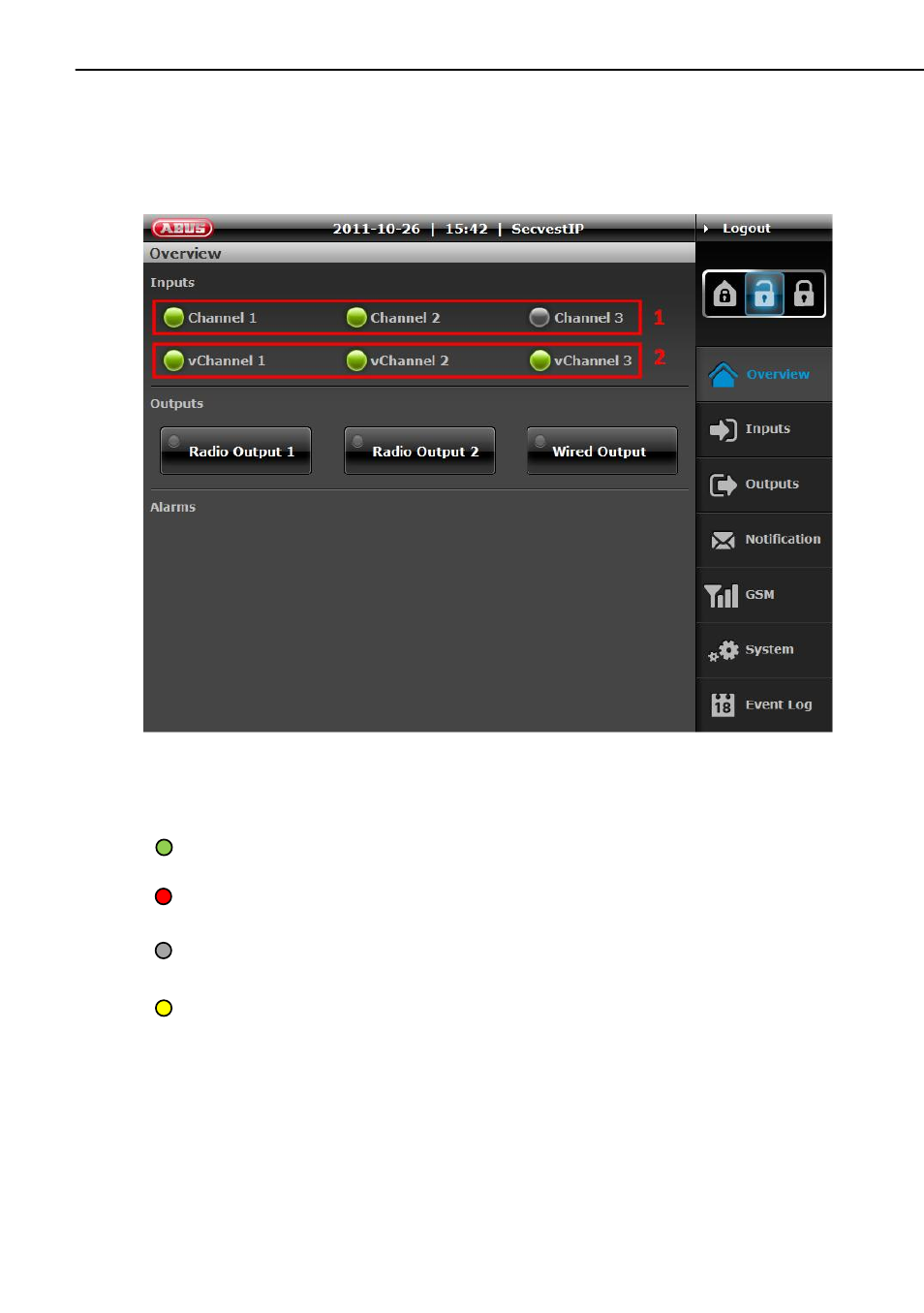

The “Overview” screen shows the current status of the Secvest-IP alarm centre, and
is divided into three areas:
1. Inputs:
In the Inputs area, you will see an overview of the state of the three wireless
zones (1) and three virtual IP zones (2).
The colour of the respective LED signalises the current status of the zone:
•
Green indicates that all detectors in the corresponding zone have not
been triggered or are closed.
•
Red indicates that one or more detectors in the corresponding zone
have been triggered or are open.
•
Grey indicates a deactivated or hidden zone, or a zone where no
detectors are connected.
•
Yellow indicates a fault in the connection to the virtual IP zone (vZone)
– e.g. the connection is lost to a connected PIR IP camera or an IP
alarm module.
