Page 8
8

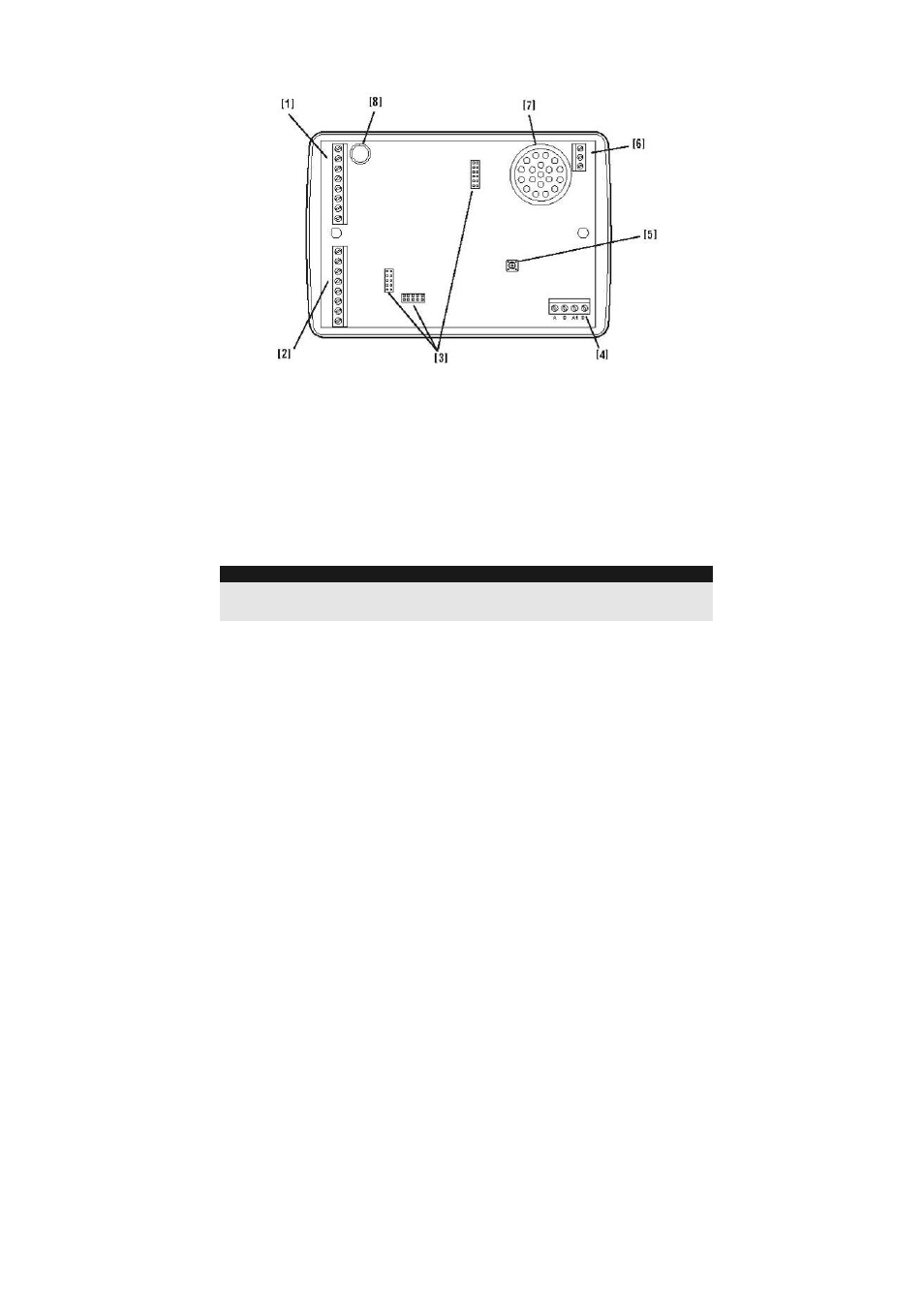

6. Verdrahtung
1. Anschlussklemmen für Eingänge A-D und Sabotageverdrahtung.
2. Anschlussklemmen für Eingänge G-H, Spannungsversorgung und
Ausgangsverdrahtung.
3. Steckplätze für das GSM-Modul.
4. Anschlussklemmen für den analogen Telefonanschluss (A/B) und
externe Geräte (A1/B1).
5. Sabotagekontakt
6. Nicht
verwendet
7. Lautsprecher
8. Mikrofon
HINWEIS:
Vergewissern Sie sich vor der Verdrahtung, dass die Spannungsversorgung
abgeschaltet ist!
6.1 Betriebsspannung
(+12V/0V)
Verbinden Sie diese Klemmen mit der Spannungsversorgung Ihrer
Alarmzentrale oder falls als Einzelgerät (Stand-Alone) betrieben, mit einer
externen Spannungsversorgung.
