Câblage – ABUS AZ6302 Terxon GSM dialer User Manual
Page 106
106
6. Câblage

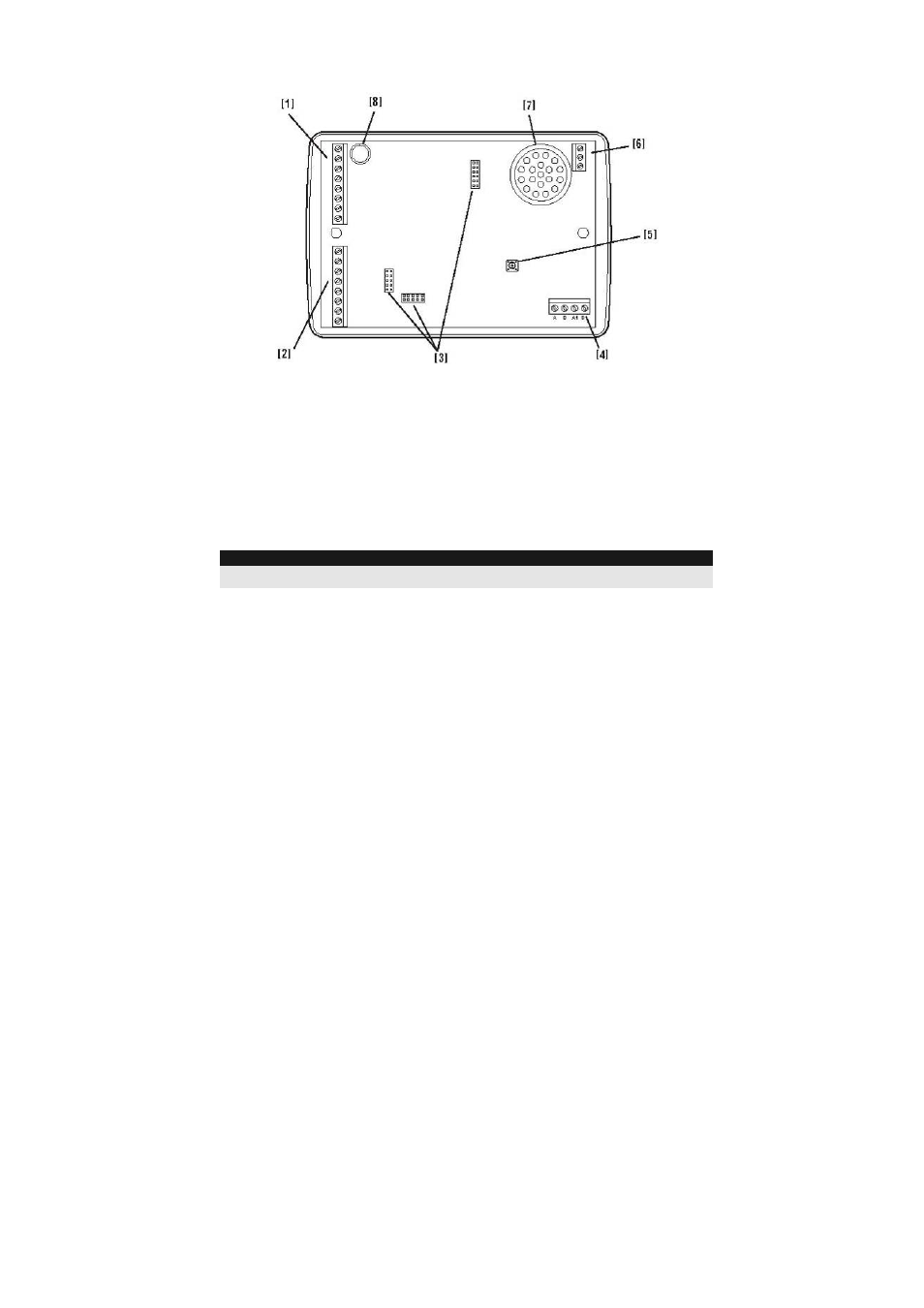

17. Bornes de raccordement pour entrées A-D et câblage de sabotage.
18. Bornes de raccordement pour entrées G-H, alimentation de tension et
câblage de sortie.
19. Postes enfichables pour le module GSM.
20. Bornes de raccordement pour le branchement téléphonique
analogique (A/B) et dispositifs externes (A1/B1).
21. Contact de sabotage.
22. Pas utilisé.
23. Haut-parleur.
24. Microphone.
CONSIGNE:
Assurez avant le câblage que l’alimentation de tension n’est pas activée!
6.1 Tension d‘exploitation (+12V/0V)
Connectez les bornes à l’alimentation de tension de votre centrale d’alarme ou
utilisez-les comme variante Stand-Alone au moyen d’une alimentation externe.
