ABUS AZ6302 Terxon GSM dialer User Manual
Page 210
210
LO
C
K
OP
E
N
L
O
C
K
O
P
E
N
LOC
K
OPE
N

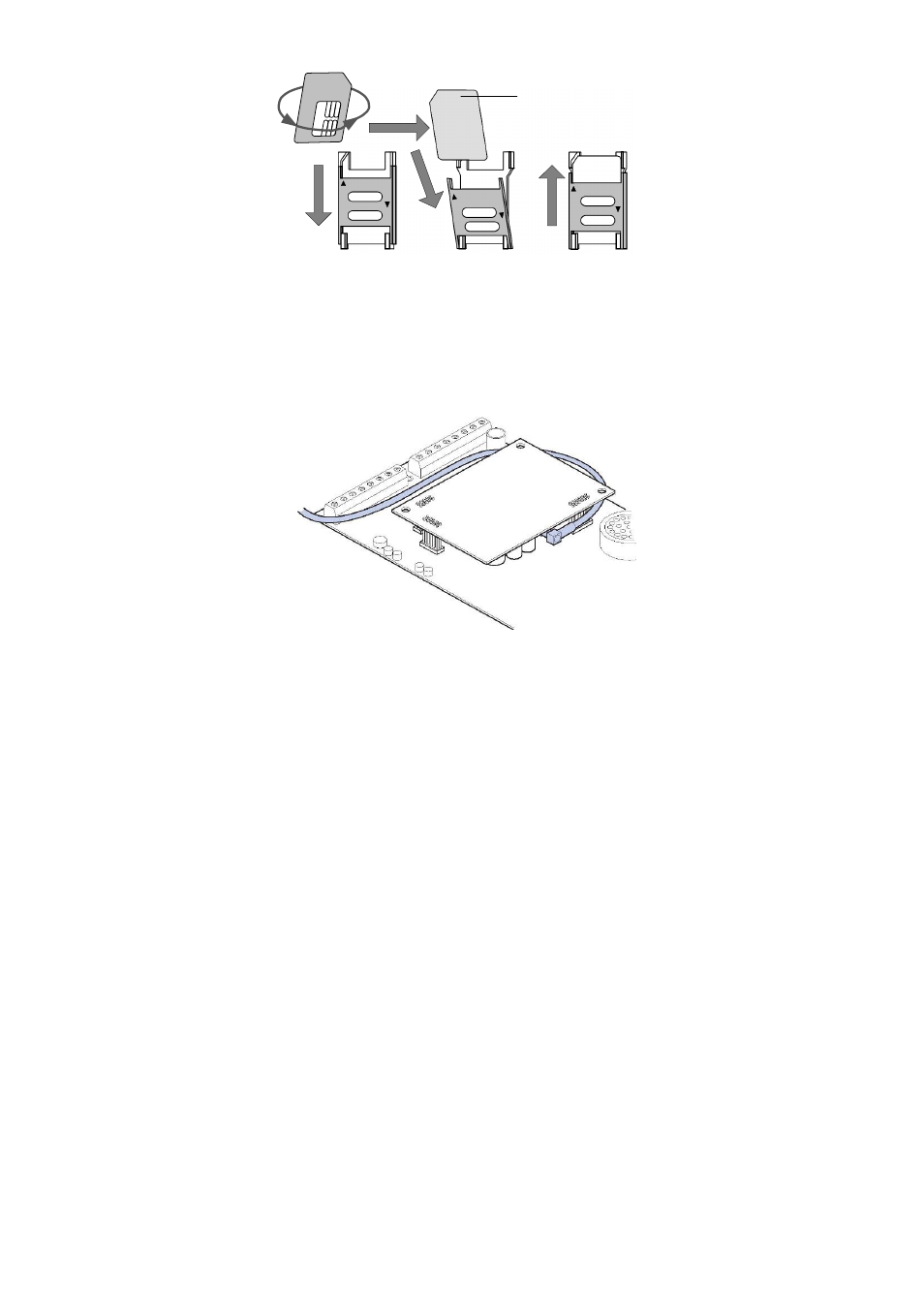

SIM Card
O
S
41. Efter SIM-kortet er sat i, skal GSM-modulet igen sættes fast på
stikpladserne på hovedprintkortet.
42. Før antennekablet på bundpladen gennem en af kabelindføringerne.
Forbind kablet med den dertil beregnede antennestikbøsning på
GSM-modulet.
43. Læg antennekablet som vist på billedet om GSM-modulet, og pas på,
at kablet ikke kommer i klemme og stadig er forbundet med GSM-
modulet, når huset lukkes.
44. Rengør de flader, som du vil anbringe antenneafslutningen på.
45. Fjern folien på antanneafslutningen, og fastgør den på den rengjorte
flade.
