ABUS AZ6302 Terxon GSM dialer User Manual
Page 10
10
6.2.2 Negative
Ansteuerung
Für eine negative Ansteuerung muss ein 0V DC-Signal an einem Eingang
anlegen.

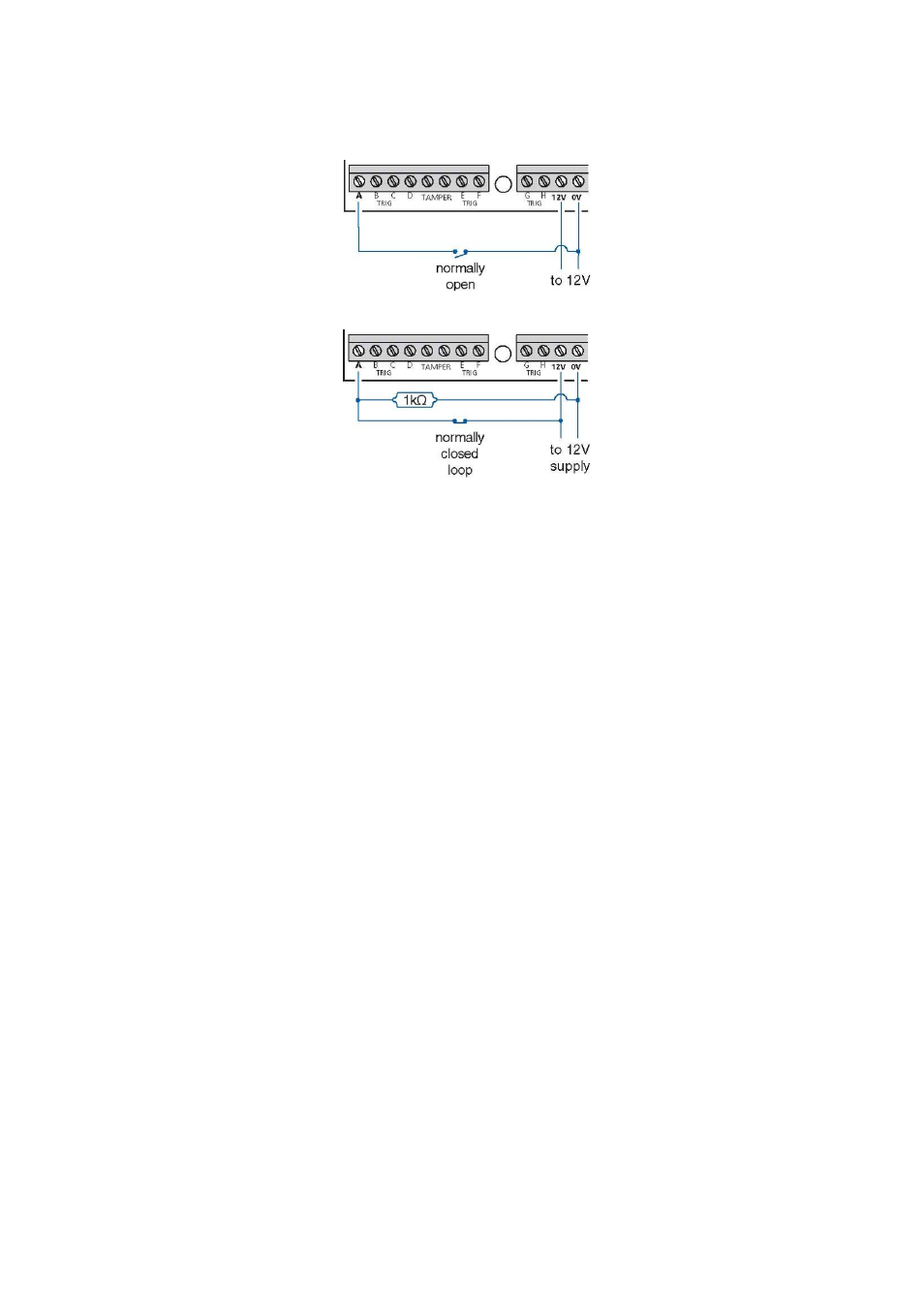

6.2.2.1 NO-Verdrahtung
6.2.2.2 NC-Verdrahtung
6.3 Sabotage
(Tamper)
Diese Anschlussklemmen werden meist mit der Sabotagezone einer
Alarmzentrale verbunden. Beim Öffnen des Gehäuses werden dabei die NC-
Kontakte des GSM-Sprachwählgeräts geöffnet und die Sabotagelinie
unterbrochen.
6.4 Ausgänge
(OP1–OP4)
Es sind vier negativ schaltende Transistorausgänge vorhanden. Bei einem
entsprechendem Ereignis schalten diese, mit einem maximalen Schaltstrom
von 100 mA, weitere externe Geräte.
