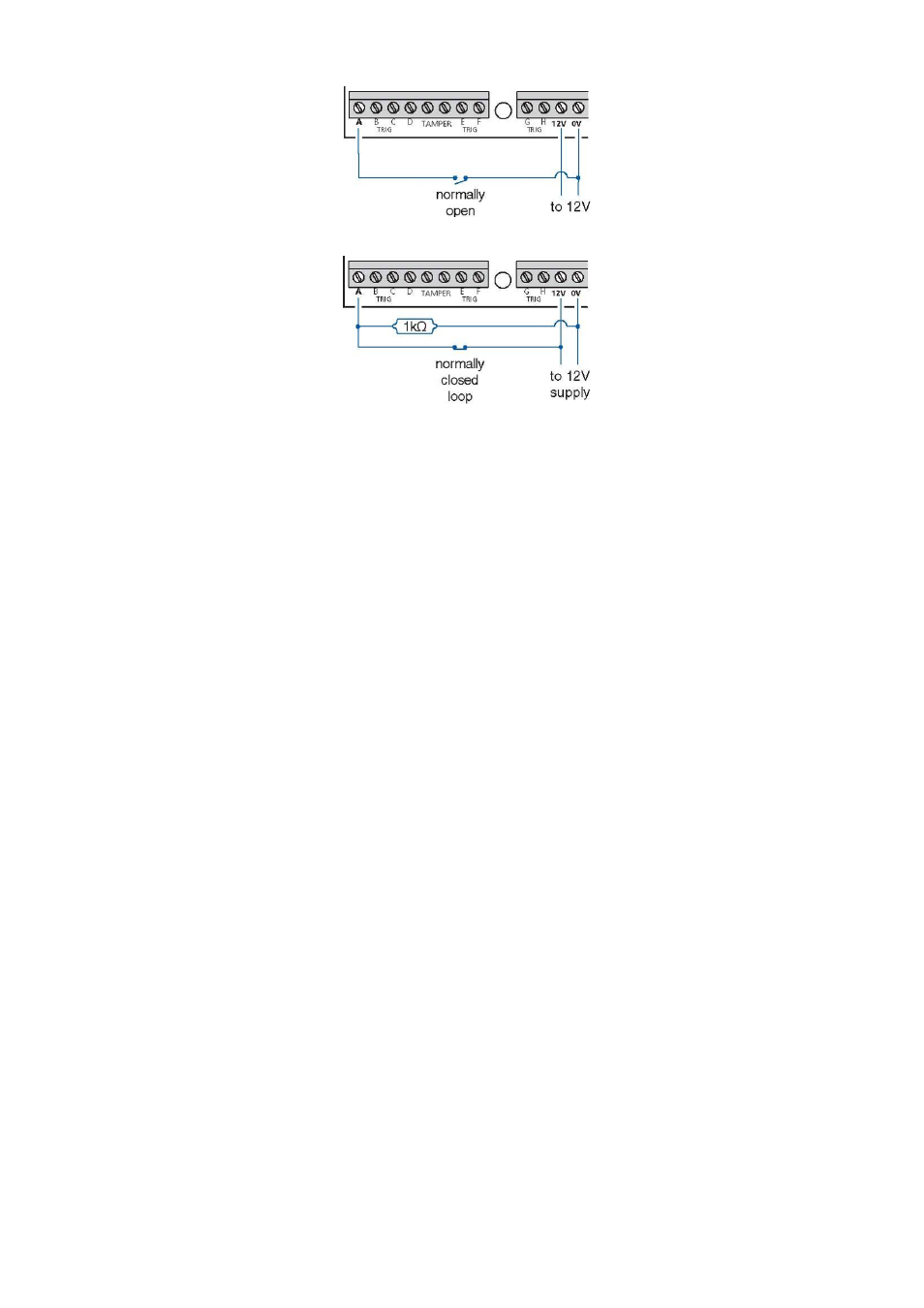

6.2.2.1 NO-ledningsføring
6.2.2.2 NC-ledningsføring
6.3 Sabotage
(tamper)
Disse tilslutningsklemmer forbindes for det meste med en alarmcentrals
sabotagezone. Under åbningen af huset åbnes i den forbindelse NC-
kontakterne til GSM taleopkaldsenhed, og sabotageforbindelsen afbrydes.
6.4 Udgange
(OP1–OP4)
Der findes fire negativt koblende transistorudgange. Ved en pågældende
hændelse kobler disse andre eksterne apparater med en maks.
tilkoblingsstrøm på 100 mA.
