ABUS AZ6302 Terxon GSM dialer User Manual
Page 64
64
LO
C
K
OP
E
N
L
O
C
K
O
P
E
N
LOC
K
OPE
N

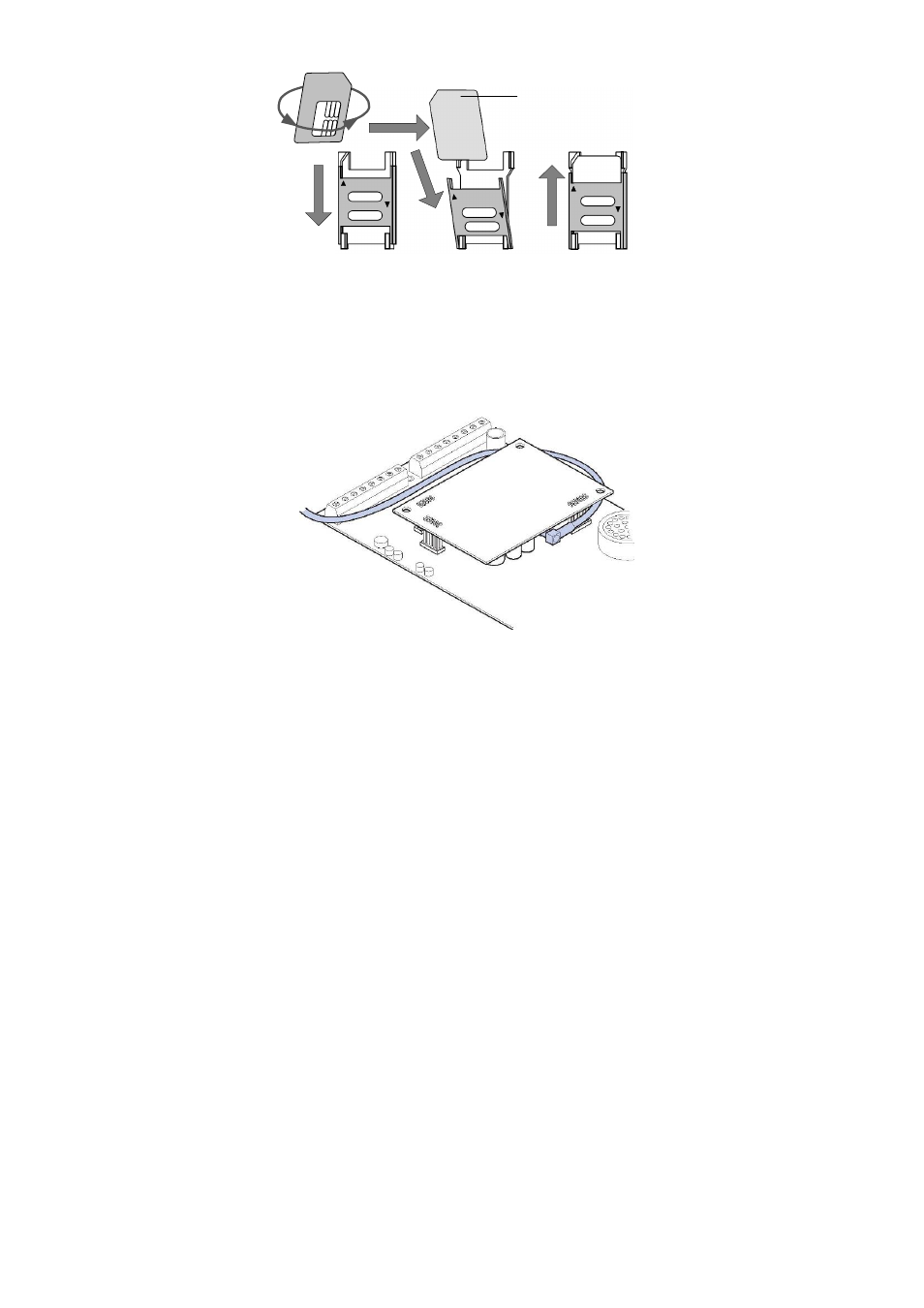

SIM Card
O
S
14. After inserting the SIM card, fix the GSM module back onto the
mainboard slots.
15. Guide the antenna cable on the base plate through one of the cable
feeds. Connect the cable with the corresponding antenna socket on
the GSM module.
16. Lay down the antenna cable on the module as illustrated. When
closing the housing, ensure that the cable is not restricted and that it
remains connected to the GSM module.
17. Clean the surface where the antenna is to be attached.
18. Remove the adhesive film on the antenna connection and fasten this
onto the clean surface.
