Page 51

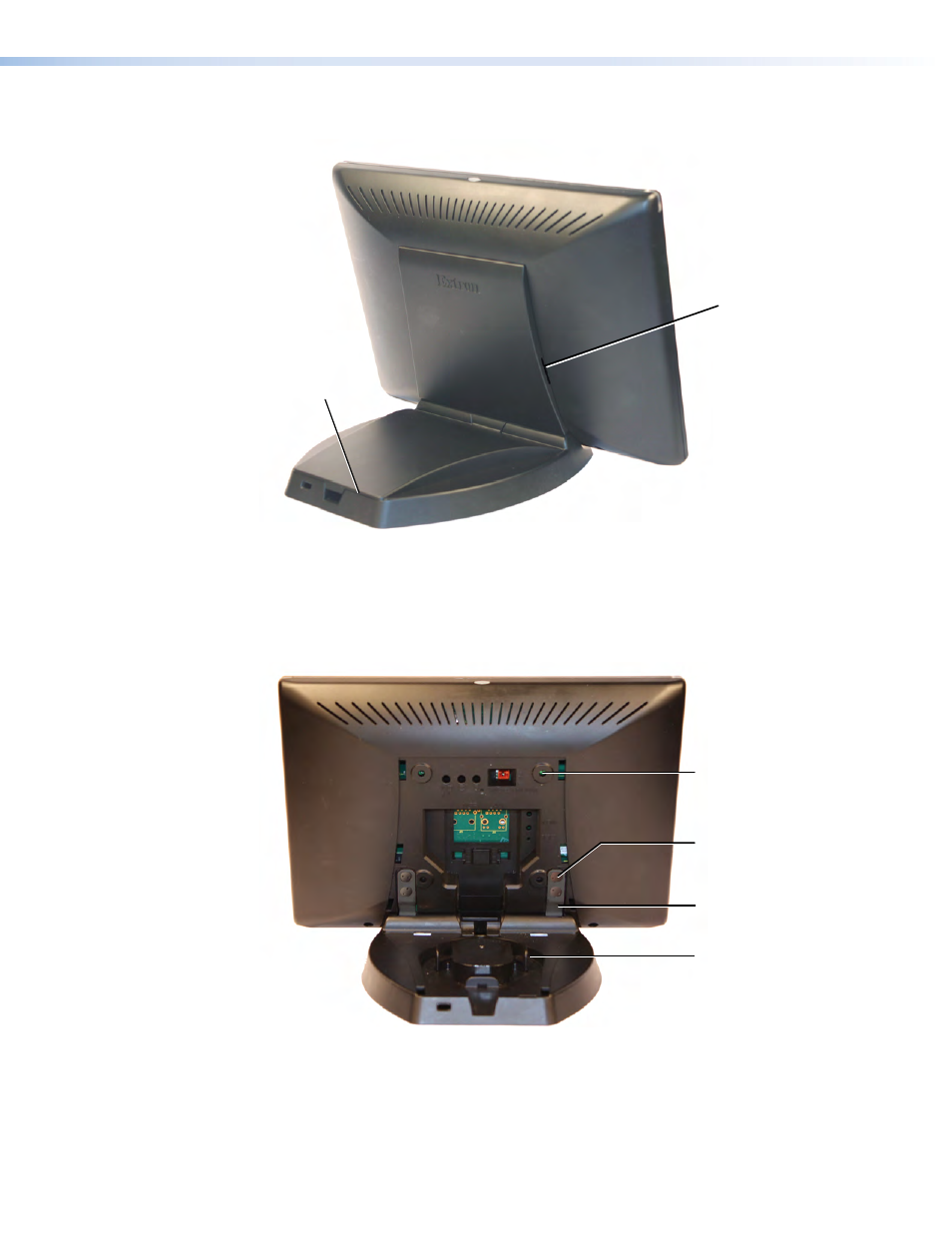

Removing the TLP 1000TV Base for VESA Mounting
Notch to Remove
Base Cover
Notch to Remove
Back Cover
Figure 45.
Removing the Back and Base Covers
1.
Remove the back cover by inserting the Extron removal tool (provided) into the
notches on each side.
2.
Remove the base cover by inserting the Extron removal tool into the notches on the
base.
Cable Runway
Hinges (2)
VESA Mounting Holes (4)
Spanner Drive
Security Screws
(2 for each Hinge)
Figure 46.
TLP 1000TV with the Base and Back Covers Removed
TLP 1000MV and TLP 1000TV • Mounting
45
