Panel Features
This section describes:
TLP 1000MV Front Panel Features and Operations
TLP 1000MV Rear Panel Features and Connections
TLP 1000TV Front Panel Features and Operations
TLP 1000TV Rear Panel Features and Connections
TLP 1000MV Front and Top Panel Features and Operations
b c f
a
d
e
d

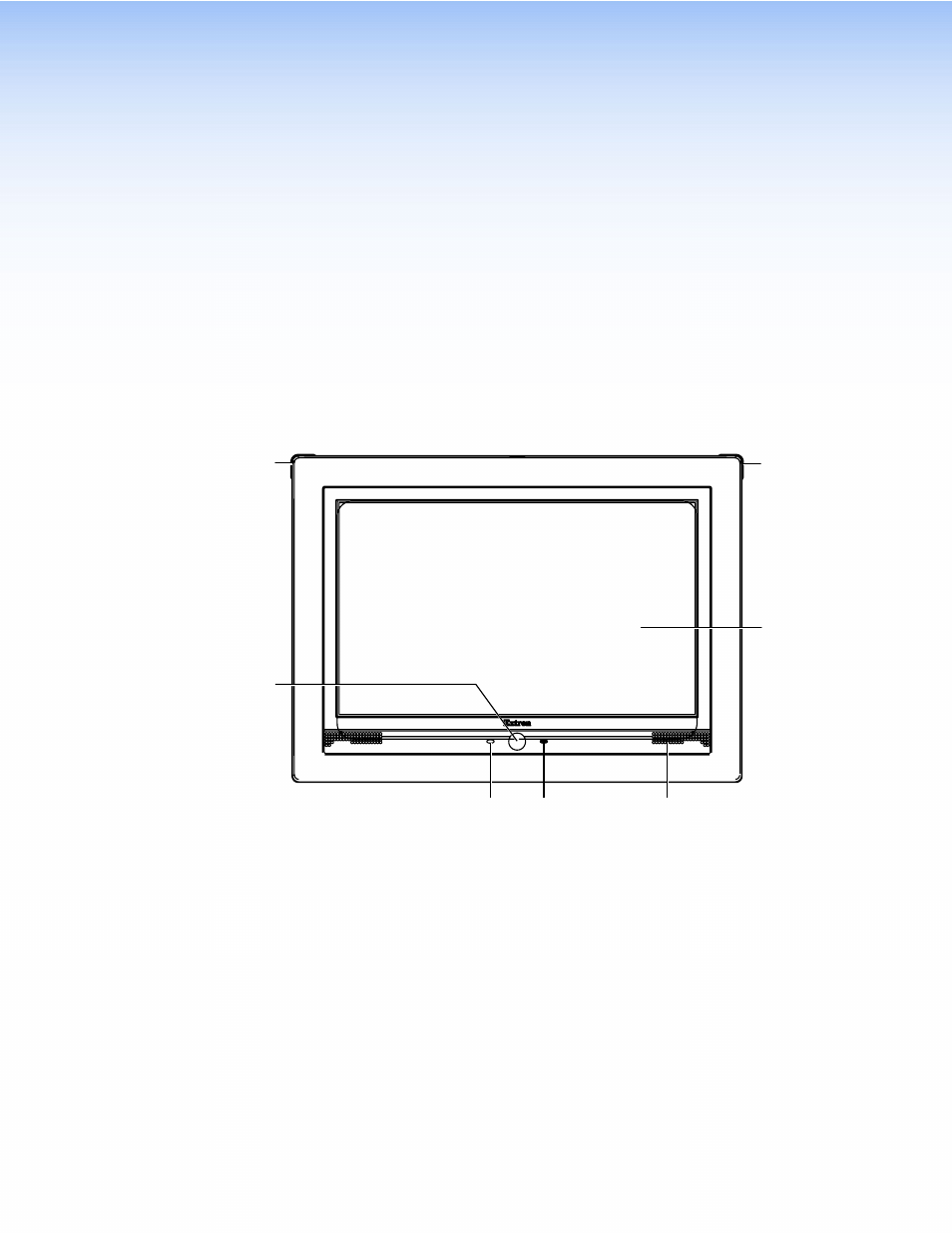

Figure 2. TLP 1000MV Front Panel
a
Motion sensor — is capped with a small Fresnel lens that focuses light onto the
sensor. When no motion has been detected for a user-defined period of time, the
unit enters sleep mode. When motion is detected by the sensor, the screen display is
restored and active.
b
Microphone — is located below the LCD screen.
c
Connection status LED — is unlit during normal operation. Blinks red if the
connection to the IP Link controller is lost.
d
Configurable LEDs (2) — two LEDs on the top corners of the panel can be
programmed by the user to provide information about the system. The LEDs can be
programmed to light red or green and have two rates (blinking and always on).
