TLP 1000TV Rear Panel Features and Connections
The TLP 1000TV has a stand that allows it to be placed on desktop. The stand can be
removed to VESA mount the unit. Both the stand and the touchpanel have removable
covers that conceal the rear panel features and protect cables that are attached to the
TLP 1000TV.
The
rear and base covers can be removed using the Extron removal tool (see page 45).
h
i
j
n
o
k
l
m
p

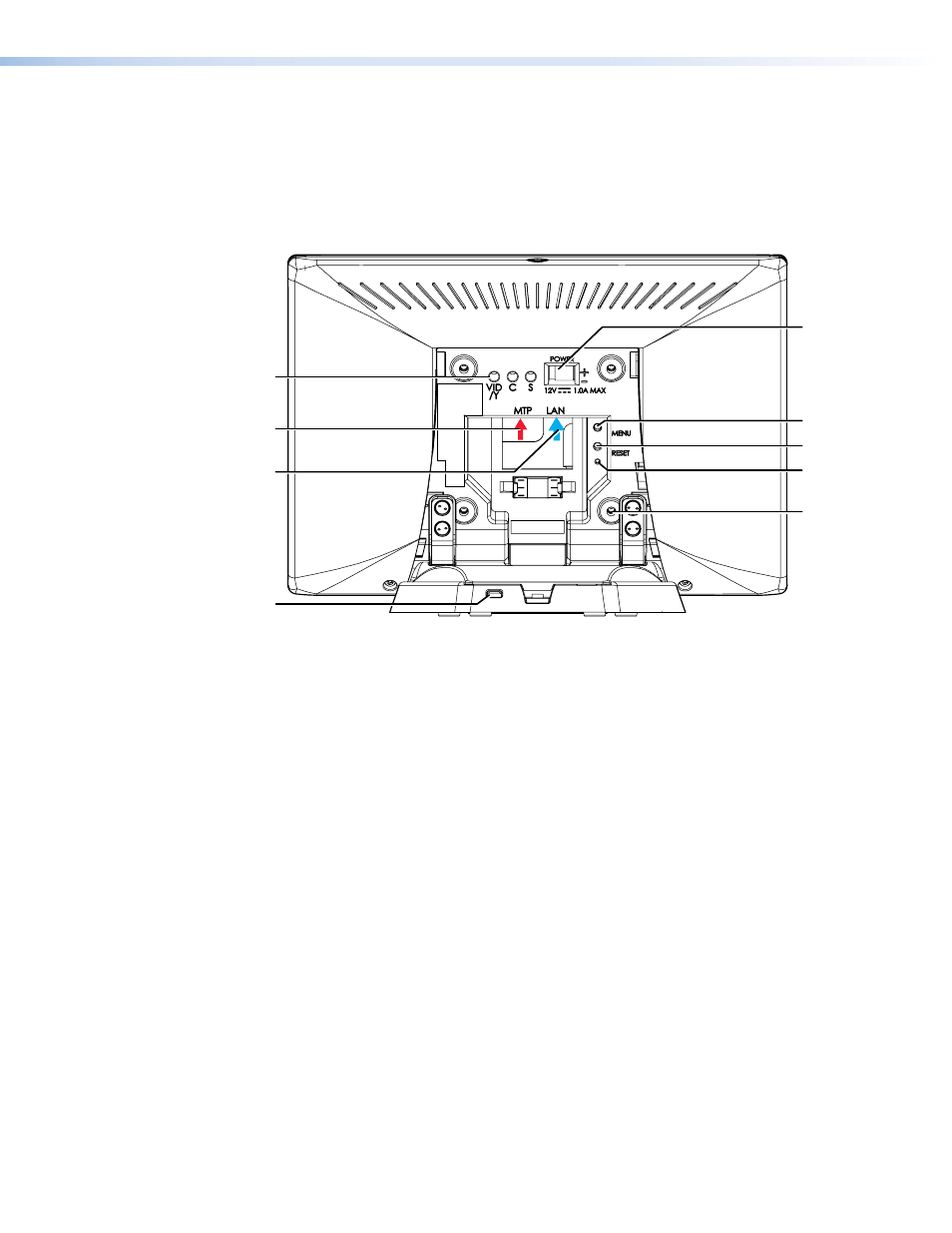

Figure 9. TLP 1000TV Rear Features
The following features and connections are available on the back panel.
h
Menu button — activates the on-screen menus for calibrating the unit (see
page 14).
i
Reset button — allows the unit to be reset in any of four different modes (see
“ Reset Modes ” on page 47).
j
Reset LED — provides feedback about the reset status when the user presses the
reset button (see “ Reset Modes ” on page 47).
k
MTP signal adjustment controls — three MTP signal adjustments are available for
S-video luminance gain (VID/Y), S-video chrominance gain (C), and sharpness (S). For
composite video signals, the gain is controlled by the VID/Y adjustment.
TLP 1000MV and TLP 1000TV • Panel Features 10
