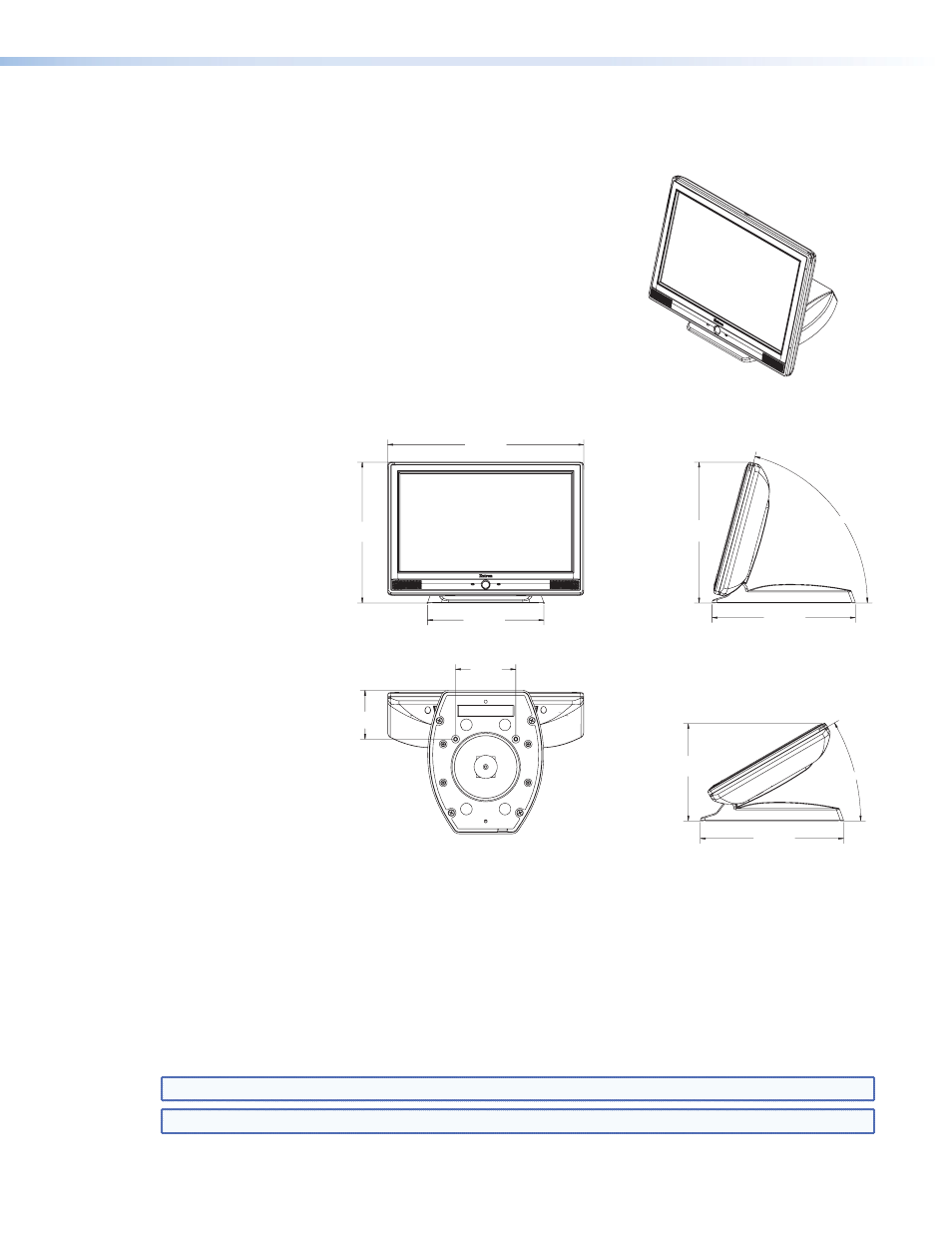

Enclosure dimensions ..................... 7.2" H x 10.0" W x 7.3" D
(18.2 cm H x 25.4 cm W x 18.6 cm D)
(Includes base. Total height depends on screen tilt. See the following diagrams.)
7.18"
(18.24 cm)
10.00"
(25.40 cm)
5.94"
(15.08 cm)
3.07"
(7.80 cm)
2.48"
(6.31 cm)
7.3"
(18.57 cm)
7.3"
(18.57 cm)
7.18"
(18.23 cm)
75° Min. Tilt
30° Max. Tilt
4.96"
(12.60 cm)
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW
TLP 1000TV
Product weight ............................... 5.2 lbs (2.4 kg)
Shipping weight ............................. 8 lbs (4 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety ...................................... CE, c-UL, UL
EMI/EMC ................................. CE, C-tick, FCC Class A, ICES, VCCI
Environmental .......................... Complies with the applicable requirements of RoHS and WEEE.
MTBF ............................................. 30,000 hours
Warranty ........................................ 3 years parts and labor; touchscreen display and overlay components are covered
for 1 year
NOTE: All nominal levels are at ±10%.
NOTE: Specifications are subject to change without notice.
TLP 1000MV and TLP 1000TV • Specifications 39
