Power connector — connect the two pole, 3.5 mm captive screw connector from
the 12 VDC, 1.0 A power supply (not provided) to the power supply socket on the
rear panel. Ensure the connections have the correct polarity as shown below.
NOTES: • Extron recommends using the Power over Ethernet power supply.
This 12 VDC, 1.0 A power supply should be used only for setup or
troubleshooting.
• If both power supplies are connected to the TLP 1000MV, the PoE power
supply takes precedence.
Power Receptacle
DC Power Cord
Captive Screw Connector
AC Power Cord
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
SECTION A–A
Ridges Smooth
Power Supply
Output Cord
A A
3/16"
(5 mm) Max.

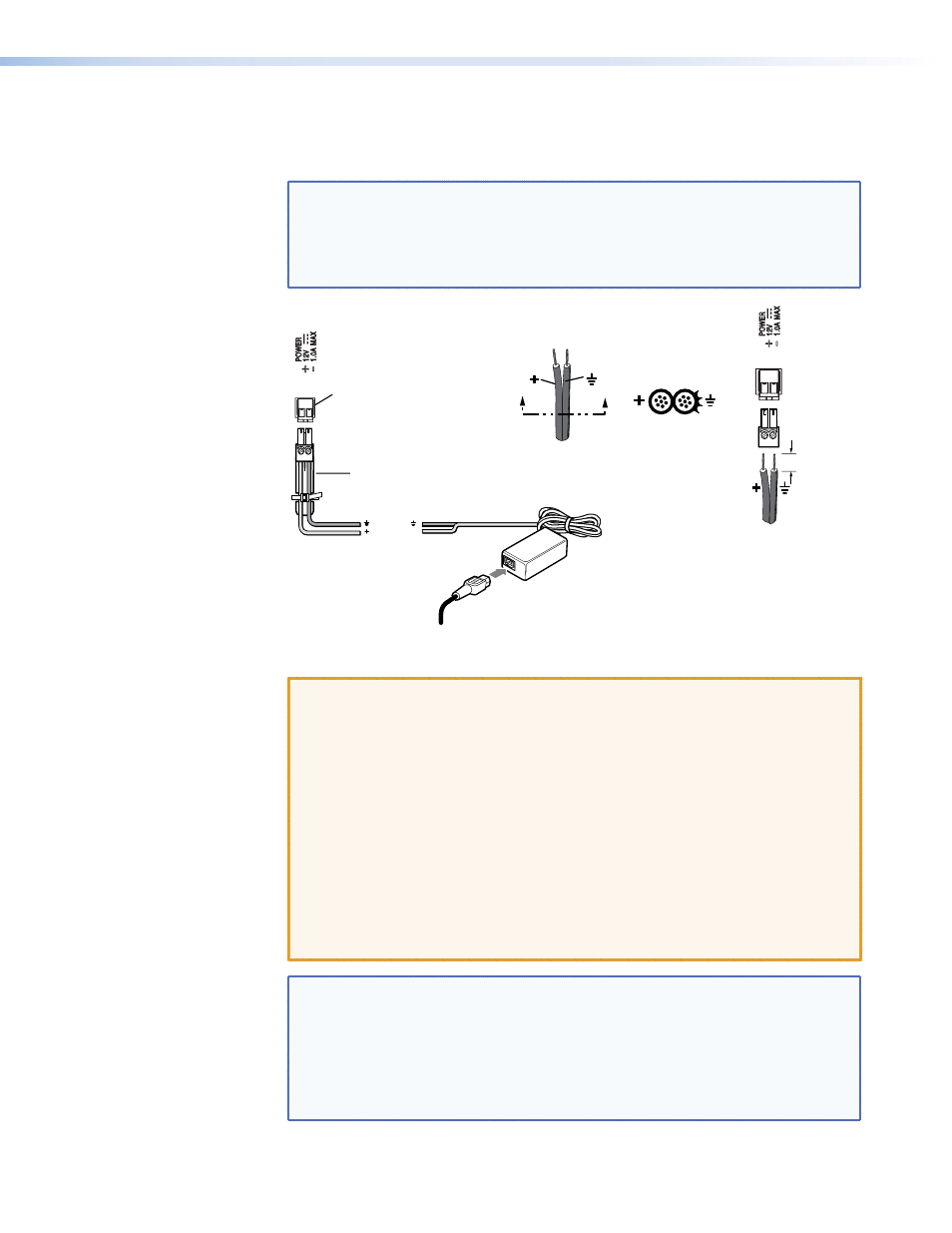

Figure 7. Power Supply Connection
CAUTIONS: • Always use a power supply supplied by or specified by Extron. Use
of an unauthorized power supply voids all regulatory compliance
certification and may cause damage to the supply and the end
product.
• Unless otherwise stated, the AC/DC adapters are not suitable for
use in air handling spaces or in wall cavities. The power supply is
to be located within the same vicinity as the Extron AV processing
equipment in an ordinary location, Pollution Degree 2, secured to
the equipment rack within the dedicated closet, podium or desk.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and
the Canadian Electrical Code part 1, section 16. The power supply
shall not be permanently fixed to building structure or similar
structure.
NOTES: • The length of the exposed wires in the stripping process is critical. The
ideal length is 3/16 inches (5 mm). Any longer and the exposed wires
may touch, causing a short circuit between them. Any shorter and the
wires can be easily pulled out even if tightly fastened by the captive
screws.
• Do not tin the wires. Tinned wire does not hold its shape and can
become loose over time.
TLP 1000MV and TLP 1000TV • Panel Features 8
