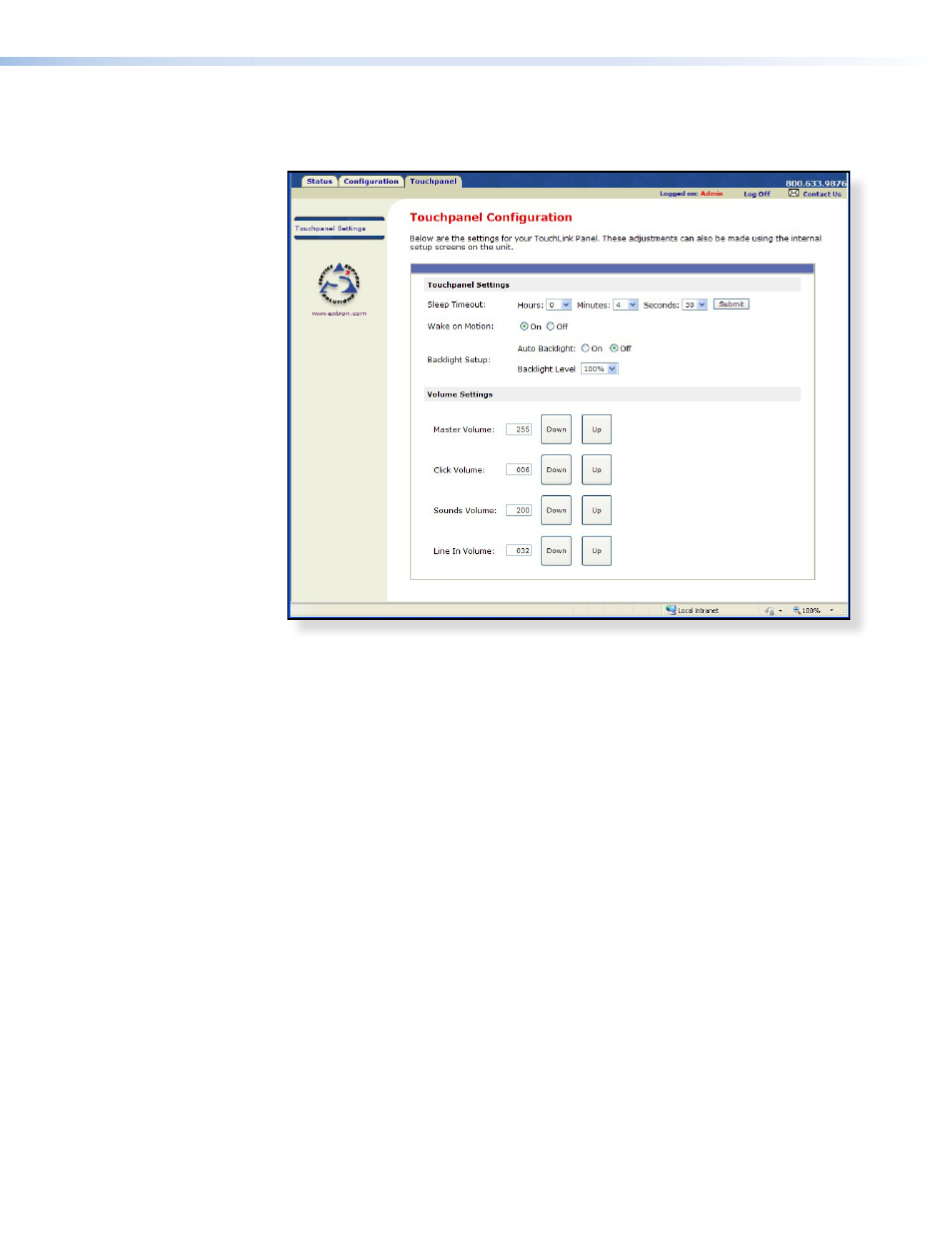

5. Click the Touchpanel tab to open the Touchpanel Configuration page, which allows
the user to alter the touchpanel and volume settings. These correspond to the main
settings (see page 14) and volume settings (see page 15) in the on-screen menus.
Figure 22. Touchpanel Configuration Page
Updating the Firmware
Firmware for both touchpanels can be upgraded using the Extron Firmware Loader ,
using the TLP 1000 default web page , or using GUI Configurator . Before starting,
consult your IT team and ensure that the touchpanel has a unique IP address.
Updating Firmware Using Extron Firmware Loader
1. Power on a computer that is connected to the same network as the touchpanel.
2. Install the Extron Firmware Loader utility onto the computer if it is not already present.
This is on the software disc that ships with unit or can be downloaded, free of charge,
from the Extron website (
www.extron.com ).
To install from the disc, insert the disc into the DVD-ROM drive of the computer and
follow the same procedure as for
installing the GUI Configurator and Global
Configurator programs (see page 18).
To install from the Extron website ( www.extron.com ), select the Download tab and
click the Software tab. Locate the Firmware Loader and click Download . Follow the
on-screen instructions to complete installation.
TLP 1000MV and TLP 1000TV • Configuration Software 21
