Network and Power over Ethernet connector — the
TLP 1000MV connects to a network using a twisted pair cable,
terminated with an RJ-45 connector.
The network port has two LEDs. The green LED lights solid to
indicate that the touchpanel is connected correctly to a network.
The yellow LED flashes to indicate that data is being passed to or from the touchpanel.
An Extron IP Link control processor must also be connected to the same network
domain.
Suggested models are listed on page 3 .
Use a straight-through Ethernet cable to connect the panel to a switch or router. Use a
crossover cable to connect the panel directly to a computer.
Extron recommends using a Power over Ethernet (PoE) power supply. Use a
straight-through Ethernet cable to connect the power supply to a switch or router.
This cable carries network information from the switch or router to the power supply
input. Connect a second straight-through cable to carry the network information and
48 VDC from the power supply to the TLP 1000MV. Connect the IEC power cord from
the PoE power supply to a convenient 100 VAC to 240 VAC, 50-60 Hz power source.
PWR LAN-OUT LAN-IN
To Network Switch To TLP 1000MV
Power over Ethernet (PoE) Power Supply

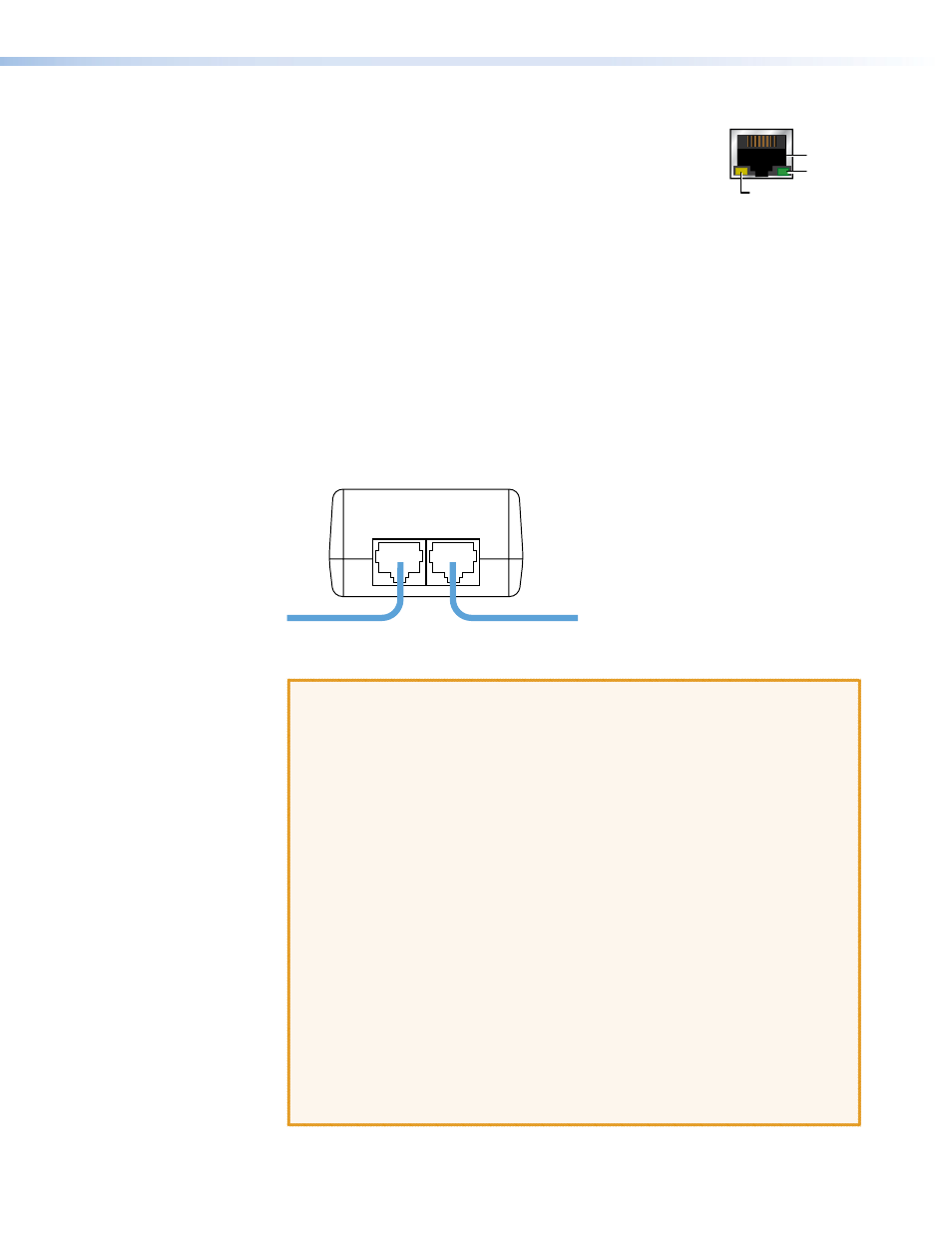

Figure 6. Connecting the Power over Ethernet Power Supply
CAUTIONS: • The TLP 1000MV and TLP 1000TV are intended for connection to
a Power over Ethernet circuit for intrabuilding use only and are
considered a Network Environment 0 per IEC TR62101.
• Always use a power supply supplied or specified by Extron. Use
of an unauthorized power supply voids all regulatory compliance
certification and may damage the supply and end product.
• Extron power supplies are certified to UL/CSA 60950-1 and
are classified as LPS (Limited Power Source). Use of a non-LPS
or unlisted power supply will void all regulatory compliance
certification.
• Unless otherwise stated, the AC/DC adapters are not suitable for
use in air handling spaces or in wall cavities. The power supply is
to be located within the same vicinity as the Extron AV processing
equipment in an ordinary location, Pollution Degree 2, secured to
the equipment rack within the dedicated closet, podium or desk.
Power over Ethernet (PoE) is intended for indoor use only. No part
of the network that uses PoE can be routed outdoors.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and
the Canadian Electrical Code part 1, section 16. The power supply
shall not be permanently fixed to building structure or similar
structure.
LAN
Link LED
Activity LED
RJ-45 Port
TLP 1000MV and TLP 1000TV • Panel Features 7
