Extron Electronics TLP 1000TV User Guide User Manual
Page 38
5.
Click
OK

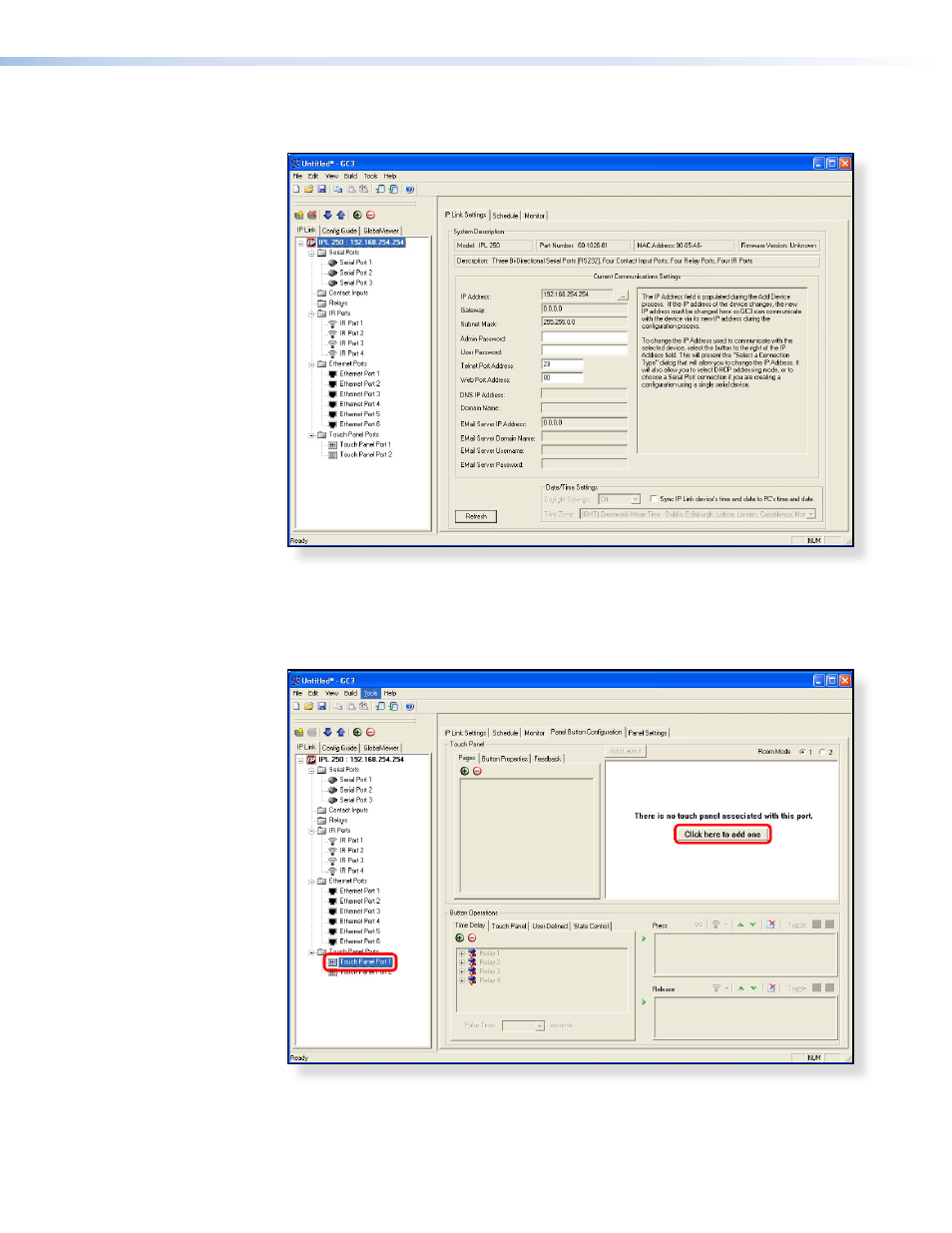

. The Add Device screen closes. The start-up screen, which was behind it, is
now visible, showing the IP Link control processor and the available ports:
Figure 37.
Configuring an IP Link Device
6.
Select
TouchPanel Port 1
. The screen shows the available options for the TouchLink
panel. To add the GUI Configurator project that was uploaded to the TouchLink panel,
click
Click here to add one
.
Figure 38.
Adding a TouchLink Panel
TLP 1000MV and TLP 1000TV • Configuration Software
32
