Navigate to the existing file and select it. A preview with information about the
file appears in the pane on the right.
If you are working on the project, leave the
Open as read-only
box unchecked.
Click
Open
to open the file. The project opens in GUI Configurator.
•
Download an Existing Project from a Panel
— Clicking
OK
opens a dialog
box that allows you to download a file that has been uploaded to a panel.

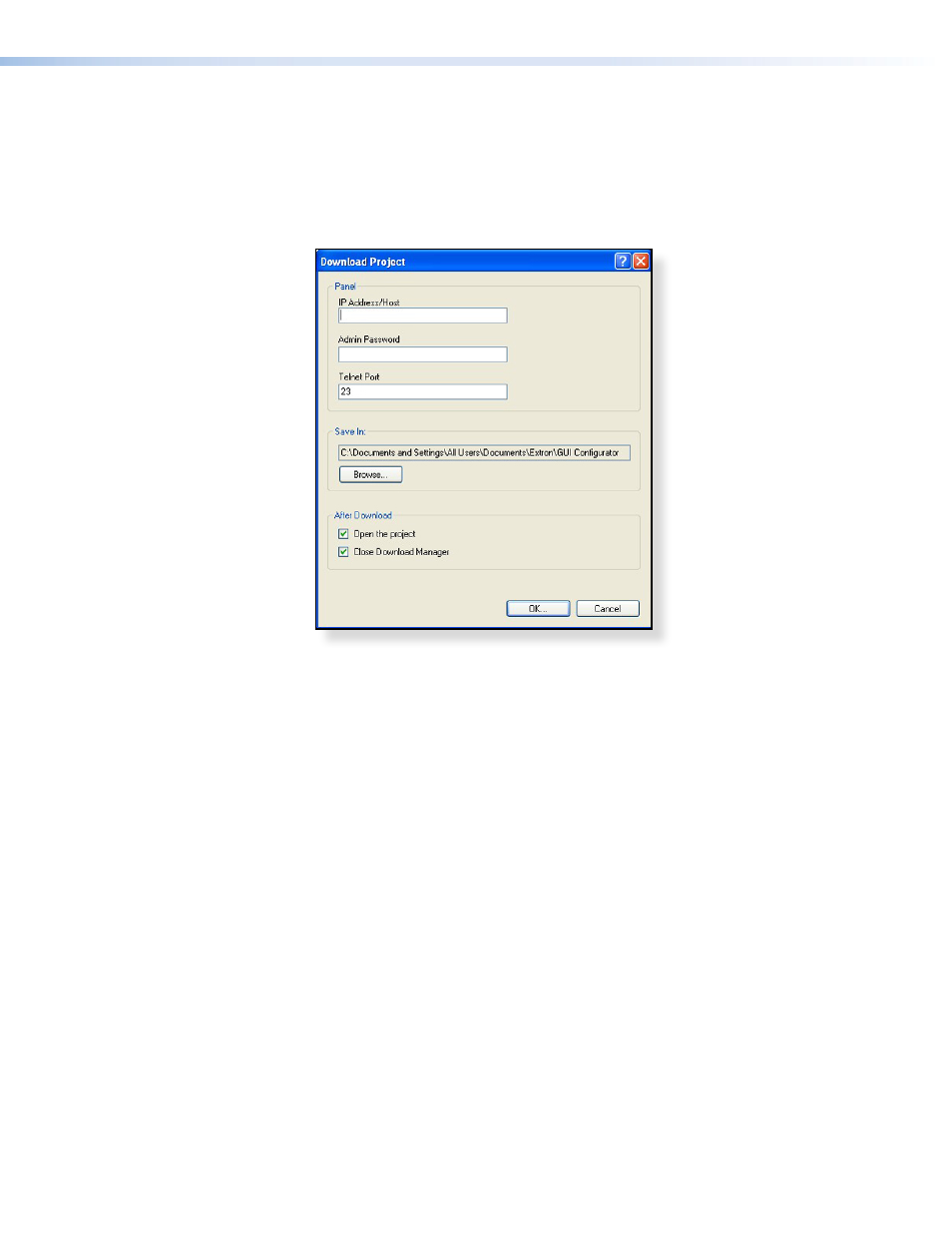

Figure 30.
GUI Configurator Download Project Dialog Box
In the dialog box that opens, enter the IP address of the panel and use the
Browse
button to navigate to a folder where the file will be saved.
Check
Open the project
and
Close Download Manager
.
Click
OK
. The project is downloaded to your computer and opens in
GUI Configurator.
