TLP 1000MV Rear Panel Features and Connections
k l m n

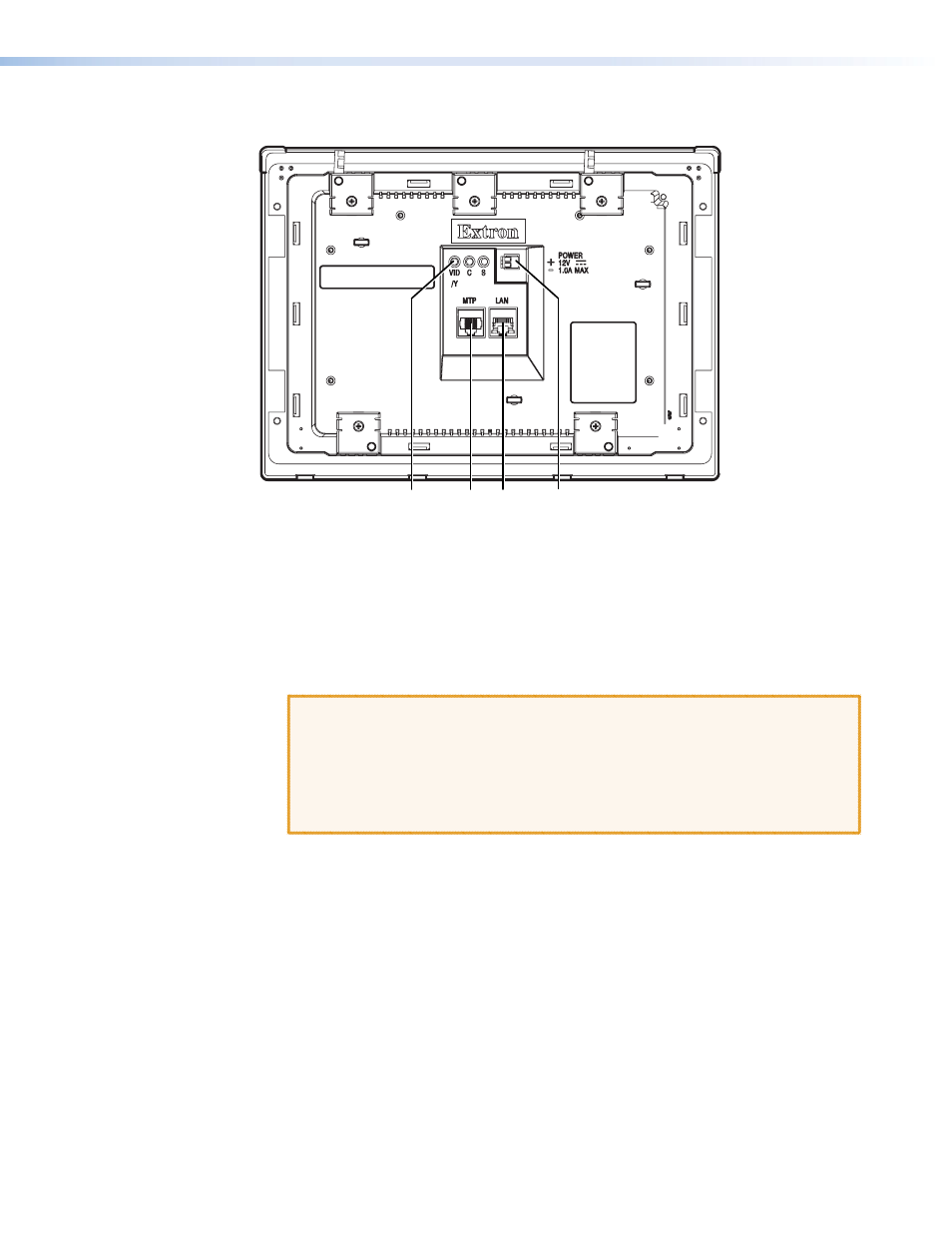

Figure 5. TLP 1000MV Rear Panel Features
k
MTP signal adjustment controls — use a small screwdriver to adjust these three
MTP signal variables: S-video luminance gain (VID/Y), S-video chrominance gain (C),
and sharpness (S). For composite video signals, the gain is controlled by the VID/Y
adjustment.
l
MTP input — connect a twisted pair cable, terminated with an RJ-45 connector, to
provide video and audio input from an Extron MTP transmitter.
CAUTION: Connect the MTP transmitter to the MTP socket and the network
connector to the network socket. Although both use RJ-45
connectors, the MTP socket (on the left) must be connected to an
MTP transmitter and the network socket (on the right) must be
connected to a LAN. The wires on each connector use different
voltages and inputting the wrong voltages into a socket will damage
the TLP 1000MV.
