Time Screen
Main
Volume
Time
Network
Video
Exit
Down Up
Month: 07
Down Up
Hours: 13
Down Up
Day: 06
Down Up
Minutes: 32
Down Up
Year: 2009

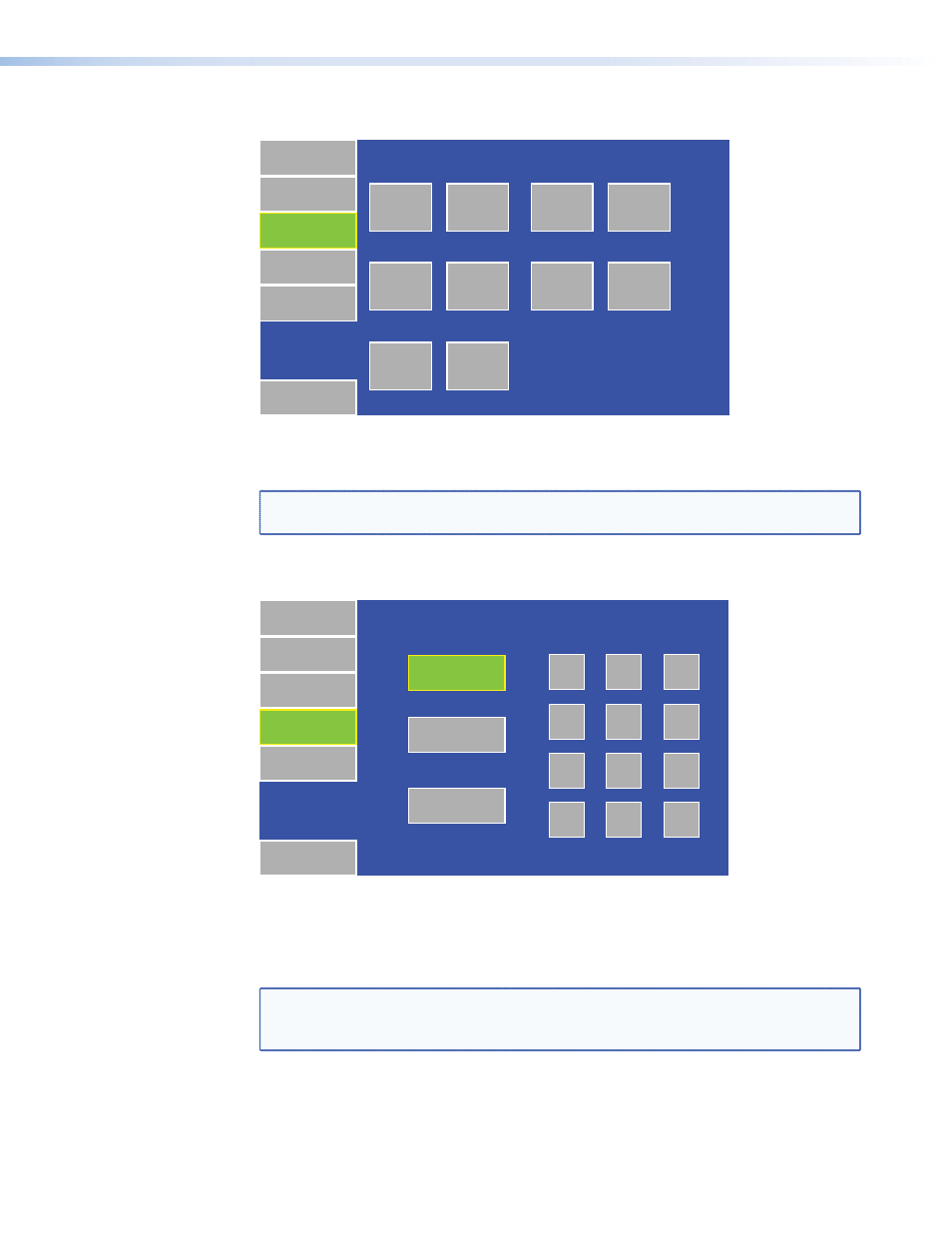

Figure 15. Time Screen
Use the Down or Up buttons to adjust the Month, Day, Year, Hours, and Minutes.
NOTE: The Hours value uses the 24-hour clock. For 10 am, set hours to 10 ; for
10 pm, set hours to 22 .
Network Screen
Main
Volume
Time
Network
Video
Exit
IP Address
192.168.254.254
Subnet Mask
255.255.0.0
DHCP
Off
MAC: 00-05-A6-07-3A-55
1 2 3
4 5 6
7 8 9
0 . Clear
Figure 16. Network Screen
To set the IP address or subnet mask, press the appropriate button. When one of the
buttons is selected, an on-screen keypad appears that allows the user to select “
Clear ,”
or digits between 0 and 9 , and “ . ” (dot).
NOTE: The factory default IP address for both the TLP 1000MV and TLP 1000TV is
192.168.254.254 . The default subnet mask is 255.255.0.0 . Consult with
your IT department to ensure these addresses are correctly assigned.
Toggle between On and Off to enable or disable Dynamic Host Configuration Protocol
(DHCP). This determines whether the unit will have a permanent IP address or will have
one provided by the network, when required. The default setting is
Off .
TLP 1000MV and TLP 1000TV • Initial Configuration and Calibration 16
