e
LCD screen — has a 1024x600 resolution with a touch overlay. A graphical user
interface, designed using the Extron GUI Configurator software (see page 24),
displays buttons, text, or icons on the screen. These are configured for a range of
user-defined functions, using the
Extron Global Configurator software (see
page 29).
f
Speakers — two speakers located under the screen, on either side of the panel,
provide audible feedback for the user.
g

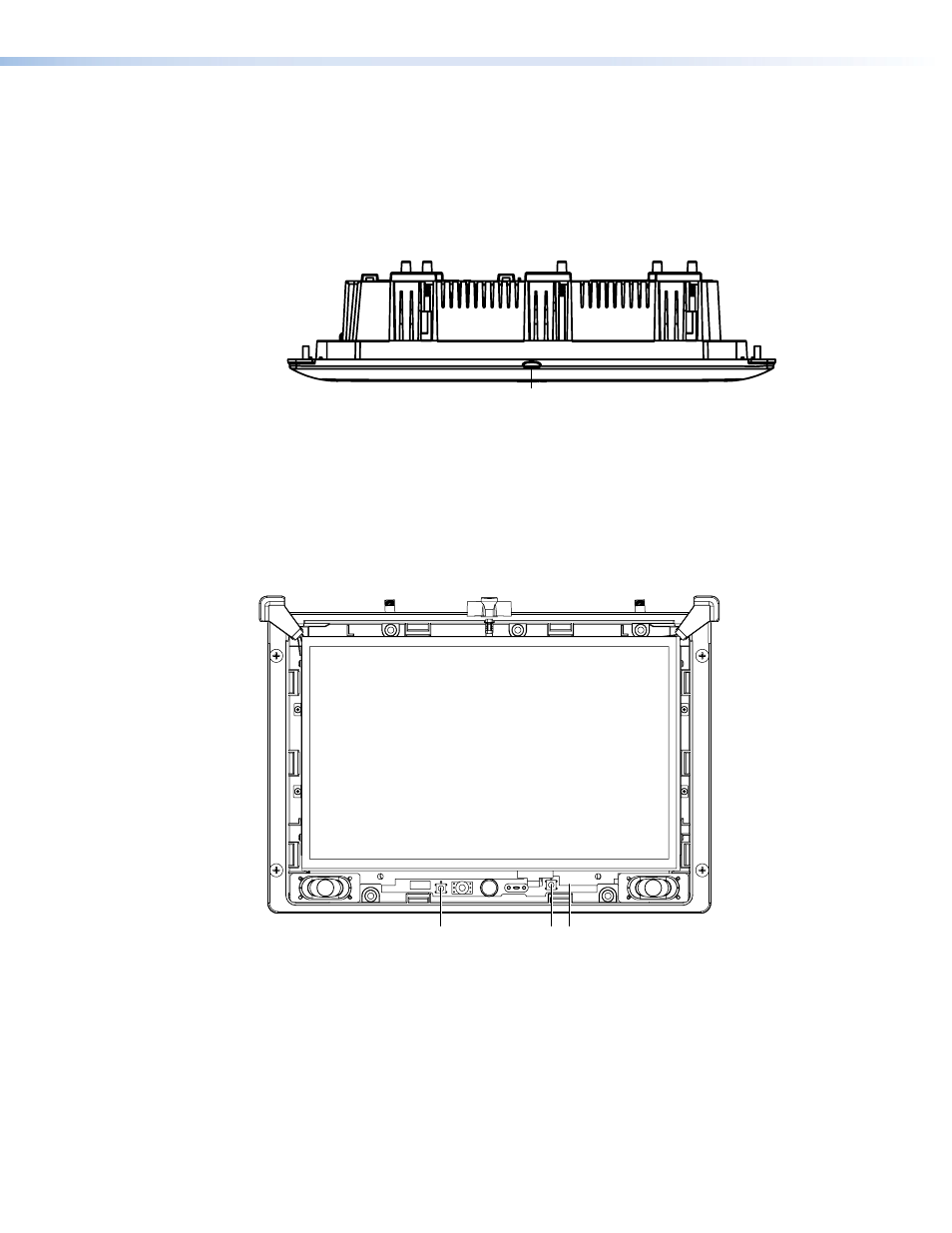

Figure 3. TLP 1000MV Top View
g
Light sensor — mounted on top of the display frame. The sensor monitors the level
of ambient light and adjusts the screen brightness and button backlighting. The
sensor can only be viewed from above the panel.
Reset Buttons and LED
There are two buttons and an LED recessed behind the faceplate.
h ij
Figure 4. TLP 1000MV Front Panel with the Bezel Removed
h
Menu button — activates the on-screen menus for calibrating the unit (see
page 14).
i
Reset button — allows the unit to be reset in any of four different modes. For further
information see “ Reset Modes ” on page 47.
j
Reset LED — provides feedback about the reset status when the user presses the
reset button. For further information see “ Reset Modes ” on page 47.
TLP 1000MV and TLP 1000TV • Panel Features 5
