Updating Firmware From a Web Browser
1.
Power on a computer that is connected to the same network as the TLP 1000.
2.
From the Extron website (
e for the
touchpanel. Click the
Download
tab on the Extron home page and select the
Firmware
option (see figure 23).
3.
Navigate to the touchpanel firmware and click
Download
.
4.
This downloads the firmware to your computer. Note the folder in which the firmware
file is saved.
5.
Open your browser and type the IP address of the TLP 1000 unit into the address box.
The browser opens the
(see page 19).

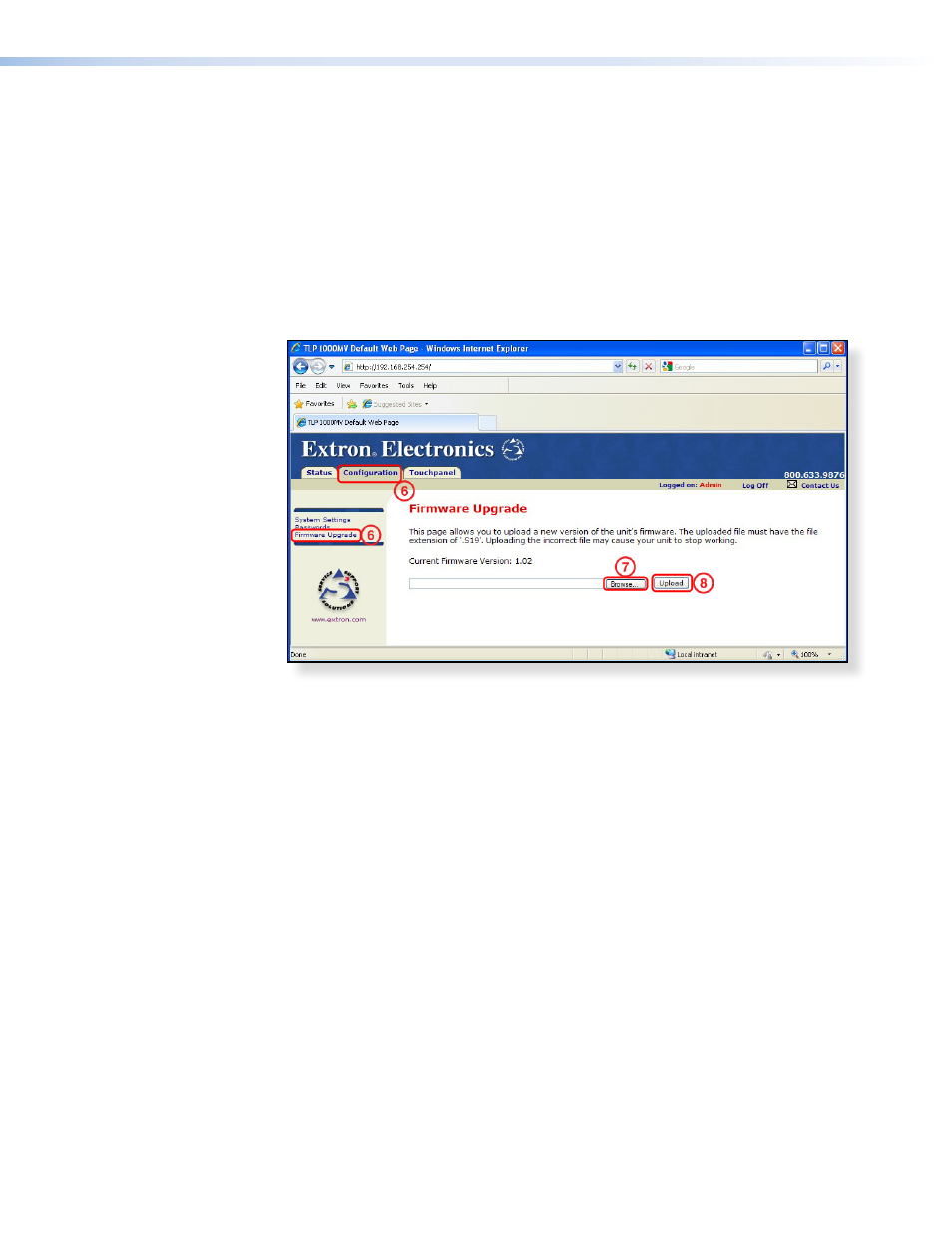

Figure 25.
Firmware Upgrade Web Page
6.
Click the
Configuration
tab at the top of the page and then select
Firmware Upgrade
from the bar on the left.
7.
Use the
Browse
button to navigate to and select the firmware file that was saved in
step 4.
8.
Click
Upload
. The Touchpanel screen shows the message “Firmware Uploading...
Please Wait...”. When the firmware is uploaded, the screen shows the message
“Restarting...”. Once the firmware is installed, the panel can be calibrated using the
(see page 19).
TLP 1000MV and TLP 1000TV • Configuration Software
23
