4. Click OK . The Project Settings screen closes and is replaced by the Add Device dialog
box:

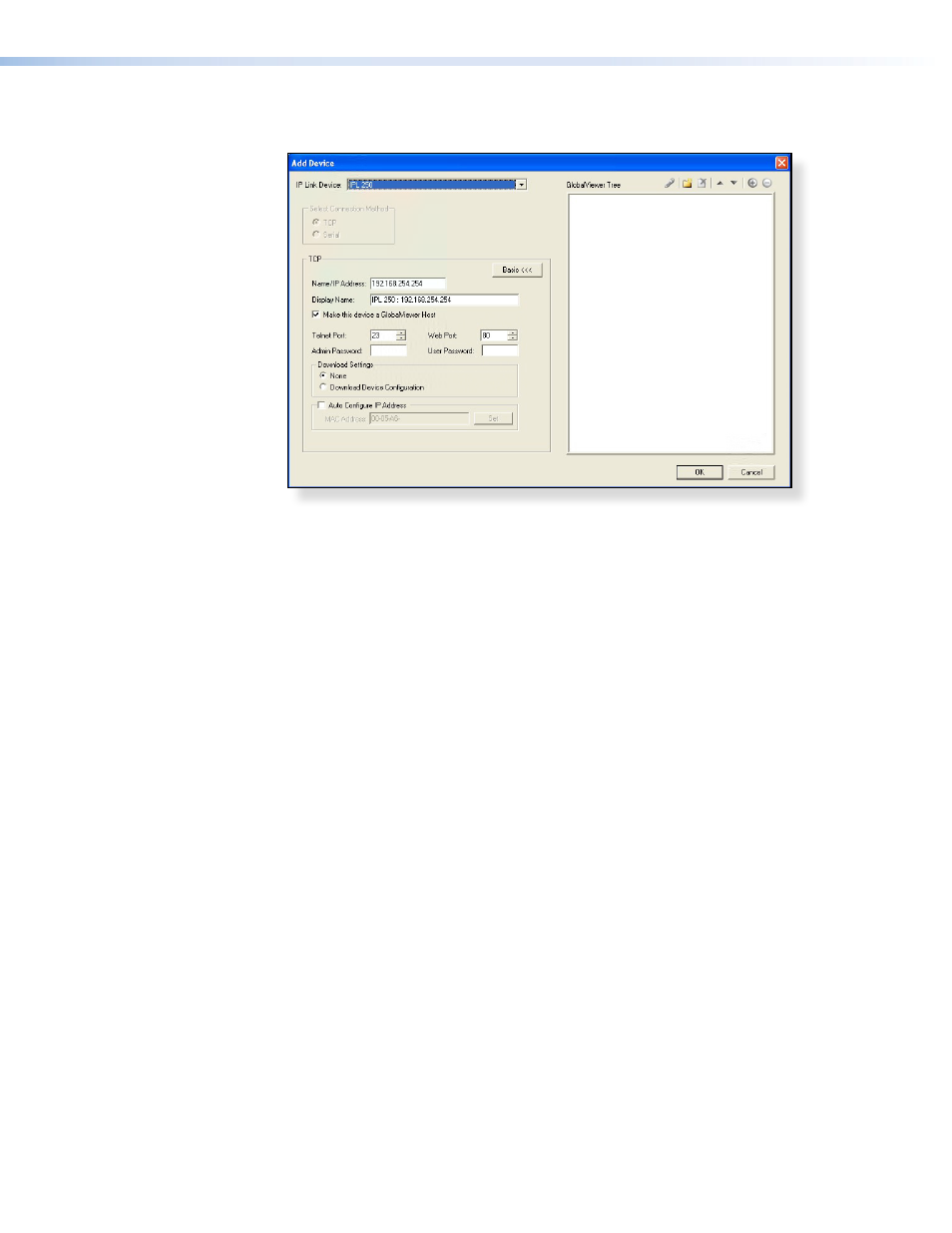

Figure 36. Global Configurator Add Device Dialog Box
To see all the options, click the Advanced >>> button. The button name changes to
Basic <<< (as shown in the figure above).
a. Select the IP Link device from the drop-down menu. In figure 36, above, an
IPL 250 controller is added.
b. Enter the IP address of the IP Link control processor. The default value is
192.168.254.254, but this may have been changed. Check with your IT
department to verify the address.
c. Enter a display name into the text box. This is what the device will be known as in
the Global Configurator project.
d. Checking the Make this device a GlobalViewer Host check box is optional.
e. Set the Telnet port (usually 23) and the web port (usually 80).
f. If the controller is password protected, enter the password now.
g. In the right pane, set up a GlobalViewer tree, (see the Global Configurator help
file).
TLP 1000MV and TLP 1000TV • Configuration Software 31
