Using GUI Configurator
This section provides an overview of the GUI Configurator program. For complete
information about the program, consult the GUI Configurator help file (select
Contents in
the Help menu or press the key while within the program).
NOTE: To configure the touchpanel, use GUI Configurator version 1.2 or later.
To use the GUI Configurator program, follow these instructions:
1. Double-click the desktop icon. A splash screen appears momentarily and then the
program opens at the main screen behind the GUI Configurator Start Options dialog
box.

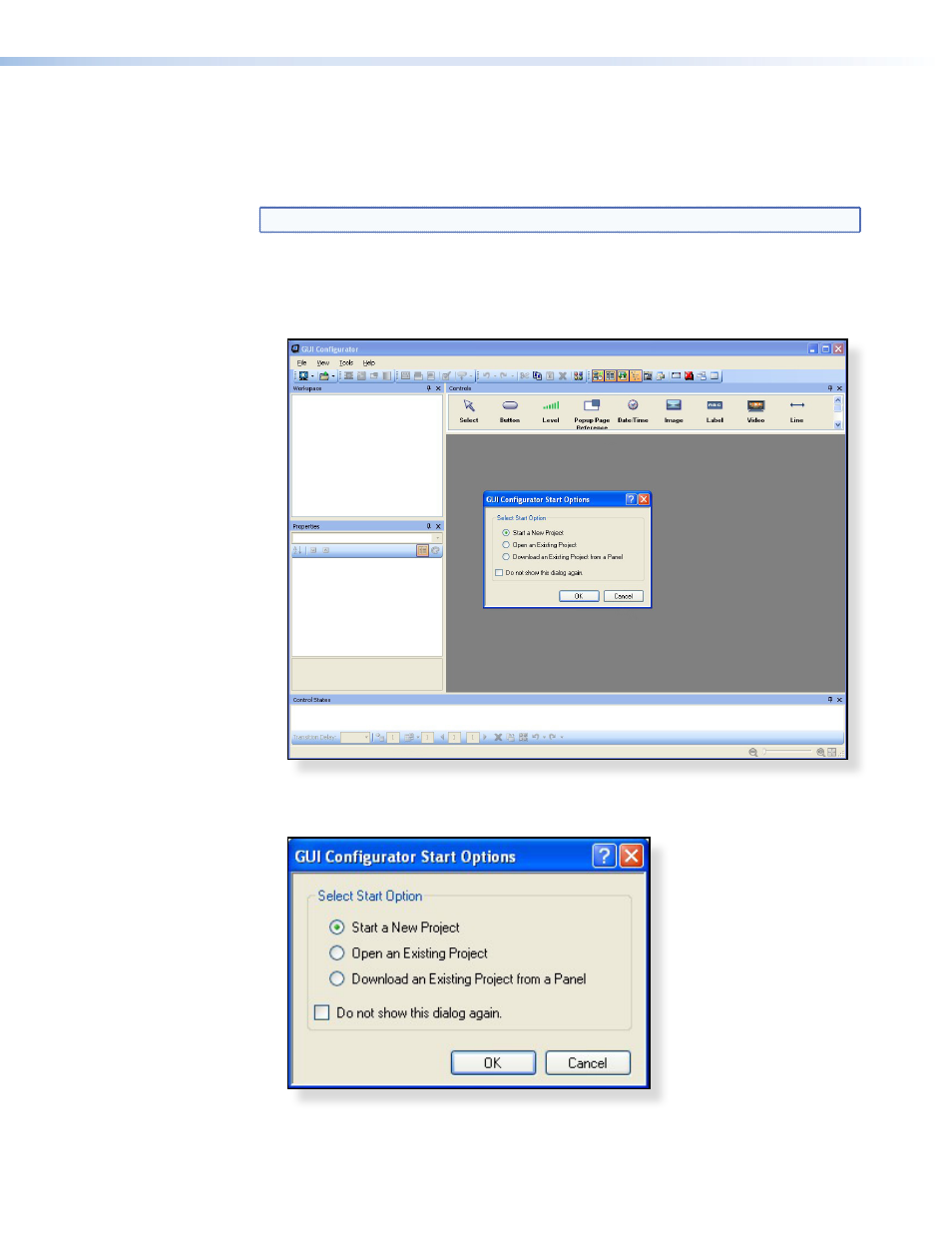

Figure 26. Opening GUI Configurator
Figure 27. GUI Configurator Start Options Dialog Box
TLP 1000MV and TLP 1000TV • Configuration Software 24
