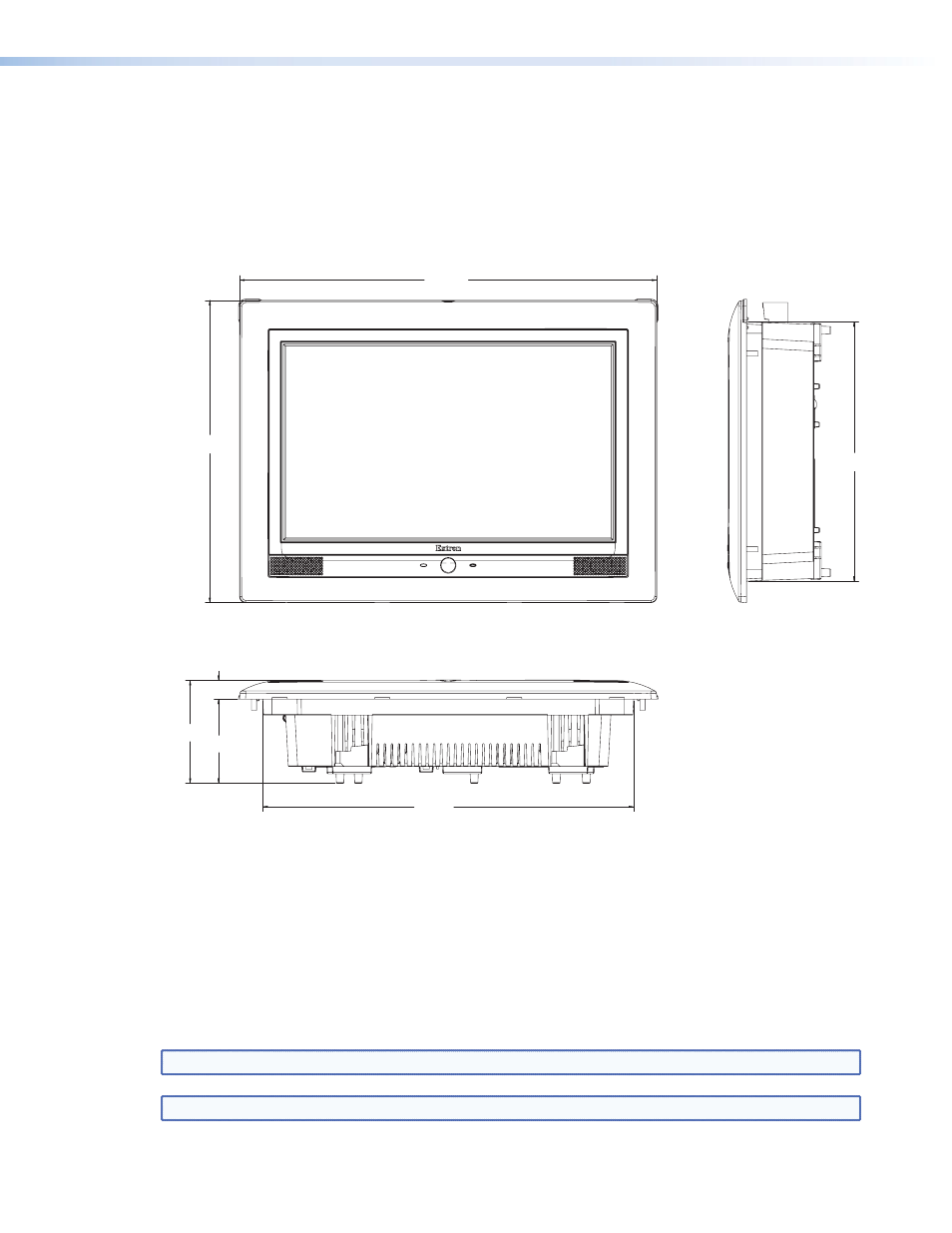

Enclosure dimensions
Faceplate ................................. 8.1" H x 11.2" W x 0.5" D
(20.6 cm H x 28.5 cm W x 1.3 cm D)
Enclosure ................................. Excluding mounting flange:
7.0" H x 10.0" W x 2.3" D*
(17.7 cm H x 25.3 cm W x 5.8 cm D*)
*In-wall depth: 2.3" (5.8 cm)
(Allow at least 2.75" [7.0 cm] depth in the wall/furniture.)
6.96"
(17.69 cm)
SIDE VIEW
11.20 "
( 28.46 cm)
8.11"
(20.61 cm)
0.50"
(1.27 cm)
2.26"
(5.75 cm)
2.76"
(7.02 cm)
9.96"
(25.30 cm)
FRONT VIEW
BOTTOM VIEW
Product weight ............................... 2.7 lbs (1.2 kg)
Shipping weight ............................. 6 lbs (3 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety ...................................... CE, c-UL, UL
EMI/EMC ................................. CE, C-tick,FCC Class A, ICES, VCCI
Environmental .......................... Complies with the applicable requirements of RoHS and WEEE.
MTBF ............................................. 30,000 hours
Warranty ........................................ 3 years parts and labor; touchscreen display and overlay components are covered
for 1 year
NOTE: All nominal levels are at ±10%.
NOTE: Specifications are subject to change without notice.
TLP 1000MV and TLP 1000TV • Specifications 36
