Audio Adjustment area
Audio Gain/Attenuation slider — Click and drag the Audio Gain/
Attenuation slider control to select the input audio gain or attenuation
value, from -18 dB to +10 dB in 1.0 dB increments.
NOTE: When you make input gain or attenuation changes, the setting
is changed in the transmitter.
If the PC is connected to the receiver and either the receiver-Tx-
to-transmitter-Rx cable is not connected in your system or the
receiver is in the daisy chain mode, you cannot change the input
value from the Audio Adjustment area.
Audio Output Level radio buttons — Click either the Consumer Level
(-10 dBV) or Professional Level (+4 dBu) radio button to select the
output audio level.
NOTE: When you make an audio output level change, the setting is changed in the
receiver. It reports the changes to the transmitter via the optional receiver-Tx-to-
transmitter-Rx cable.
If the PC is connected to the transmitter and either the receiver-Tx-to-
transmitter-Rx cable is not connected in your system or the receiver is in the
daisy chain mode, the program cannot report the output audio level in the
Audio Adjustment area. You can change the level, but the program
cannot report the changes. The program shows the Set Consumer (or Set
Professional) level message to indicate that the output level command
is control only, not an indication (see figure 18). The message is displayed for
approximately 1 second.

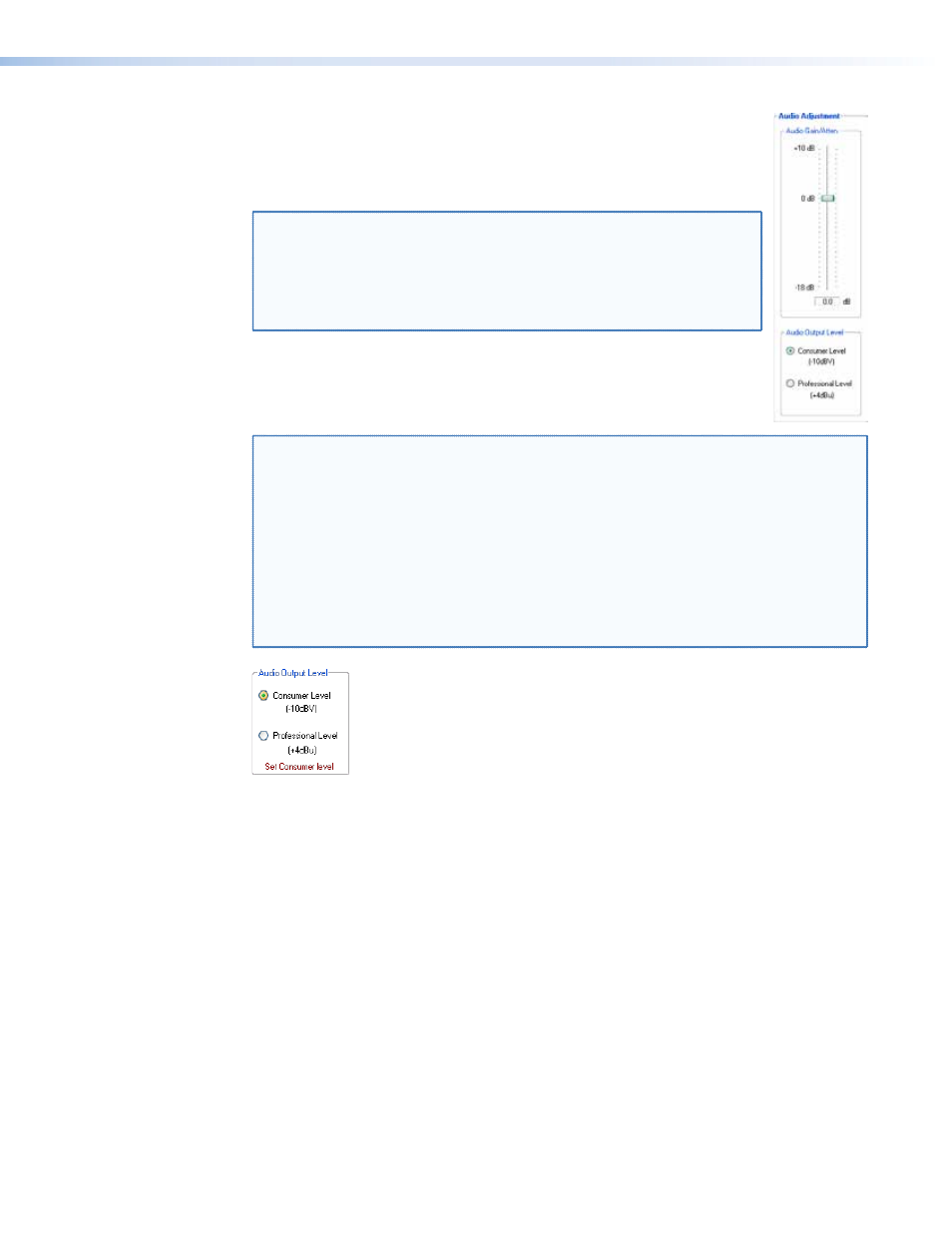

Figure 18. Alternate Audio Adjustment Area Indication
