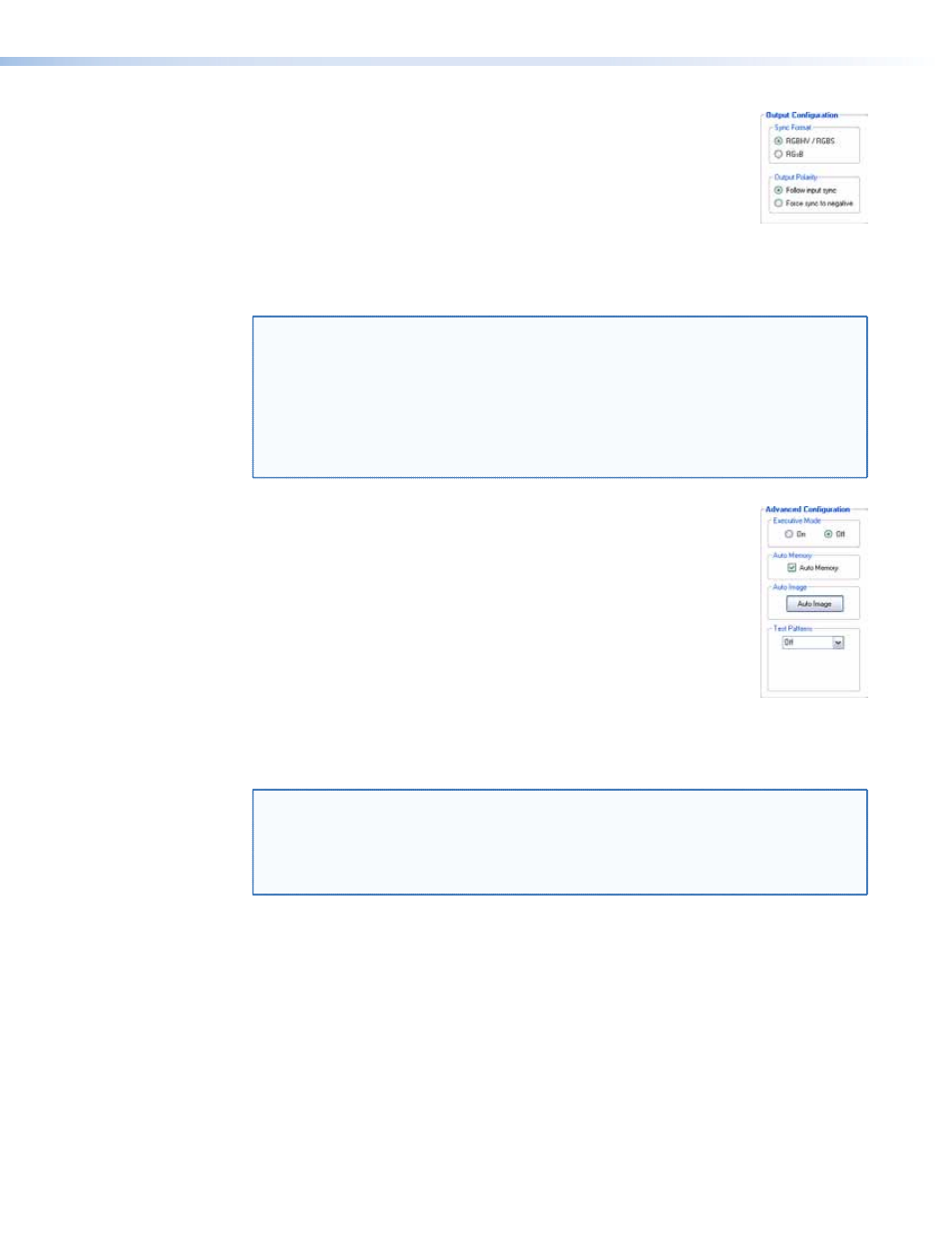

Output Configuration area
Sync Format radio buttons — The PowerCage FOX receiver outputs
RGBHV or RGsB video depending on the input to the transmitter only. The
radio buttons in this area have no effect on the PowerCage FOX receiver.
Refer to the FOX 500 User Guide if you are using one of those products to
receive the fiber optic signal, as the video output of those products can be
configured.
Output Polarity radio buttons — Click either the Follow input sync or Force
sync to negative radio button to select the desired video output sync polarity.
NOTE: When you make output configuration changes, the setting is changed in the
receiver. It reports the changes to the transmitter via the optional receiver-Tx-to-
transmitter-Rx cable.
If the PC is connected to the transmitter and either the receiver-Tx-to-
transmitter-Rx cable is not connected in your system or the receiver is in the daisy
chain mode, the program cannot report the output sync format and polarity
position settings in the Video Adjustment area. You can change the output
sync format and polarity, but the program cannot report the changes.
Advanced Configuration area
Executive Mode buttons — The Executive Mode radio buttons have
no effect on the operation of the PowerCage FOX units.
Auto Memory checkbox — Click the Auto Memory checkbox to
automatically apply saved position, horizontal start, total pixels, and pixel
phase settings when the sensed input resolution changes.
Auto Image button — Click the Auto Image button to adjust the
output settings for the best image, based on the sensed input resolution.
Test Patterns drop box — Select one of three built-in test patterns;
Color Bars, grayscale, and alternating pixels; as necessary to help adjust the
color, brightness/contrast, and focus of the display. Select Off to output the video input to
the transmitter.
NOTE: You must have a video input connected and the transmitter-Tx-to-receiver-Rx
fiber cable connected and the receiver must be in the normal mode for the
receiver to output a selected test pattern.
The test pattern turns off if the input signal rate is changed or disconnected or if
power is removed.
PowerCage FOX DVI and PowerCage FOX VGA • Remote Control 29
