RS-232 connections
The RS-232 Over Fiber port is for transmission of serial signals, such as projector control
signals, between the transmitter and receiver.
The Remote RS-232 port is for remote control of the transmitter and receiver. The protocol
for the Remote RS-232 port is as follows:
• 9600 baud • no parity • 8 data bits
• 1 stop bit • no flow control
Do not tin the wires!
Controlling
Device
Ground ( )
Receive (Rx)
Transmit (Tx)
Ground ( )
Receive (Rx)
Transmit (Tx)
Bidirectional
Function Pin
Tx
Rx
Gnd
Transmit data
Receive data
Signal ground
RS-232
OVER FIBER
Tx Rx
1 2
REMOTE
RS-232
Tx Rx
ALARM
NOTE: Cross the Tx and Rx lines once
between the source and the target.

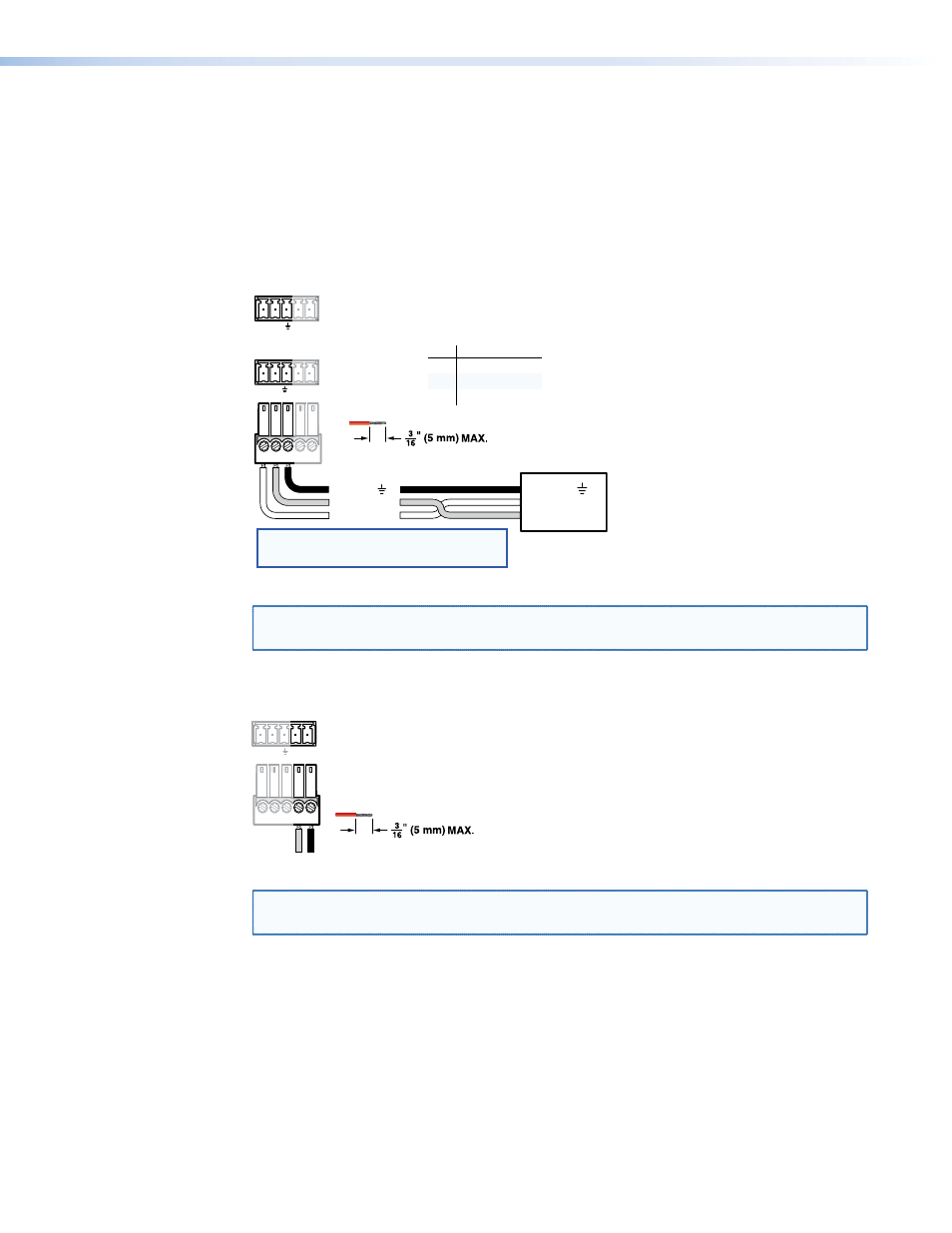

Figure 9. RS-232 Over Fiber Connector
NOTES: The length of exposed wires is critical. The ideal length is 3/16 inch (5 mm) (see
the audio input connector NOTES on page 8 for more information.)
Alarm outputs connection
Pin 1 and pin 2 are
shorted together when
no light is detected.
Do not tin the wires!
1 2
REMOTE
RS-232
Tx Rx
ALARM
Figure 10. Alarm Connector
NOTES: The length of exposed wires is critical. The ideal length is 3/16 inch (5 mm) (see
the audio input connector NOTES on page 8 for more information.)
