PowerCage Configuration Port

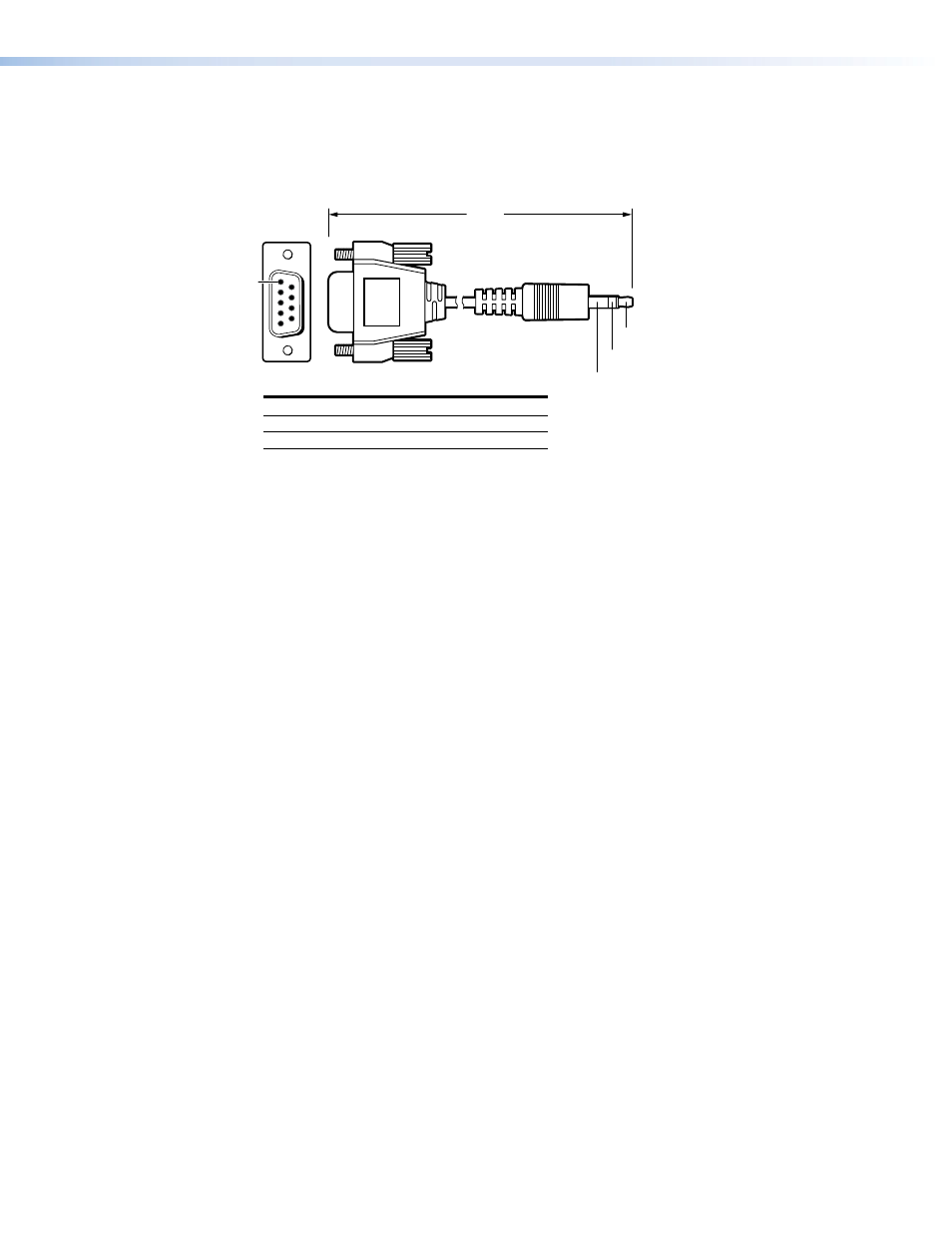

The Extron 9-pin D to 2.5 mm mini jack TRS RS-232 cable, included with the PowerCage
enclosure, but available separately, part #70-335-01 (see figure 14) can be used for
connection to the Configuration port.
6 feet
(1.8 m)
5
1
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D
Connection
TRS Plug
Pin 2
Computer Rx line
Tip
Pin 3
Computer Tx line
Ring
Pin 5
Computer signal ground
Sleeve
Figure 14.
9-pin TRS RS-232 Cable
PowerCage FOX DVI and PowerCage FOX VGA • Remote Control
17
