Extron control system comm-link cable, Reference information, cont’d – Extron Electronics MKP 2000 User Manual
Page 42
MKP 2000 Remote Control Panel • Reference Information
MKP 2000 Remote Control Panel • Reference Information
Reference Information, cont’d
A-6
A-7
Extron Control System Comm-Link cable
Wire specifications for Extron Comm-Link cable (figure A-2) are
as follows:
A
(red) = 18 American Wire Gauge (AWG)
B
(violet or blue) = 22 AWG (grouped and shielded)
C
(white) = 22 AWG
D
(drain) = 24 AWG
E
(black) = 18 AWG
Comm-Link cable was designed for use with MKP
control panels.
SuperFlex Plenum
Jacket
Fiber Wrap
Two 22 AWG
(White and Violet or Blue)
One 24 AWG
Tinned Copper Drain Wire
(foil-shielded group)
B, C
D
Two 18 AWG
(Red and Black)
A, E

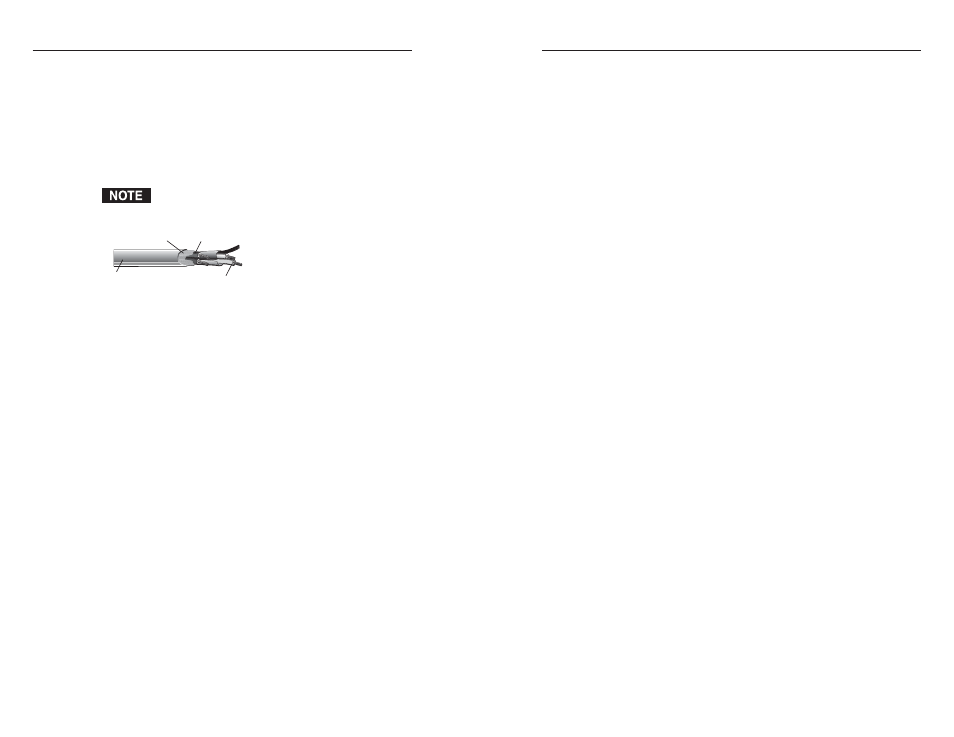

Figure A-2 — Extron Comm-Link cable
