MKP 2000 Remote Control Panel • Reference Information MKP 2000 Remote Control Panel • Reference Information
Reference Information, cont’d
A-5 A-4
MKP 2000
VOLUME
I/O
2.63"
(6.68 cm)
3.38" (8.59 cm)
Full Size
Circuit Board Box
(behind front panel)
Cut-out area should be slightly
larger.

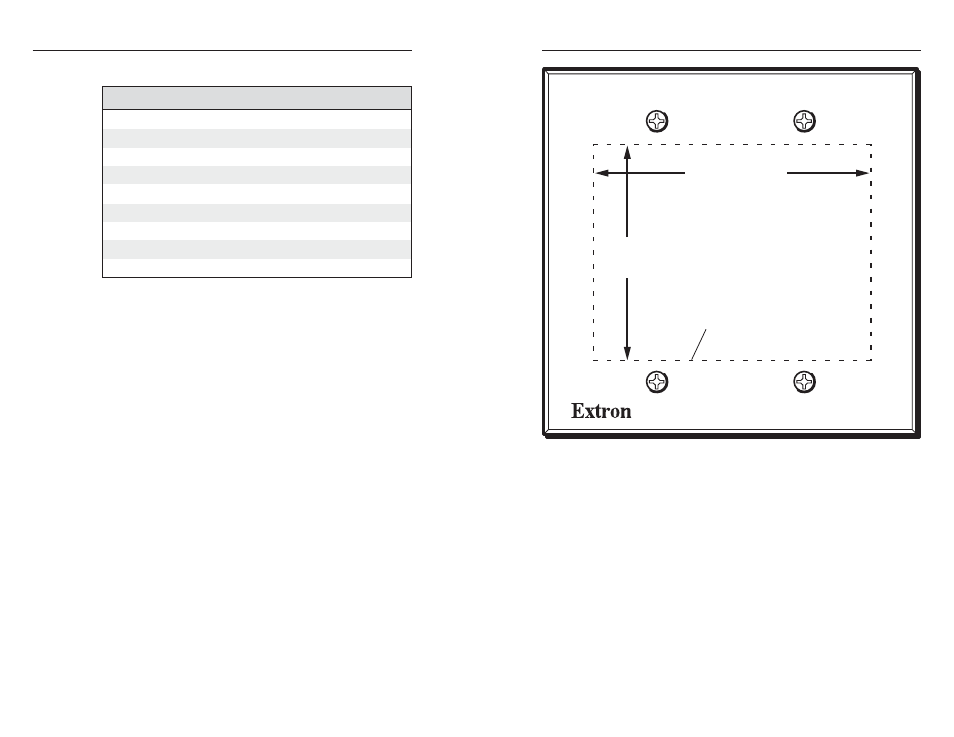

Figure A-1 — Panel mount cutout template
Cables
Cables Part number
Comm-Link Cable Cut lengths:
50 feet (15.2 m) 26-461-01
100 feet (30 m) 26-461-02
200 feet (60 m) 26-461-03
300 feet (90 m) 26-461-05
400 feet (120 m) 26-461-04
Bulk spools:
500 feet (152 m) 22-119-02
1,000 feet (305 m) 22-119-03
Mounting and Cabling Specifications
Electrical box cutout
Any standard box that meets the local electrical codes can be
used, but boxes from different manufacturers may have
different size openings. Extron recommends testing the fit of
the MKP inside the electrical box and then placing the box flush
against the mounting surface and tracing the cutout area.
Panel mount cutout template
Figure A-1 is a drawing that shows the dimensions for cutting a
hole to accommodate the keypad circuit board for mounting an
MKP 2000 on a flat surface. This type of installation can include
a desk or podium, or a control panel or dashboard, where the
back is protected and does not require an electrical box.
