MKP 2000 Remote Control Panel • Local Operation
MKP 2000 Remote Control Panel • Local Operation
Local Operation, cont’d
When a selected input or output is outside the available
range for this MKP or the connected matrix switcher, the
LED display shows
N
-
A
(not available).
Deselecting a tie
To deselect (break) a tie,
1
.
Press Input.
2
.
On the keypad, press 0 for the input.
3
.
Press Output.
4
.
On the keypad, press the number of the output that you
want to untie.
5
.
Press Take.
Viewing the last input or output tied from the MKP
Press either the Input button or the Output button.
•
The Input or Output LED lights.
•
The LED display shows the last tied input or output
(depending on which LED, Input or Output, is lit).
The LED display shows the most recent input or output
number entered on the numeric keys only. Ties created
using other devices (other MKPs, a PC or control
system, or the matrix switcher’s front panel) are not
shown in the LED display.
Viewing and configuring the IP and MKP setup
parameters
To configure the MKP to operate in your network, you may
need to change one or more of the following IP addresses and
the host control port setting:
•
The MKP’s IP address (default = 192.168.254.253)
•
The MKP’s subnet address (default = 255.255.0.0)
•
The MKP’s gateway address (default = 0.0.0.0)
•
The target matrix switcher’s IP address (default = 0.0.0.0)
•
Host control port setting (pass-through or no pass-
through) (default = no pass-through)
•
MKP’s connection setting
Primary
— Controls the switcher directly.
Secondary
— Controls the switcher through another
MKP and its Switch RS-232 port.
Valid IP addresses consist of four 1-, 2-, or 3-digit numeric
subfields (octets) separated by dots (periods). Each octet can be
numbered from 000 through 255. Leading zeroes, up to three
digits total per octet, are optional. Values of 256 and above are
invalid.
If any of the default addresses conflict with other equipment at
your installation, you can change them to any valid value.
CAUTION
Editing the Extron IP address and other parameters
while connected via the LAN port can immediately
disconnect you from the MKP. Extron recommends
editing this field using the front panel or the
RS-232 link, and protecting the Ethernet access to
these parameters by assigning an administrator’s
password to only qualified and knowledgeable
personnel.
Edit these addresses and set the host control as follows:
1
.
Simultaneously press and hold the Input, Output, and
Take buttons until the LED display changes
(approximately 2 seconds), then release the buttons
(figure 3-2).
INPUT
OUTPUT
TAKE
1
9
2
Simultaneously press and hold
the Input, Output, and Take
buttons for 2 seconds.
Release
the buttons.
The LED display shows the
most-significant octet of the
MKP 2000’s IP address.

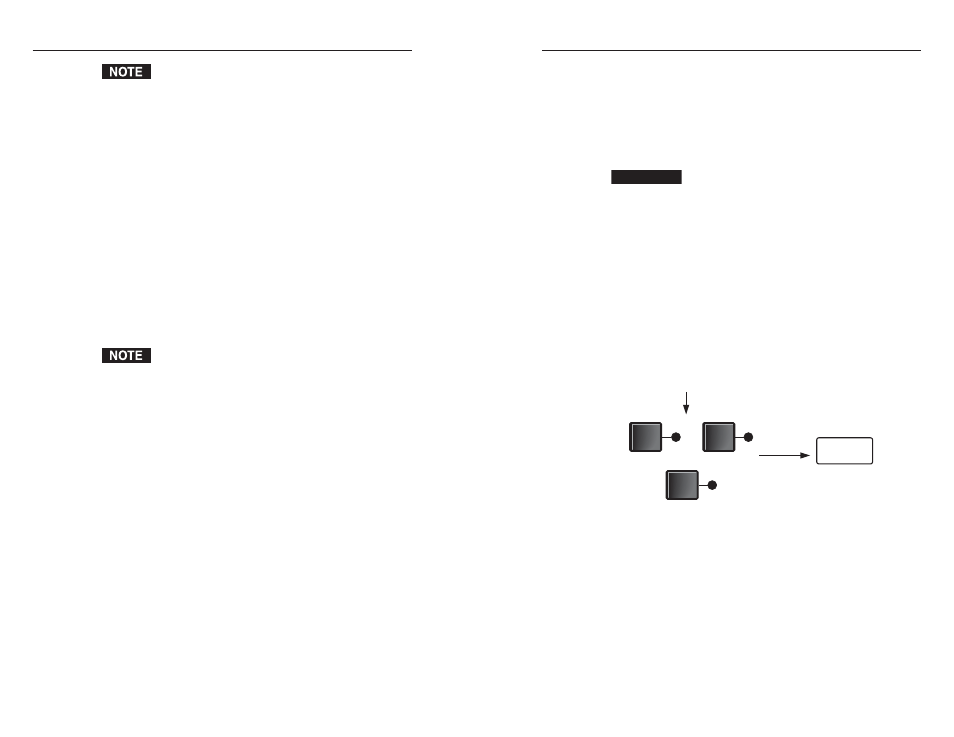

Figure 3-2 — Selecting Setup mode
•
Press the Input button to change the value shown in
the LED display, cycling through the various IP
addresses and the host control settings (figure 3-3).
