HD Player Appendix A: TCP/IP Communications
98 Rev. 6.8
The Subnet Mask
The Subnet Mask is another 32-bit binary number that is used to 'mask' certain bits of the IP Address. This
provides a method of extending the number of network options for a given IP Address. It works by allowing part
of the host identifier to be used as a 'subnet identifier'.
It is important that you set the correct value for the Subnet Mask. The basic values depend on the class of IP
Address being used:
Class Name Subnet Mask
Class A 255.0.0.0
Class B 255.255.0.0
Class C 255.255.255.0
Accessing the PC’s Subnet Mask and IP Address
Opening the Network Dialog Box:
The HD Player’s IP address is located in the Network dialog box, which can be accessed in the following manner:
 Right-Click the Network Neighborhood desktop shortcut, and then select Properties.
 Alternatively, select the Windows™ Start button, then select Settings/Control Panel, and double-click
the Network icon.
After performing either of the previous steps, the Network dialog box will appear.

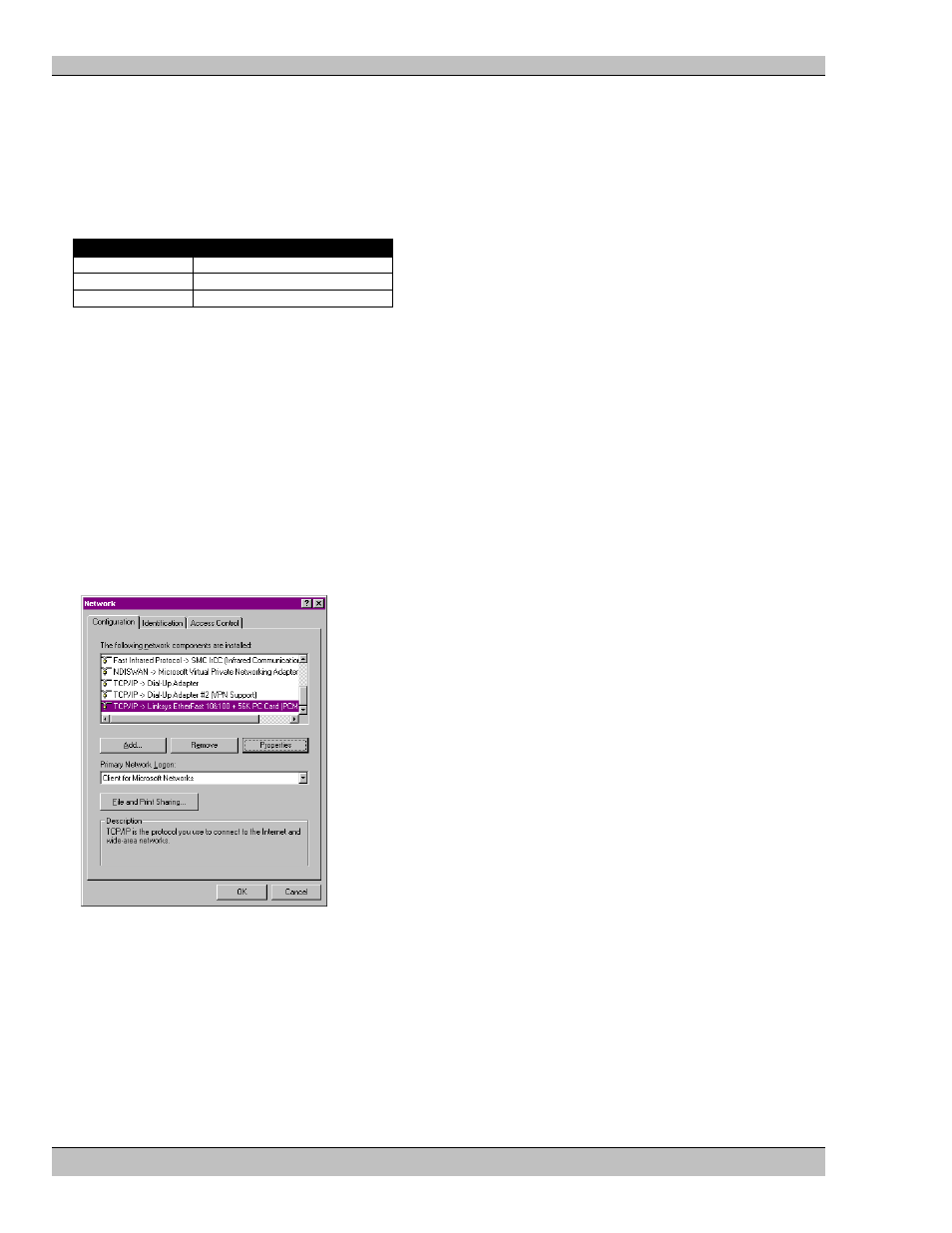

The Network Dialog Box
Accessing the IP Address:
To access the HD Player’s IP address from the Network dialog box, do the following:
1. Scroll down the list of installed network components, and click on the relevant “TCP/IP” entry.
2. After selecting the correct TCP/IP component, click the Properties button. The TCP/IP Properties dialog
box will appear, showing the TCP/IP address and the Subnet Mask.
