HD Player Chapter 1: Introduction/Quick Reference Guide
15 Rev. 6.8
The MS9100P
Selected MS9100P features:
• Analog HD video outputs
• SPDIF 5.1 audio output
• Playback using the Electrosonic MS9000 HD Player Control Application software
• Windows™ MediaPlayer support included
• Rack mounted enclosure
• Composite Video Black & Burst synchronization
DECODER CARD,
ANALOG (MS9100)
ANALOG
AUDIO OUT
TO HD DISPLAY
SPDIF OUT
(5.1 AUDIO)
REF. IN COMP. VIDEO
BLACK & BURST
TIME CODE
IN/OUT
USB NO CONNECTION
LAN (INTERNET)
KEYBOARD
MOUSE
RESET
MEDIASONIC MS9100P
HD PLAYER
COMPUTER
MONITOR
COM 1, REMOTE
CONTROL

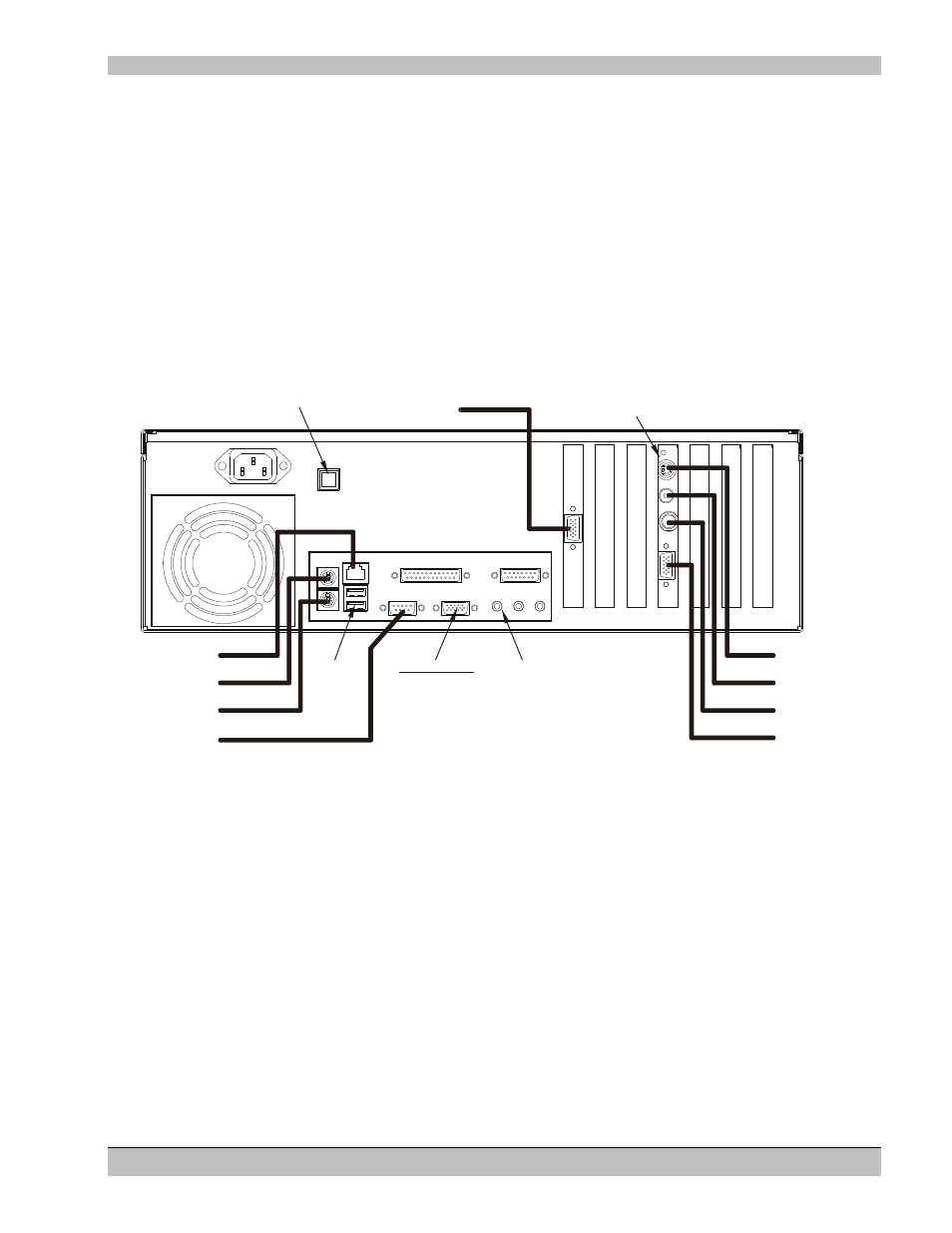

Figure 3. MS9100P, Analog HD Player, Rack Mount model connections
