HD Player Chapter 7: Soft Edging/Display Overlap
51 Rev. 6.8

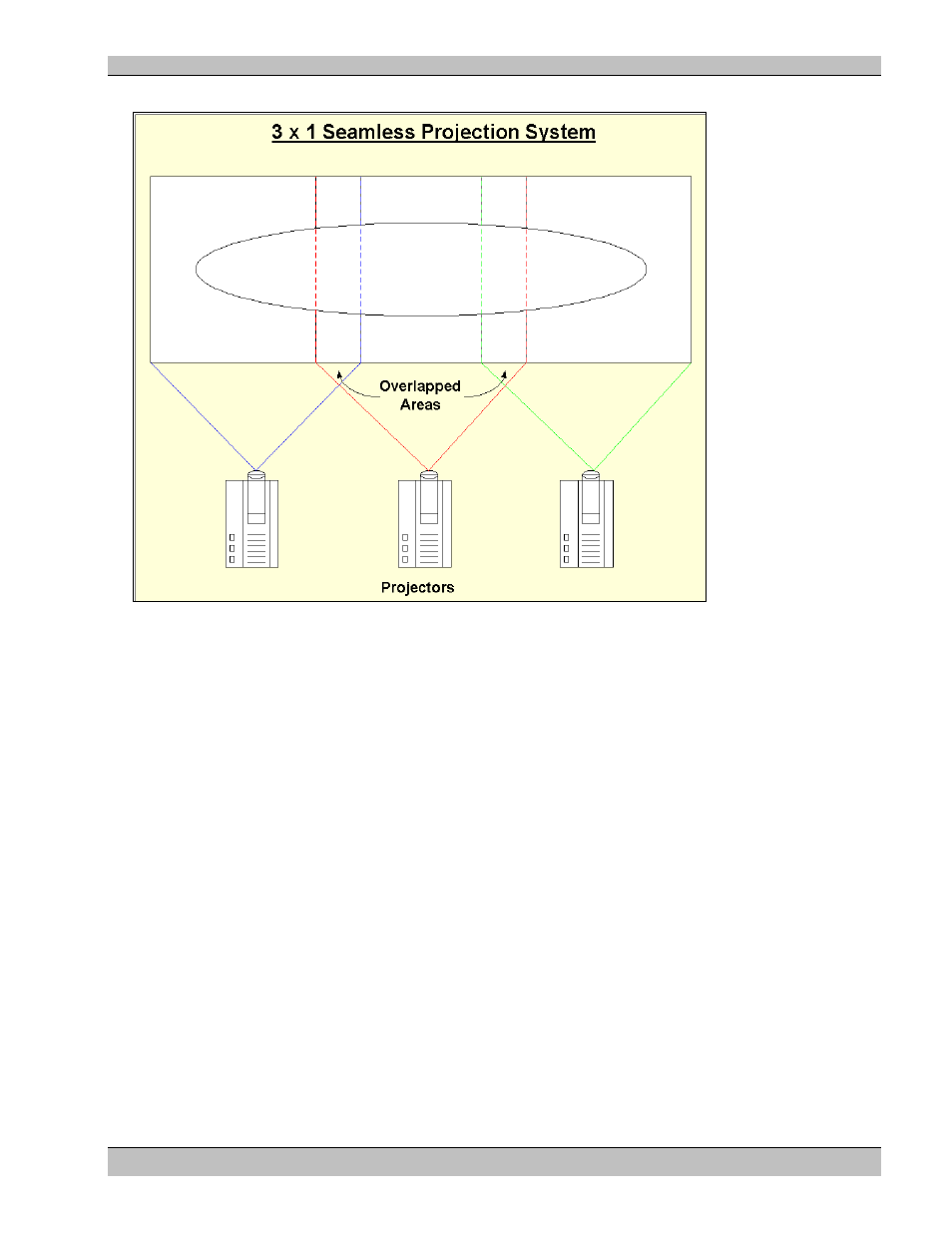

The Electrosonic HD Player can be configured to provide luminance and/or chrominance adjustment to the
overlapped section of the image, thus compensating for the increase in brightness in this area of the screen. This
adjustment is termed Soft Edging control, and provides electronic manipulation of the image in both the horizontal
and vertical axis.
Note:
1. Soft Edging is available only on the Secondary analog (HD2) and HDSDI outputs of
the MS9200P HD Player.
2. Soft Edging is not available on the Primary analog output (HD1) of the MS9200P HD
Player.
3. Soft Edging is not available on the HD output of the MS9100P or MS9100D HD Players
4. Best performance with Soft Edging is achieved when using the Y.Pr.Pb mode.
