HD Player

Chapter 2: The Playlist display

Rev. 6.8

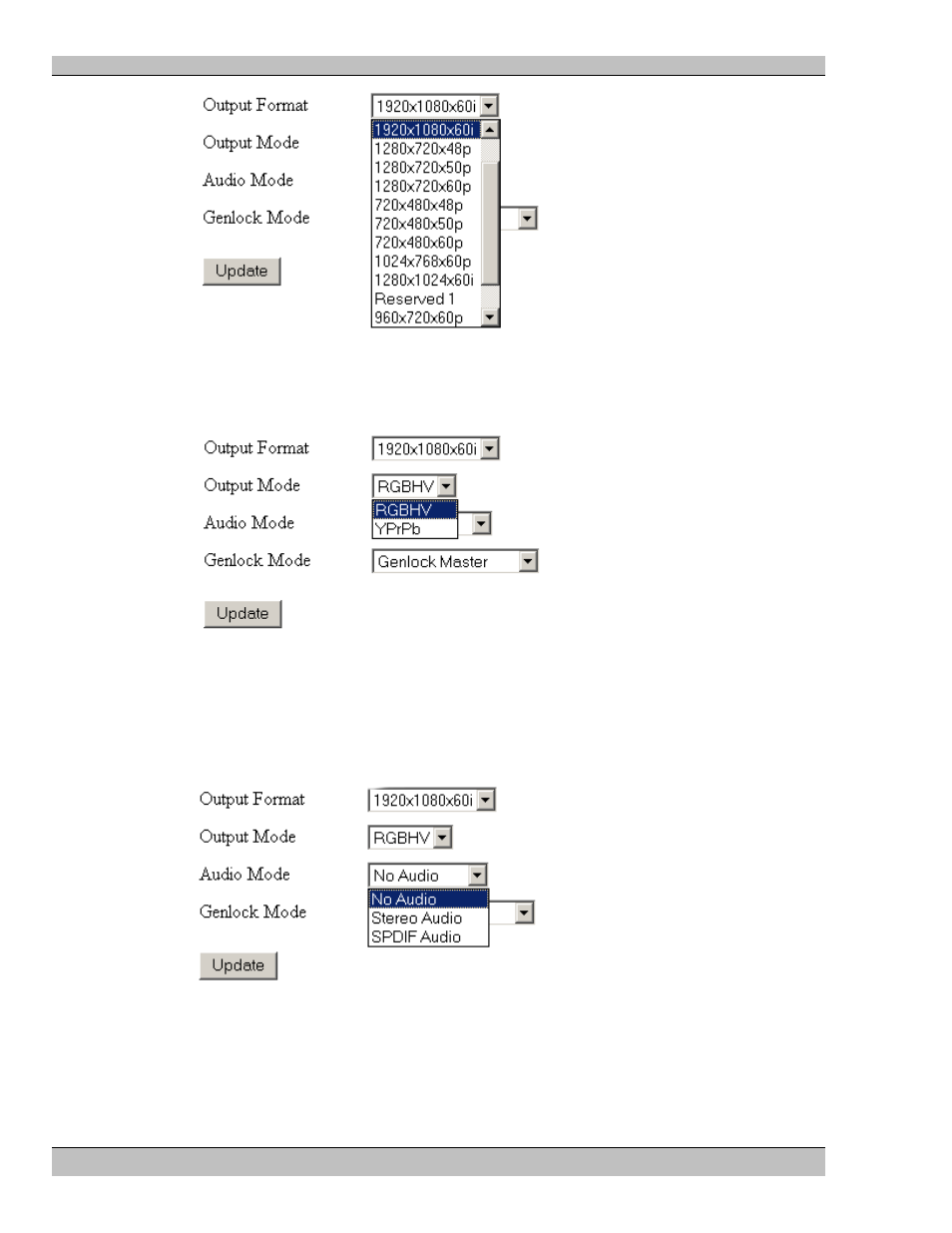

Output Mode

Select video output mode from the two available:

Audio Mode

Stereo Audio is the default mode. Choose SPDIF Audio for 5.1 surround sound or No Audio if required.

Note: Stereo Audio makes use of the player’s sound card audio output. 5.1 surround sound is available at the
SPDIF connector. (Refer to the Figure 3)

Genlock Mode

Chose your video synchronization option from the drop down menu.

Note: ES-Gen is not available on the MS9100D model.
