The MS9100D
Selected MS9100D features:
• Analog HD video outputs
• SPDIF 5.1 audio output
• Playback using Windows™ MediaPlayer
• Desktop installation
• Composite Black & Burst synchronization
• Optional Electrosonic MS9000 HD Player Control Application software

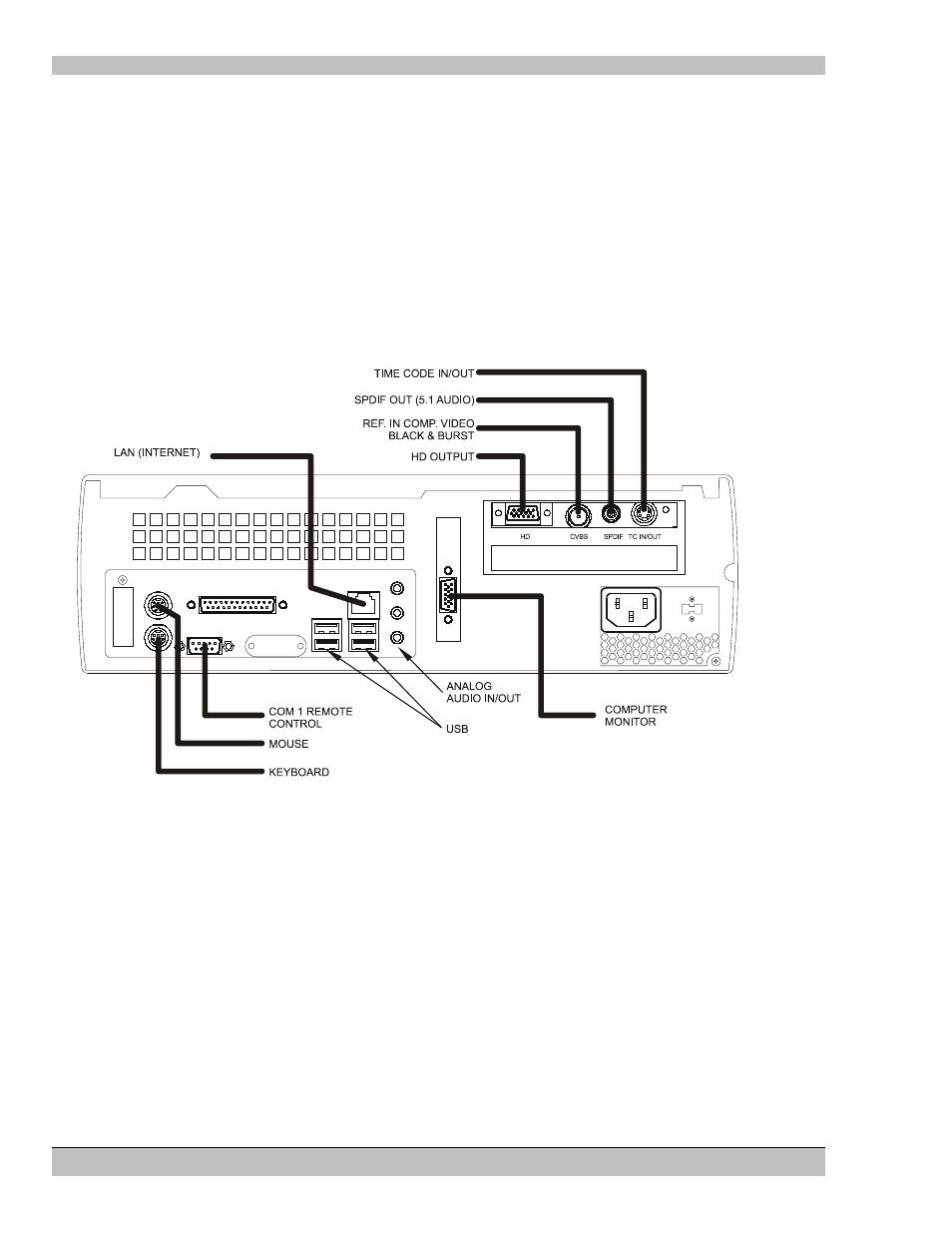

Figure 4.
MS9100D, Analog HD Player, Desktop model connections
WARNING: Ensure that the AC Input Power Supply Switch located on the back of the 9100D HD Player is set to
the same voltage as the local supply.
An incorrectly set switch may result in damage to the unit upon power-up.
• Locate the red AC Power Input Voltage Selector Switch (refer to the following illustration).
• By means of a small screwdriver adjust the switch left/right until either 115 or 230 shows in the opening.
