Chapter 4: The Log / File Information Windows
The Information display at the bottom of the GUI is divided into two (left and right) main segments:
• The Log Window on the left, and
• The File Information Window on the right
• Additionally, the Status Bar is located at the very bottom left of the display
These windows display various pieces of useful information about the HD Player while it is running. The
information shown can be used to “debug” show control programming problems, check communications protocols
and generally monitor the condition of the HD Player.

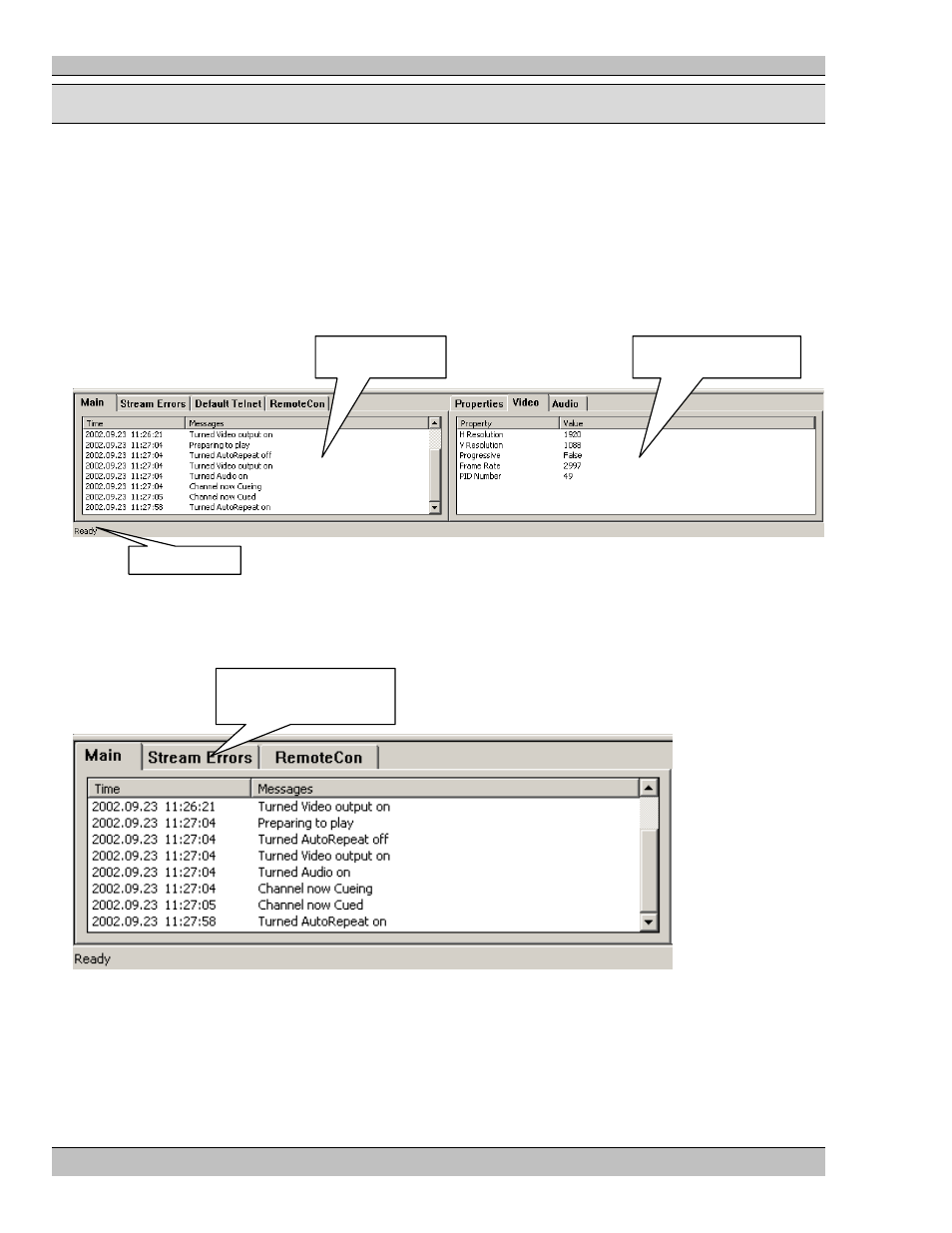

The Log display is arranged as a set of “pages” each listing related information. The active tab, i.e. the one whose
entries are being displayed, can be selected by clicking over it’s name, as illustrated in the following diagram.
The Log Window
The Log Window displays various Log Tabs:
• Main - Shows details about the unit’s status, such as when files are cued and played, when the audio or
video is muted etc.
Click here to select the
Stream Errors Tab
Log Window File Info. Window
Status Bar
