HD Player Chapter 13: Video Outputs
86 Rev. 6.8
Chapter 13: Video Outputs
The Electrosonic HD Player has three video output options (see below), depending upon the Color Space selected
and which type of HD Player is in use.
In the RGB color space two analog outputs are available simultaneously with the MS9200P. A single analog
output is available in the case of the MS9100P and the MS9100D.
In the YPrPb color space the HDSDI output is also available (MS9200P only).
The PCI HD Decoder Card Interfaces

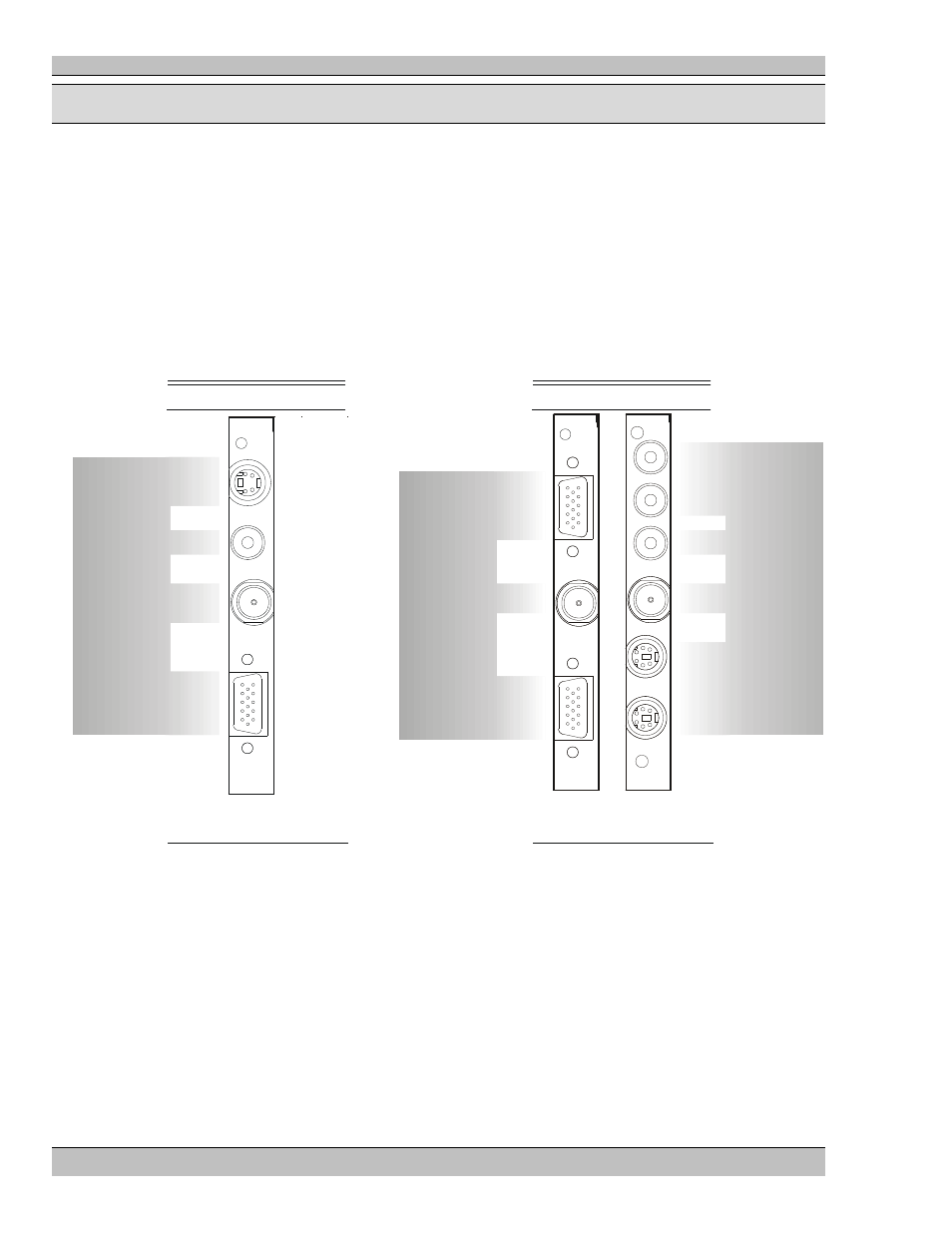

The following figure shows the PCI Decoder card interface:
DECODER
CARD,
DIGITAL
(MS9200) EXTENDER
CARD,
(MS9200)
HD-1
HDSDI
HD-2
OUT
IN
ES GENLOCK
CVBS
SPDIF
IN
OUT
TIMECODE
DECODER
CARD,
ANALOG
(MS9100)
TIME CODE
IN/OUT
HD
CVBS
SPDIF
Primary Output: MS9200P/MS9100P/MS9100D
This output provides an analog RGBHV or YPrPb output on a 15pin D type connector.
The output signal levels are:
• 1V p–p RGB and YPrPb
• 3.3V p-p HSync and Vsync
Secondary Output: MS9200P
This output provides an analog RGBHV or YPrPb output on a 15pin D type connector. This output supports the
option of horizontal and vertical Soft Edging.
