HD Player Chapter 7: Soft Edging/Display Overlap
54 Rev. 6.8
Vertical and Horizontal Borders
To define the vertical and/or horizontal borders for Soft Edging:
1. Enable the borders required by selecting the appropriate check box.
2. Enter the amount of overlap. This can be set from 1 to 255 in both horizontal and vertical axes. If both
borders in an axis are used, they must be set identically.

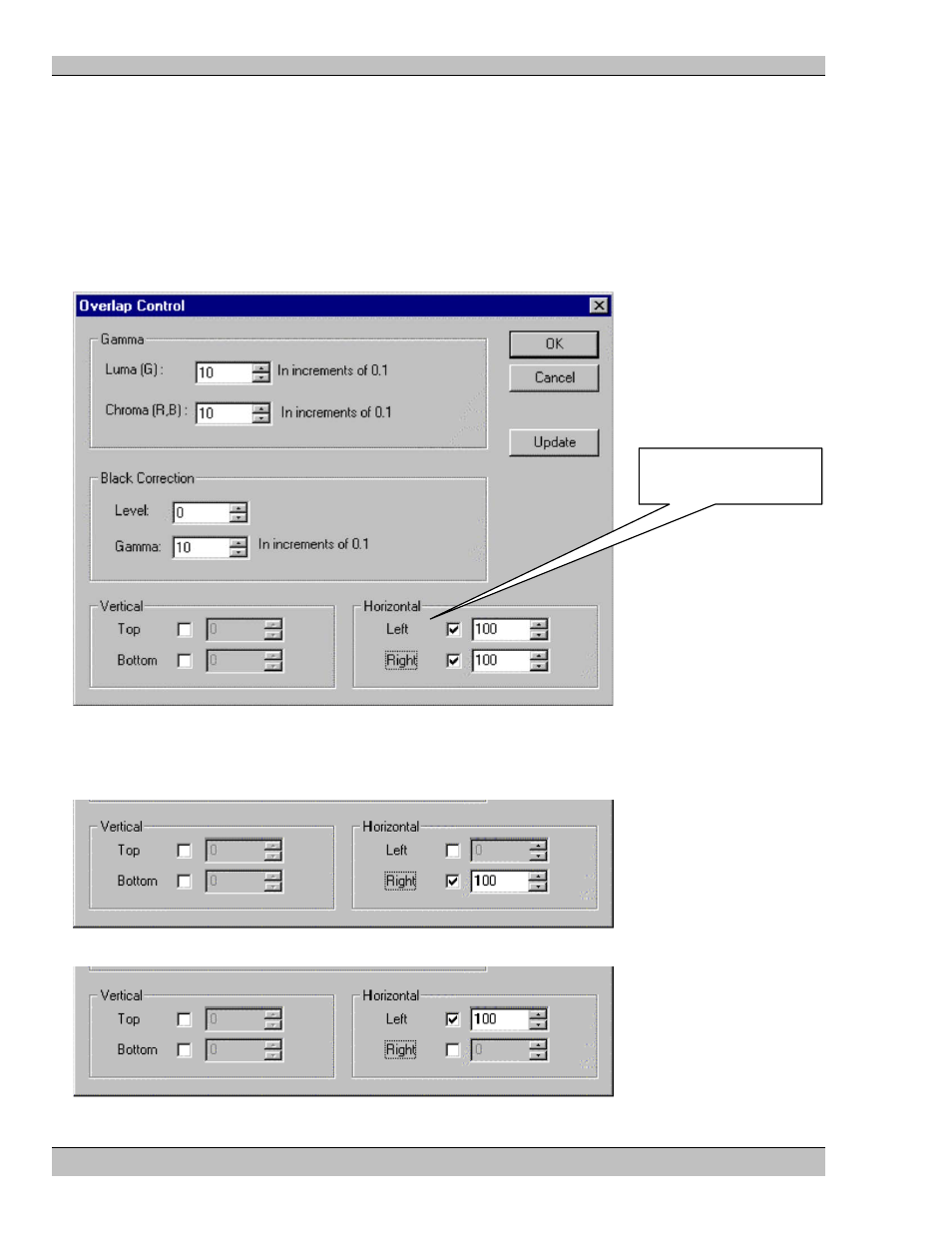

The following example shows settings for the center screen of the 3 x 1 projection system (shown previously) with
a 100 pixel overlap on both left and right edges.
The Overlap Control Dialog for each of the other two projectors is set up identically except:
Set Projector #1 (Left), as shown below.
Set Projector #3 (Right), as shown below.
Overlap set to 100 for
both left and right edges
