HD Player Chapter 8: Genlock
59 Rev. 6.8
Chapter 8: Genlock
The Electrosonic HD Player can be configured to operate in a number of different Genlock configurations.
Genlock provides a method for ensuring that multiple HD Players can operate with synchronous timing on each of
their outputs. Also, the playback timing of each of the Players in a genlocked system will ensure that the first
frame of video is decoded across multiple Players at the same time.
Note:
MS9200P – ES-Gen Genlock and/or Composite Video Black & Burst sync available
MS9100P – Composite Video Black & Burst sync available only
MS9100D – Composite Video Black & Burst sync available with optional MS9000 HD Player software
Genlock Mode
The Player can operate in one of three genlock modes chosen from the Genlock Mode drop down menu in the
Channel Properties dialog box.

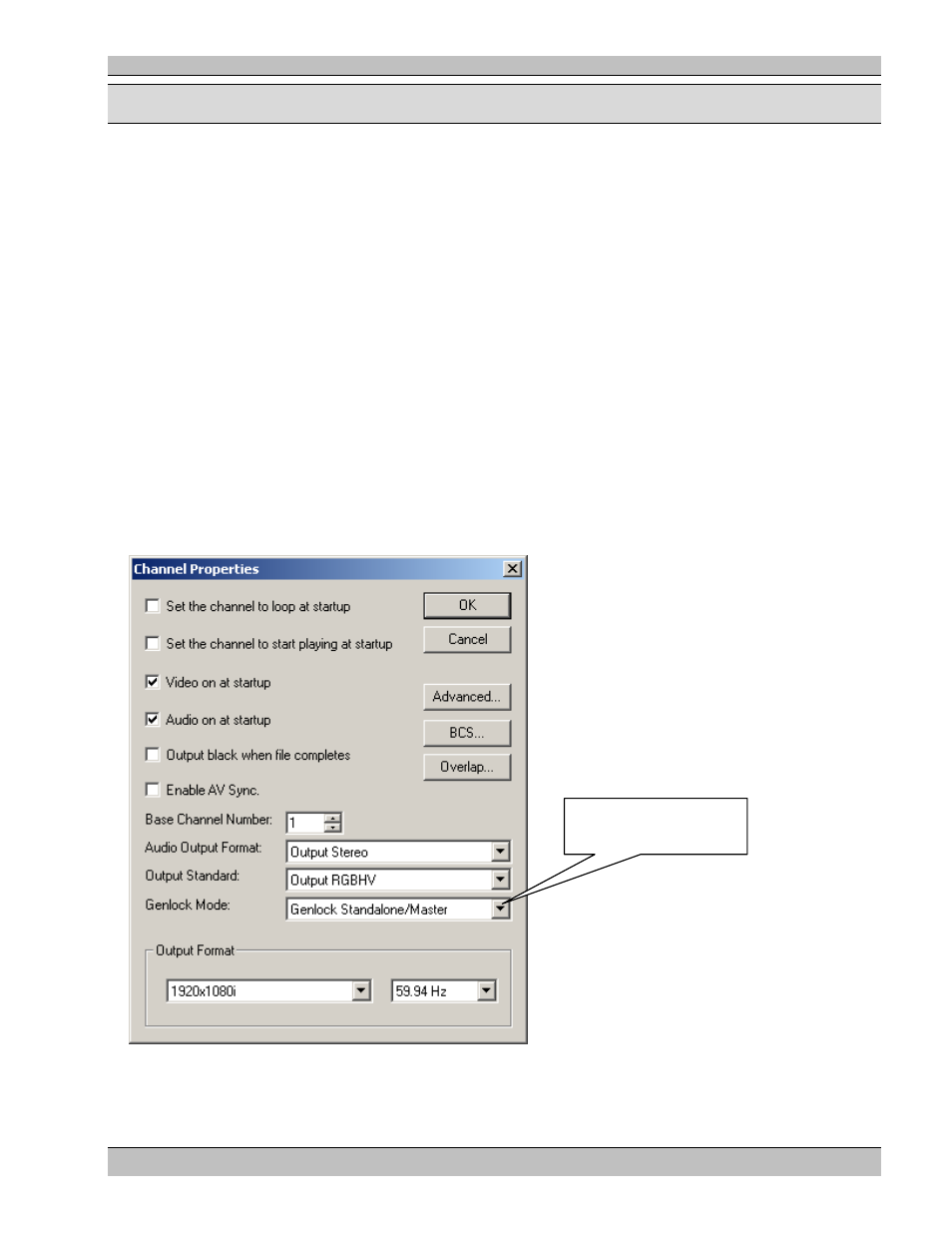

Within the Channel Properties Dialog window click on the arrow button indicated below:
The Genlock Mode menu shown below will appear:
Click here to select
Genlock Mode.
