Appendix A: Control Protocol IMAGESTAR HD USER GUIDE
Page 74 I460GB issue 4

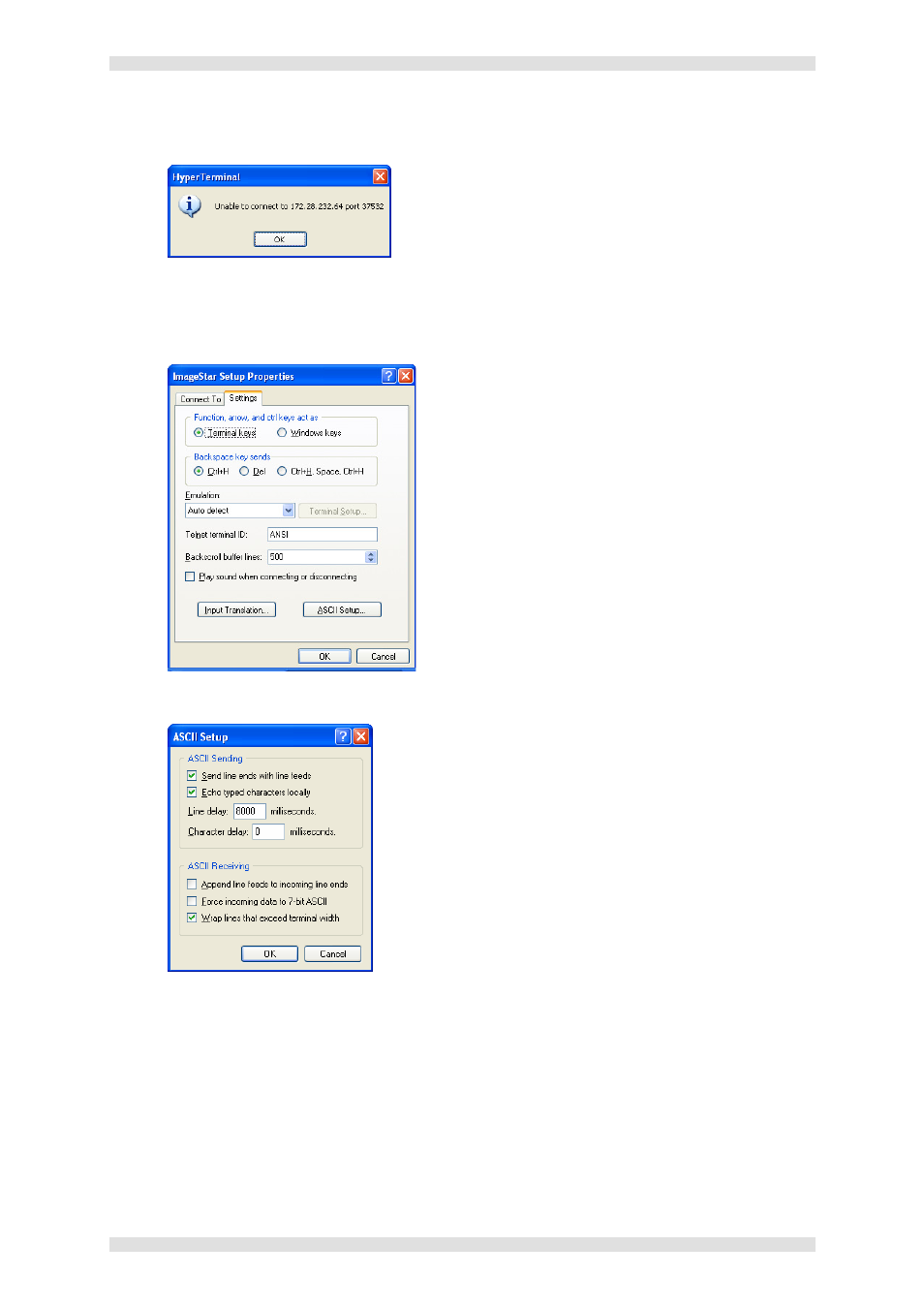

If the connection fails for any reason the status bar will show ‘Disconnected’ and a warning
message will appear, e.g.:
If this occurs check the cable connections and that your PC/laptop is on the same subnet as
ImageStar HD.
From the File menu, choose Properties to open the following dialog:
Select the Settings tab and click the ASCII Setup button.
Ensure that both Send line ends with line feeds and Echo typed characters locally are
selected.
Type in a Line Delay of 8000 milliseconds.
This will create an 8 second delay between each command in your command file. This delay
is necessary to allow ImageStar HD enough time to process and act on each command.
Click OK on all open dialog boxes.
From the File menu choose Save.
