Setting-up the Display Outputs

Setting the Output Mode

Setting the Output Mode determines the signal type that the ImageStar HD outputs to the display
devices. It also defines the size/resolution of the screen icons in the Wall Layout window.

Click on the

Wall Layout window to highlight it.

Click the

Layout menu and choose Set Resolution.

The

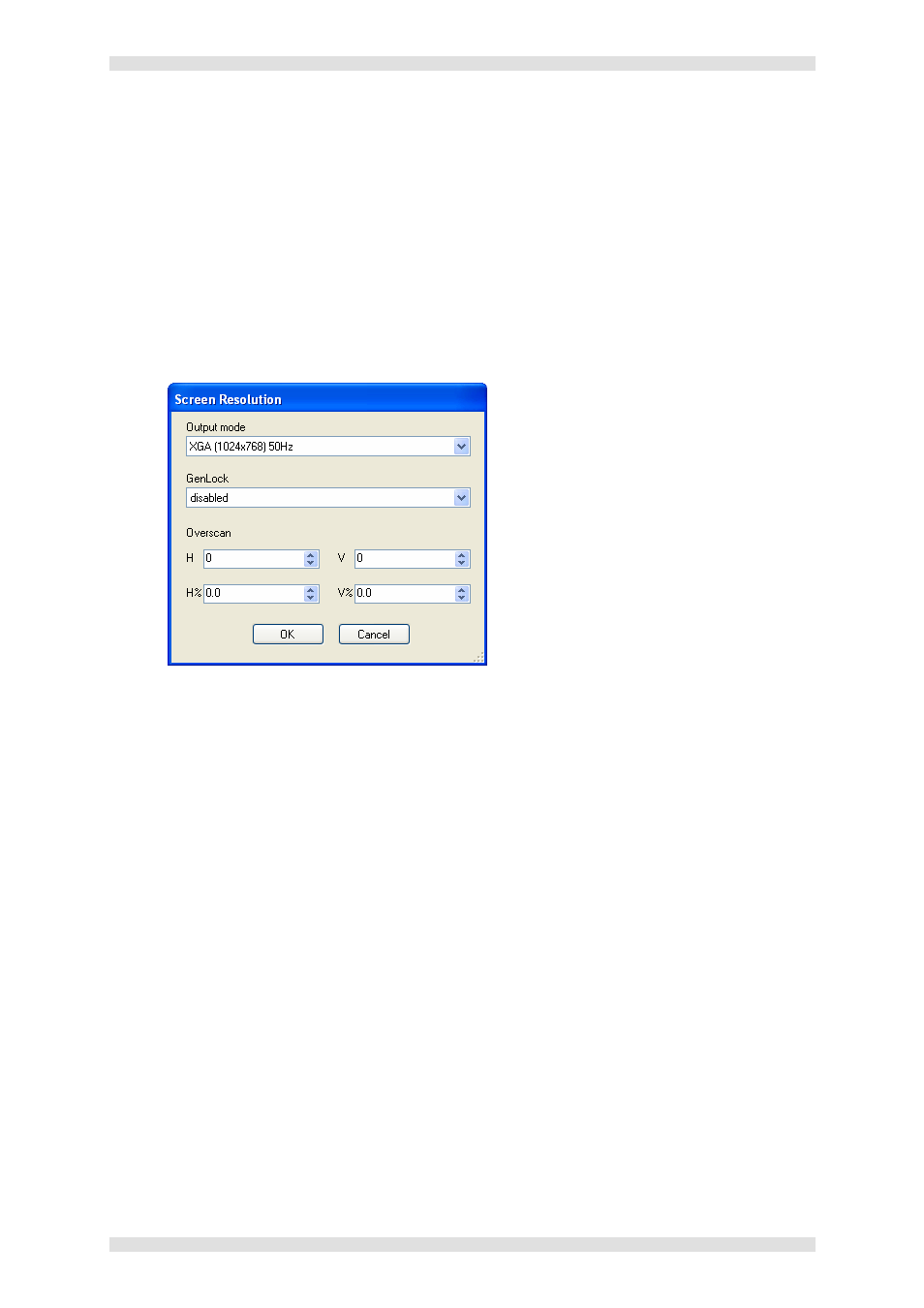

Screen Resolution dialog will appear:

Select the appropriate

Output mode for driving your display devices.

If required, choose

GenLock mode and specify any Overscan settings.

HINT: Overscan settings can also be adjusted interactively (see page 60).

Click the

OK button.
