Assign Screens to a Clip
Each screen in the Wall Layout needs to be assigned to a clip, to allow it to display the corresponding
portion of the clip.
Click on the Wall Layout window.
Click the button to select the Screen Layer.

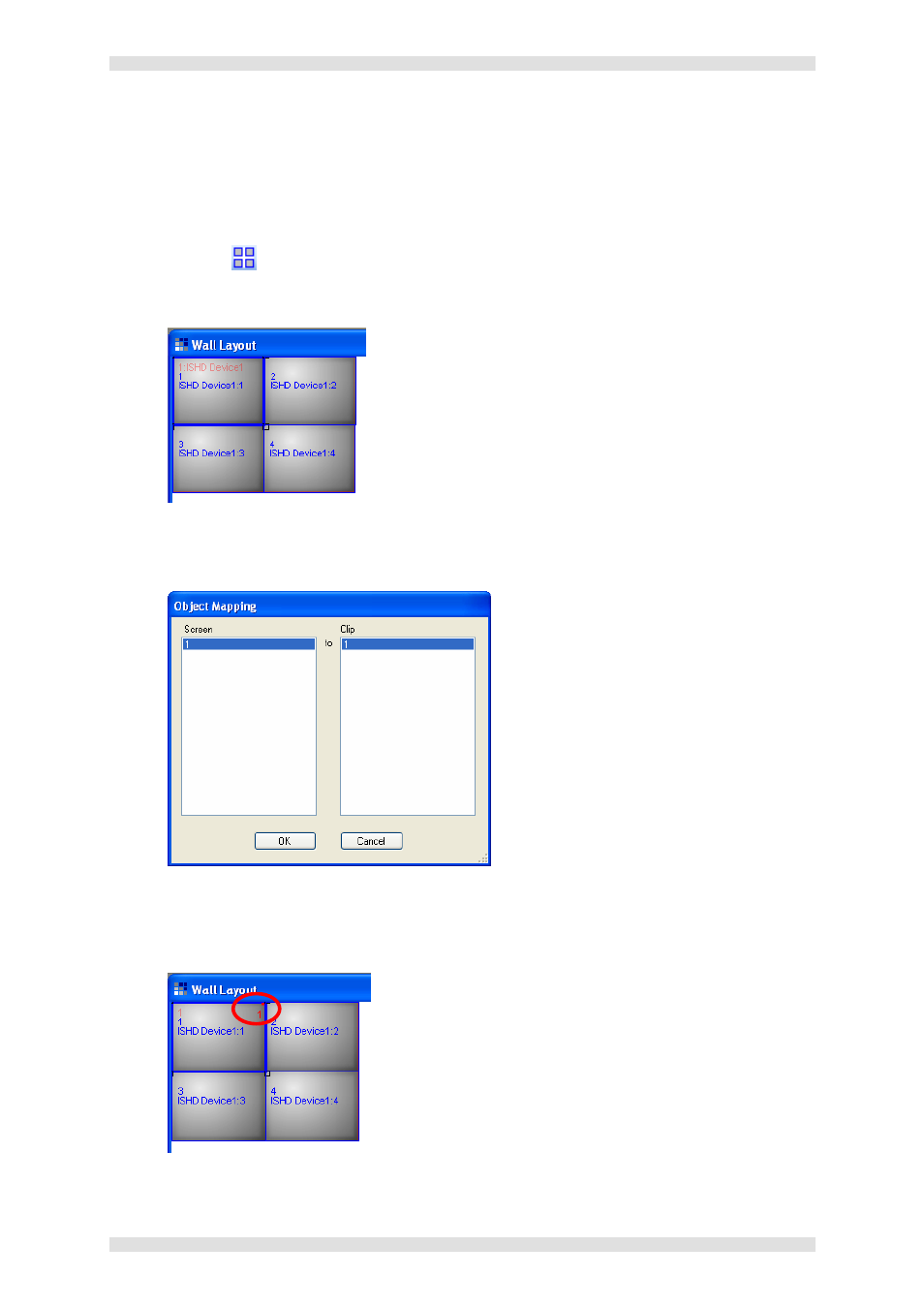

Click on a screen to highlight it (thick blue outline):
Click the Layout menu and choose Assign screen to clip.
The Object Mapping dialog will appear:
Click the OK button.
The Wall Layout will now show the screen assigned to the clip:
